HIKVISION 1200KI User Manual

2 How to use 485 control back-end GUI4.0
© Hikvision Digital Technology Co., Ltd. All Rights Reserved.

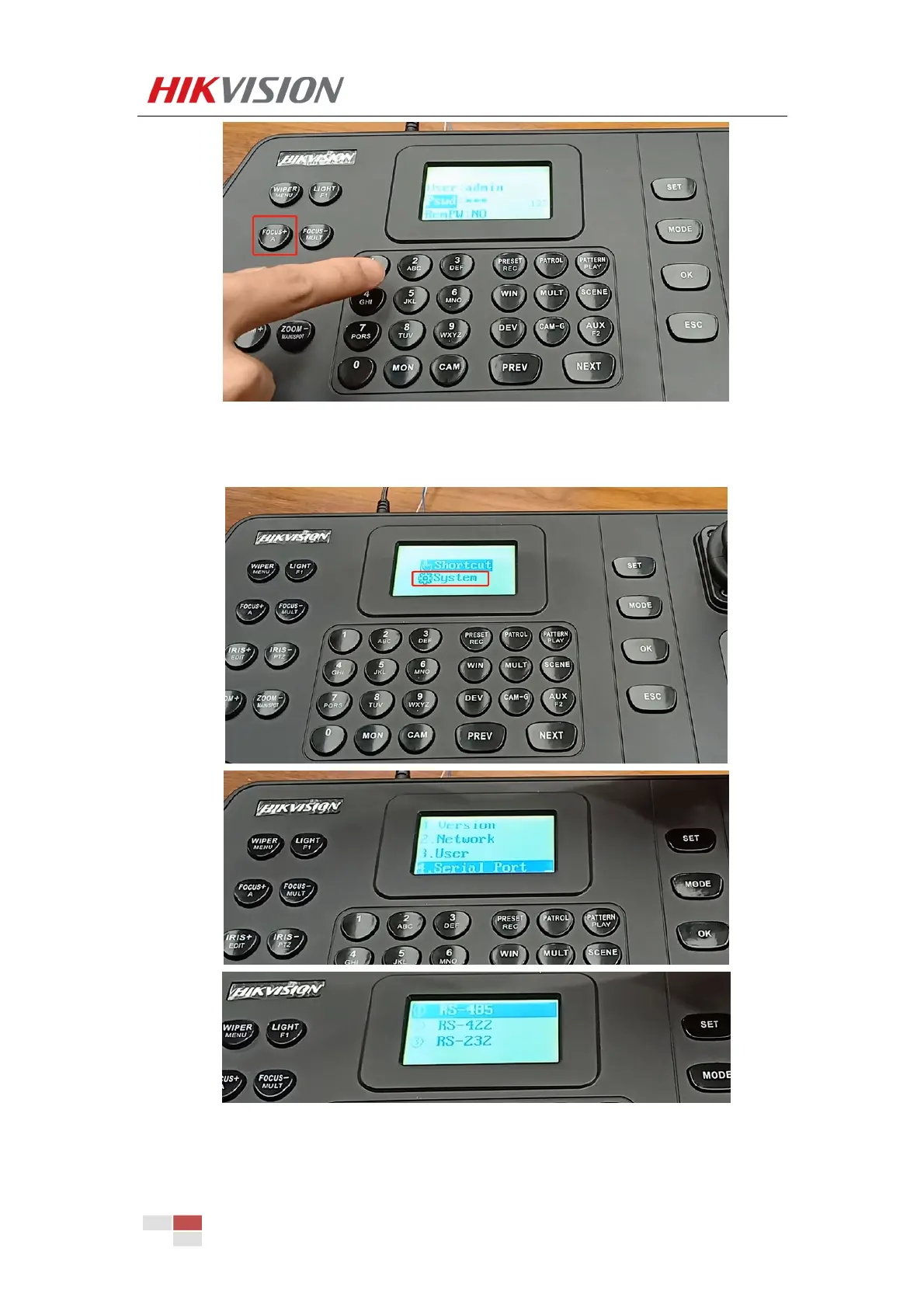

4. Go to keyboard system menu, 4.Serial Port, ① RS-485 to configure keyboard 485
parameter
485 parameters of backend KB interface are fixed, so you always need to configure Baud
Rate 9600, Bit Rate 8, Stop Bit 1, and Parity None, click OK button to save the settings

HIKVISION 1200KI Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Working Humidity	10% to 90%
Category	NVR
Channels	16
Network Interface	1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
USB Interface	USB 2.0
HDMI Output	1 HDMI output
VGA Output	1 VGA output
Audio Output	1 RCA audio output
Two-Way Audio	Yes
Decoding Format	H.265/H.264
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Type	16 PoE 4K NVR
