HIKVISION 1200KI User Manual

3 How to use 485 control back-end GUI4.0
© Hikvision Digital Technology Co., Ltd. All Rights Reserved.

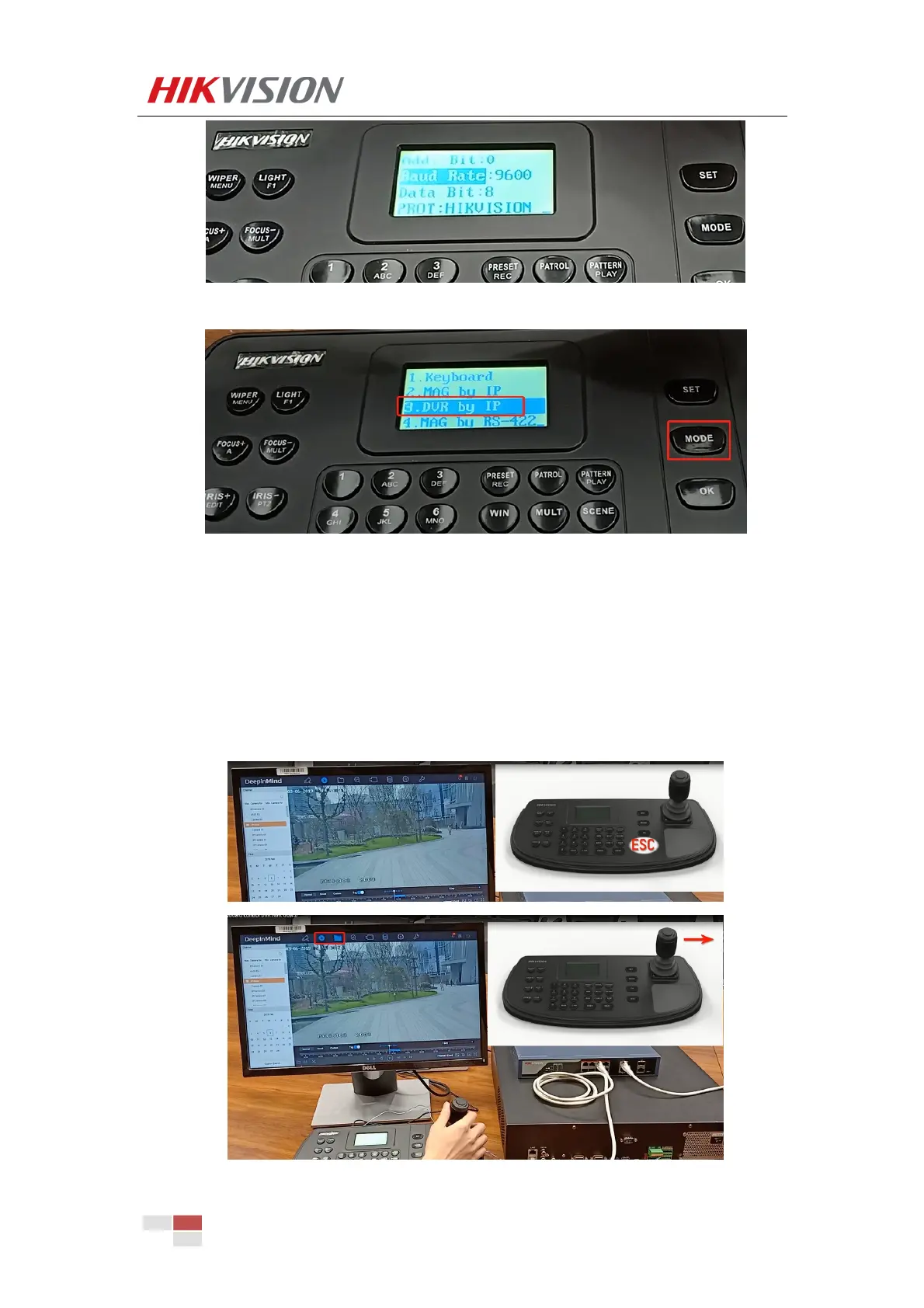

5. Press MODE button, enter 3. DVR by IP Mode
6. Click Num (Dev No you settled on backend) button + DEV button to select device you want
to control. Till this step, you can gain control over backend and there will be response on
GUI4.0 when you operate keyboard
7. There are several layers defined on backend GUI4.0, you can press ESC button to quit to
top menu (sometimes you need to press ESC for several times, you can move joystick to
see if device’s under top menu, there will be blue icon when you push the stick)

HIKVISION 1200KI Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Working Humidity	10% to 90%
Category	NVR
Channels	16
Network Interface	1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
USB Interface	USB 2.0
HDMI Output	1 HDMI output
VGA Output	1 VGA output
Audio Output	1 RCA audio output
Two-Way Audio	Yes
Decoding Format	H.265/H.264
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Type	16 PoE 4K NVR
