User Manual of HD-TVI Speed Dome
© Hikvision
42
1#
6#
15#
32#
Controller

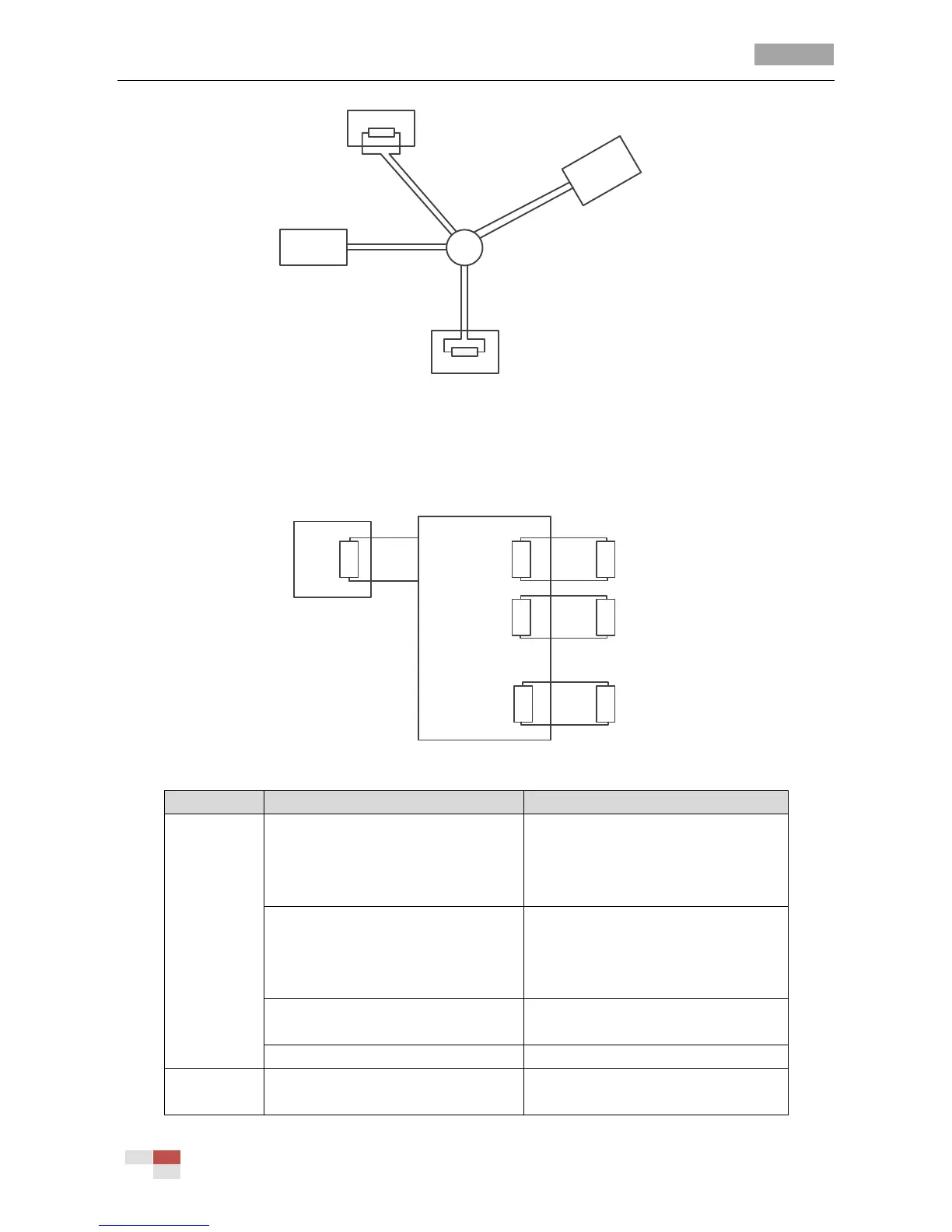

Figure A-4 Star Shape Connection
For such case, the best way is adding a RS485 distributor. This product can effectively change the
star-shape connection to which satisfies the requirement of RS485 industry standard, in order to
avoid those problems and improve the communication reliability. Show as figure 5.
A+
B-
485 Distributor
120Ω
1#
2#
16#
120Ω
120Ω
Figure A-5 RS485 Distributor
Troubleshooting of RS485 communication
Problem
Possible Reasons
To Solve the Problem
The speed
dome does
the
self-test
action but
cannot be
controlled
remotely.
1. The address or baudrate of the
speed dome does not match with
those of remote control device.
1. Adjust the address and
baudrate of the remote control
device to match with those of the
speed dome.
2. The wire RS485+ connects to
the interface RS485- and wire
RS485- connects to the interface
RS485+.
2. Connect the wire RS485+ to the
interface RS485+ and wire RS485-
to the interface RS485-.
3. The RS485 wire is
disconnected.
3. Reconnect the RS485 wire
tightly.
4. RS485 wire is broken.
4. Change a RS485 wire.
The speed
dome can
1. The connection is loose.
1. Reconnect the RS485 wire
tightly.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-2AE7230TI-A and is the answer not in the manual?

HIKVISION DS-2AE7230TI-A Specifications

General IconGeneral
TypeCCTV security camera
PTZ controlYes
Languages supportCHI (SIMPL), ENG
Number of languages2
Placement supportedOutdoor
Connectivity technologyWired
Maximum operating distance120 m
Pan range0 - 360 °
Pan speed240 °/sec
White balanceATW, Auto, Indoor, Manual, Outdoor
Tilt angle range-15 - 90 °
Camera shutter speedPAL: 1-1/10000s, NTSC: 1-1/10000s s
Minimum illumination0 lx
Sensor typeCMOS
Optical sensor size1/3 \
Effective sensor resolution1920 pixels
InterfaceBNC
AC input voltage24 V
Power consumption (max)30 W
Power over Ethernet (PoE)No
Form factorDome
Mounting typeDesk/Wall
Product colorWhite
International Protection (IP) codeIP66
Maximum resolution1920 x 1080 pixels
Supported video modes1080p
Analog signal format systemNTSC, PAL
Signal-to-Noise Ratio (SNR)50 dB
Digital zoom16 x
Optical zoom30 x
Focal length range4 - 120 mm
Maximum aperture number4.4
Number of cameras1
Operating temperature (T-T)-30 - 65 °C
Weight and Dimensions IconWeight and Dimensions
Height353.4 mm
Weight4500 g
Diameter220 mm
