HD-TVI Speed Dome DS-2AE7232TI-A User Manual
UM THD DS-2AE7232T-x 020519NA 15

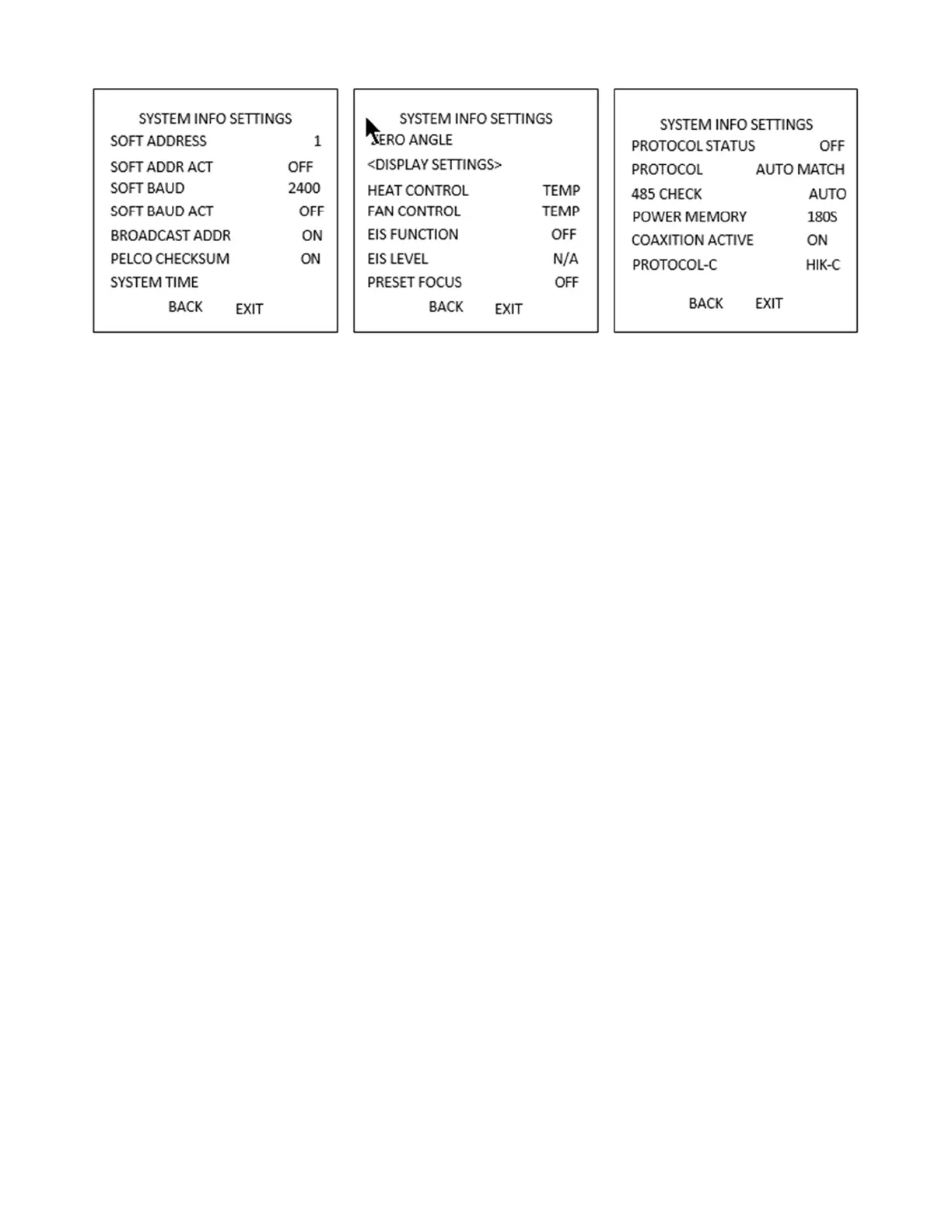

Figure 5, System Information Settings
NOTE: You can click the left and right direction buttons in the PTZ control panel via the encoder
Web browser to enter the next page and return to the previous page of the submenu if more
than one page is available.
Dome Address Settings
To Set the Soft Address of the Speed Dome
If SET SOFT ADDR ACT is set to ON, the soft address is the valid address for connecting the speed dome.
The selectable soft address ranges from 1 to 255.
If SET SOFT ADDR ACT is set to OFF, the hard address set by the DIP switch is the valid speed dome address.
NOTES:
• Before you set the soft address of the speed dome, you need to confirm that it is within the
control range of the control device (e.g., the DVR).
• After you enable/disable the soft address, the speed dome will reboot automatically to activate
the settings.
To Set the Broadcast Address of the Speed Dome
When the BROADCAST ADDR is set to ON, the control device with address 0 is capable of controlling all
domes connected to it.
Soft Baud Rate Settings
If the SOFT BAUD is set to ON, the soft baud rate is the valid baud rate for the speed dome, with 2400, 4800,
9600, and 19200 selectable.
If the SOFT BAUD is set to OFF, the baud rate is set by the DIP switch.
NOTE: After you enable/disable the soft baud rate, the speed dome will reboot automatically to
activate the settings.
