1. Move the cursor to enter the privacy mask configuration submenu: MAIN MENUS > DOME SETTINGS >
PRIVACY

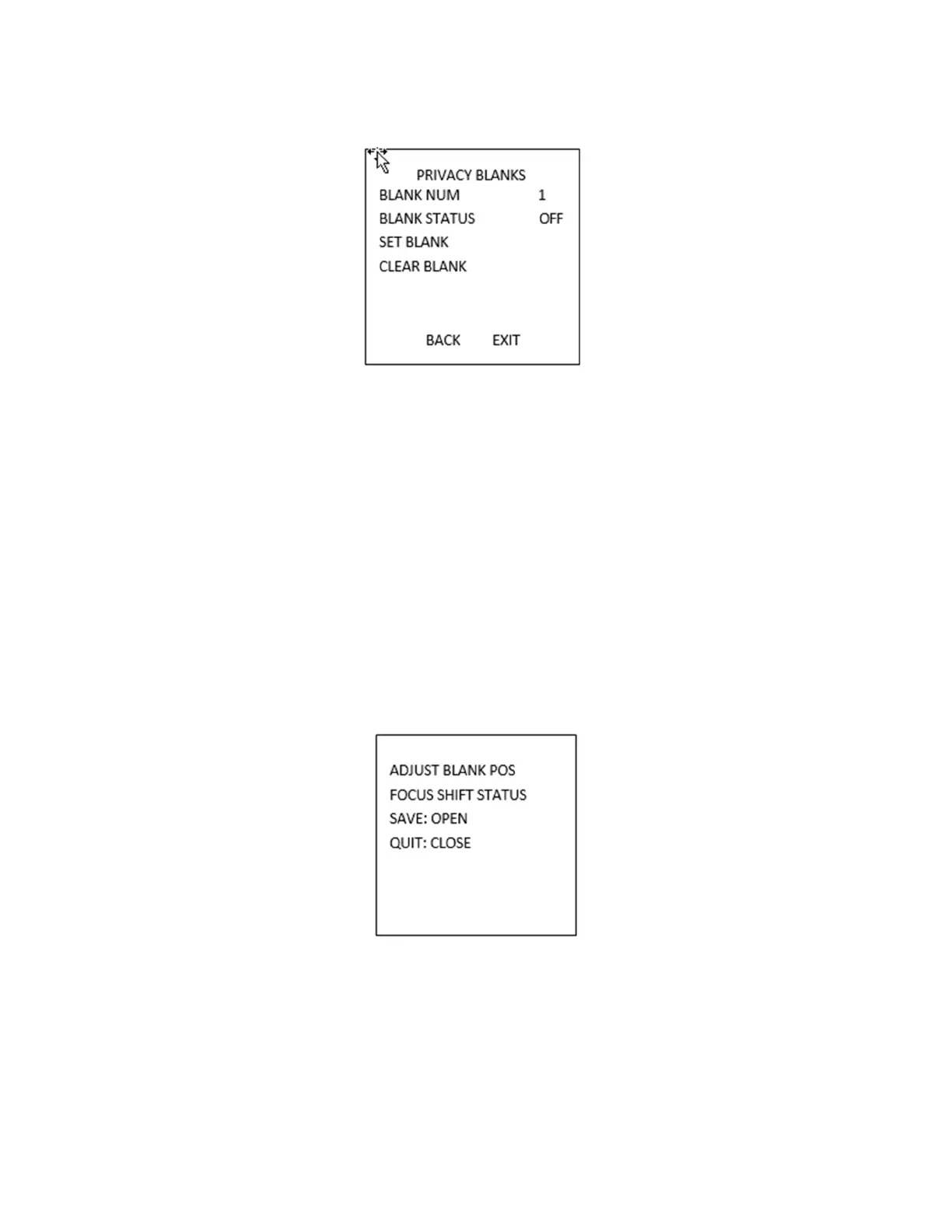

Figure 9, Privacy Blank Configuration Menu
2. Choose the privacy blank number:
A. Move the cursor to BLANK NUM. and click IRIS+ to enter the editing mode.
B. Click the up and down direction buttons to select a mask number for configuration.
C. Click IRIS+ again to confirm and exit the editing mode.
NOTE: The configurable privacy blank number varies by camera model.
3. Configure the position and size of the privacy blank.
A. Move the cursor to SET BLANK and click the IRIS+ button to enter editing mode as shown in the
following figure. You can see the privacy blank on the live window.
Figure 10, Set the Privacy Mask
B. You can see ADJUST BLANK POS message on the screen. Click the direction buttons to adjust the
position of the privacy blank to the designed scene.
C. Click the FOCUS+ button, and you can see ADJUST BLANK SIZE message on the screen. Click the
up/down buttons to increase/decrease the height of the mask and click right/left buttons to
increase/decrease the width of the mask. Click the IRIS+ button to save the settings and return to
the previous menu and you can see the mask turn to gray.

HIKVISION DS-2AE7232TI-A Specifications

General

Sensor type	CMOS
Progressive scan	Yes
Optical sensor size	1/2.8 \
Total megapixels	2 MP
Gain control type	Auto/Manual
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p
Analog signal format system	NTSC, PAL
Form factor	Dome
Mounting type	Ceiling/wall
Product color	White
International Protection (IP) code	IP66
Type	CCTV security camera
PTZ modes	5 Pattern
PTZ protocols	Pelco-P/D
Languages support	English
Number of languages	1
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Digital zoom	16 x
Optical zoom	32 x
Focal length range	4.8 - 153 mm
Maximum aperture number	4.6
Minimum aperture number	1.6
Built-in HDD	No
LED type	IR
Night vision distance	150 m
AC input voltage	24 V
Power source type	AC
Power consumption (max)	40 W
Pan range	0 - 360 °
Pan speed	160 °/sec
Tilt angle range	-15 - 90 °
Camera shutter speed	1/10000 - 1 s
Minimum illumination	0 lx
Interface	BNC
Operating temperature (T-T)	-30 - 65 °C

Weight and Dimensions

Height	353.4 mm
Weight	4500 g
Diameter	220 mm
