HIKVISION DS-2CD2012-I User Manual

User Manual of Network Camera
© Hikvision Digital Technology Co., Ltd. All Rights Reserved.
25

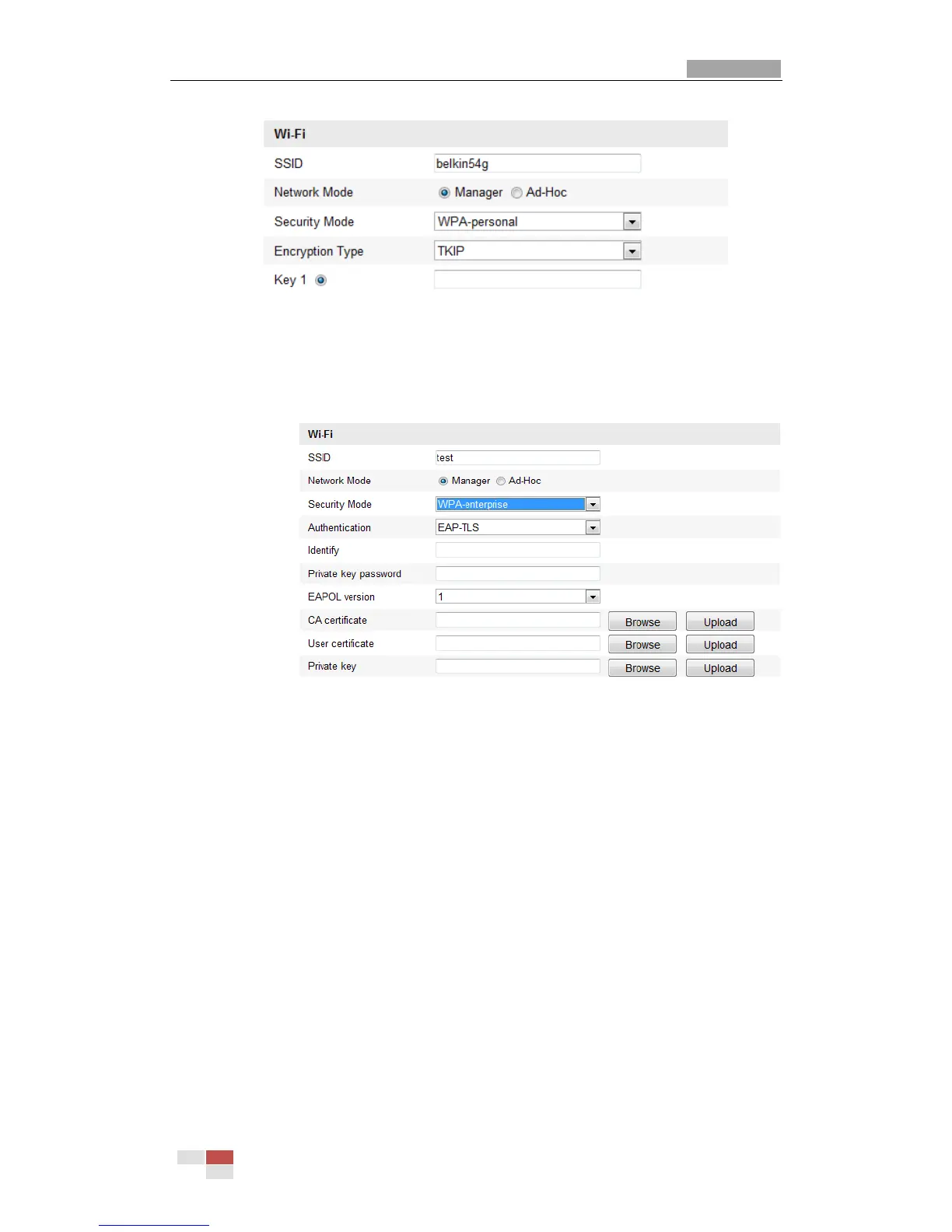

WPA- enterprise and WPA2-enterprise Mode:
Choose the type of client/server authentication being used by the access point;
EAP-TLS or EAP-PEAP.
EAP-TLS
 Identity - Enter the user ID to present to the network.
 Private key password – Enter the password for your user ID.
 EAPOL version - Select the version used (1 or 2) in your access point.
 CA Certificates - Upload a CA certificate to present to the access point for
authentication.
EAP-PEAP:
 User Name - Enter the user name to present to the network
 Password - Enter the password of the network
 PEAP Version - Select the PEAP version used at the access point.
 Label - Select the label used by the access point.
 EAPOL version - Select version (1 or 2) depending on the version used at the
access point
 CA Certificates - Upload a CA certificate to present to the access point for
authentication
www.cctvireland.ie

HIKVISION DS-2CD2012-I Specifications

General

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Form factor	Bullet
Product color	White
International Protection (IP) code	IP66
Total megapixels	1.3 MP
Maximum resolution	1280 x 960 pixels
Supported video modes	-
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	1280 x 720 (HD 720), 1280 x 960, 640 x 480 (VGA), 704 x 576
Camera shutter speed	1/25(1/30) - 1/100000 s
Minimum illumination	0.01 lx
Field of view (FOV) angle	73.1 °
Sensor type	CMOS
Optical sensor size	1/3 \
Lens diameter	4 mm
Focus adjustment	2.0
Password protection type	User
LED type	IR
Night vision distance	30 m
Wi-Fi	No
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 95 %
DC output voltage	+12V
Power source type	PoE
Power consumption (max)	5 W
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Width	139.28 mm
Height	76.9 mm
Weight	500 g
Diameter	60.4 mm
