User Manual of Network Camera
99

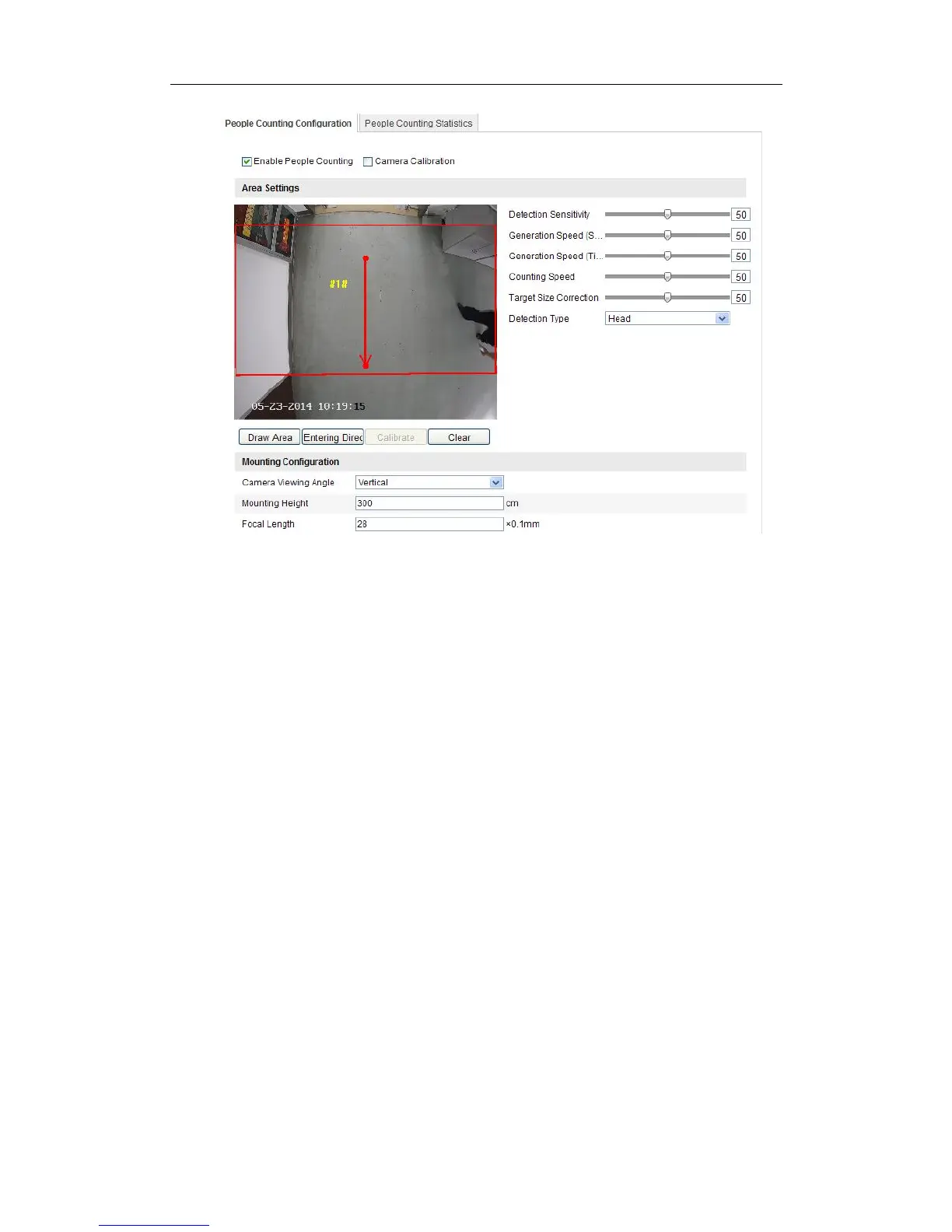

Figure 6-64 People Counting Configuration
2. Select People Counting Configuration tab to set the detailed parameters.
3. Check the checkbox of Enable People Counting to enable the function.
4. Click Draw Area to define the area you want to count the entered people and
left people. Draw area by left click four end-points in the live view window,
and right click to finish the area drawing.
5. Click Entering Direction to draw the entering direction. Adjust the direction
by dragging the two red points on the arrow.
Note:
Click Delete to delete the current drawn area and entering direction.
6. Configure the parameters for drawn area.
Detection Sensitivity [0~100]: It refers to the sensitivity of the camera
recognizing a target. The higher the sensitivity, the easier the camera judges
the head or shoulder as a target. It is recommended you set the sensitivity as
the default value, which is 50.
Generation Speed (Space) [0~100]: The speed of the head or shoulder is
treated as a target. The target will not be recognized even if there is a similar
head or shoulder if you set the value lower. The default value of 50 is
recommended.
