User Manual of Network Camera
89
1. Click Shield Region tab to enter the shield region configuration interface.
2. Click Draw Area. Draw area by left click end-points in the live view window,
and right click to finish the area drawing.
Notes:
● Polygon area with up to 10 sides is supported.
● Click Delete to delete the drawn areas.
● If live view is stopped, there is no way to draw the shield regions.
3. Click Save to save the settings.
Rule
The behavior analysis supports a series of behaviors, including line crossing
detection, intrusion, region entrance, and region exiting, etc.
Note:
Please refer to each chapter for detailed information of each behavior.

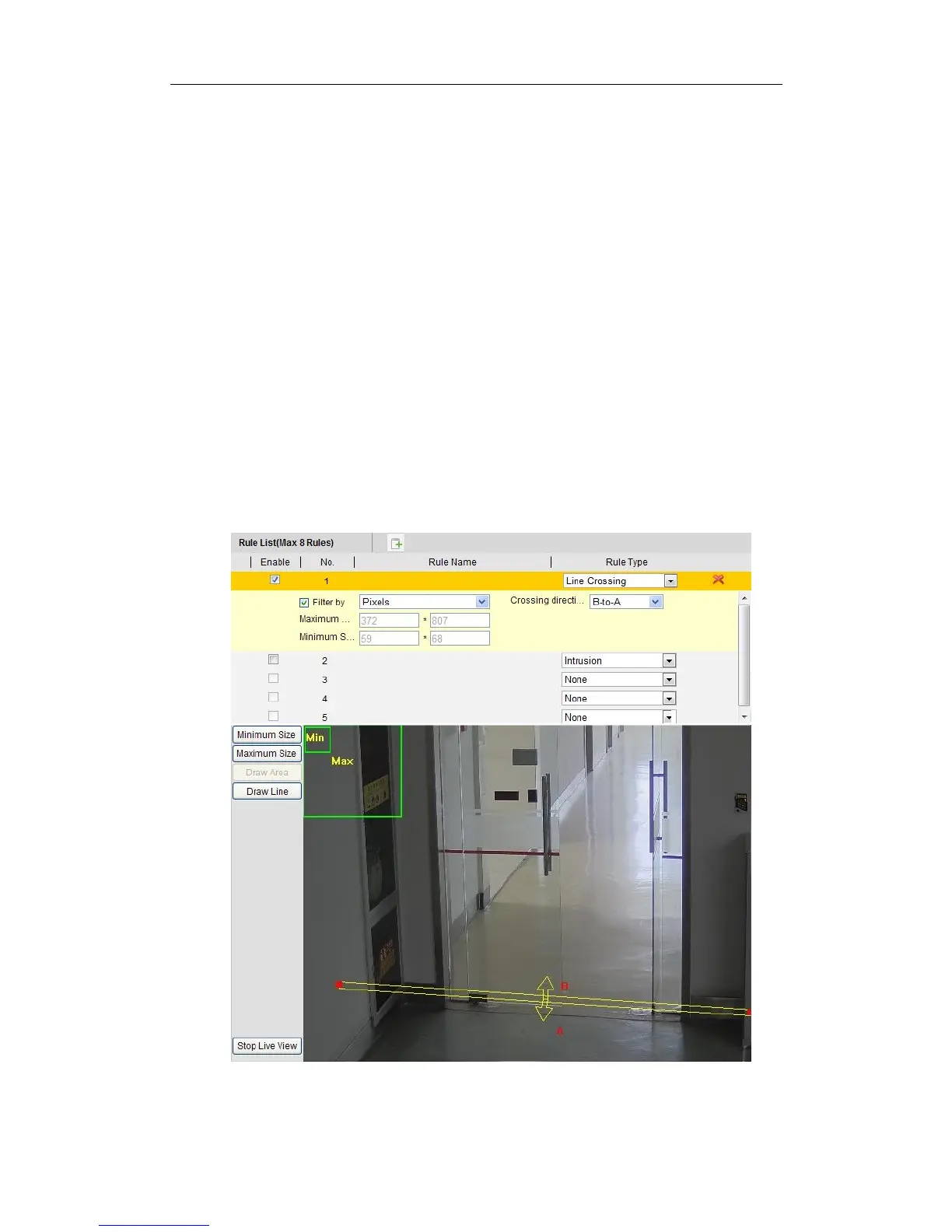

Figure 6-58 Configure the Rule
