Network Camera User Manual
149
Click Picture to enter the picture searching interface. You can search, view, and
download the pictures stored in the local storage or network storage.
Notes:
Make sure HDD, NAS or memory card are properly configured before you process
the picture search.
Make sure the capture schedule is configured. Go to Configuration > Storage >
Schedule Settings > Capture to set the capture schedule.

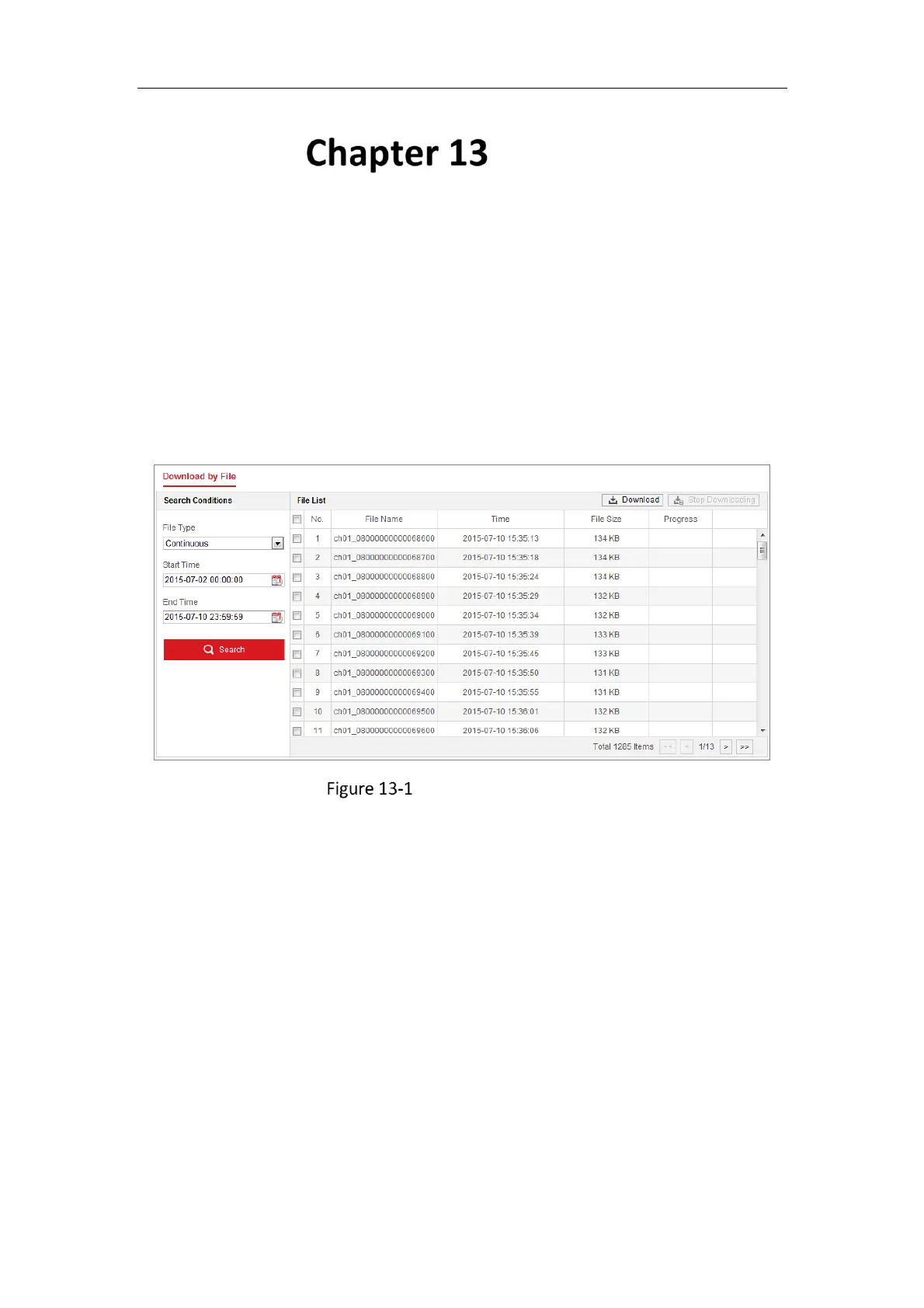

Picture Search Interface
Steps:
1. Select the file type from the dropdown list. Continuous, Motion, Alarm, Motion |
Alarm, Motion & Alarm, Line Crossing, Intrusion Detection, and Scene Change
Detection are selectable.
2. Select the start time and end time.
3. Click Search to search the matched pictures.
4. Check the checkbox of the pictures and then click Download to download the
selected pictures.
Note:
Up to 4000 pictures can be displayed at one time.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-2CD2T26G2-4I and is the answer not in the manual?

HIKVISION DS-2CD2T26G2-4I Specifications

General IconGeneral
ModelDS-2CD2T26G2-4I
IR RangeUp to 30m
Video CompressionH.265+/H.265/H.264+/H.264
Power Supply12 VDC ± 25%, PoE (802.3af)
Ingress ProtectionIP67
Operating Temperature-30 °C to 60 °C (-22 °F to 140 °F)
Operating ConditionsHumidity 95% or less (non-condensing)
TypeNetwork Camera
Sensor Type1/2.8" Progressive Scan CMOS
Max Resolution1920 x 1080
Audio CompressionG.711/G.726
Network Interface1 RJ45 10M/100M Ethernet port
Lens2.8mm / 4mm / 6mm
