HIKVISION DS-2CD883F-E User Manual

Quick Operation Guide of Network Camera
© Hikvision Digital Technology Co., Ltd. All Rights Reserved.
3

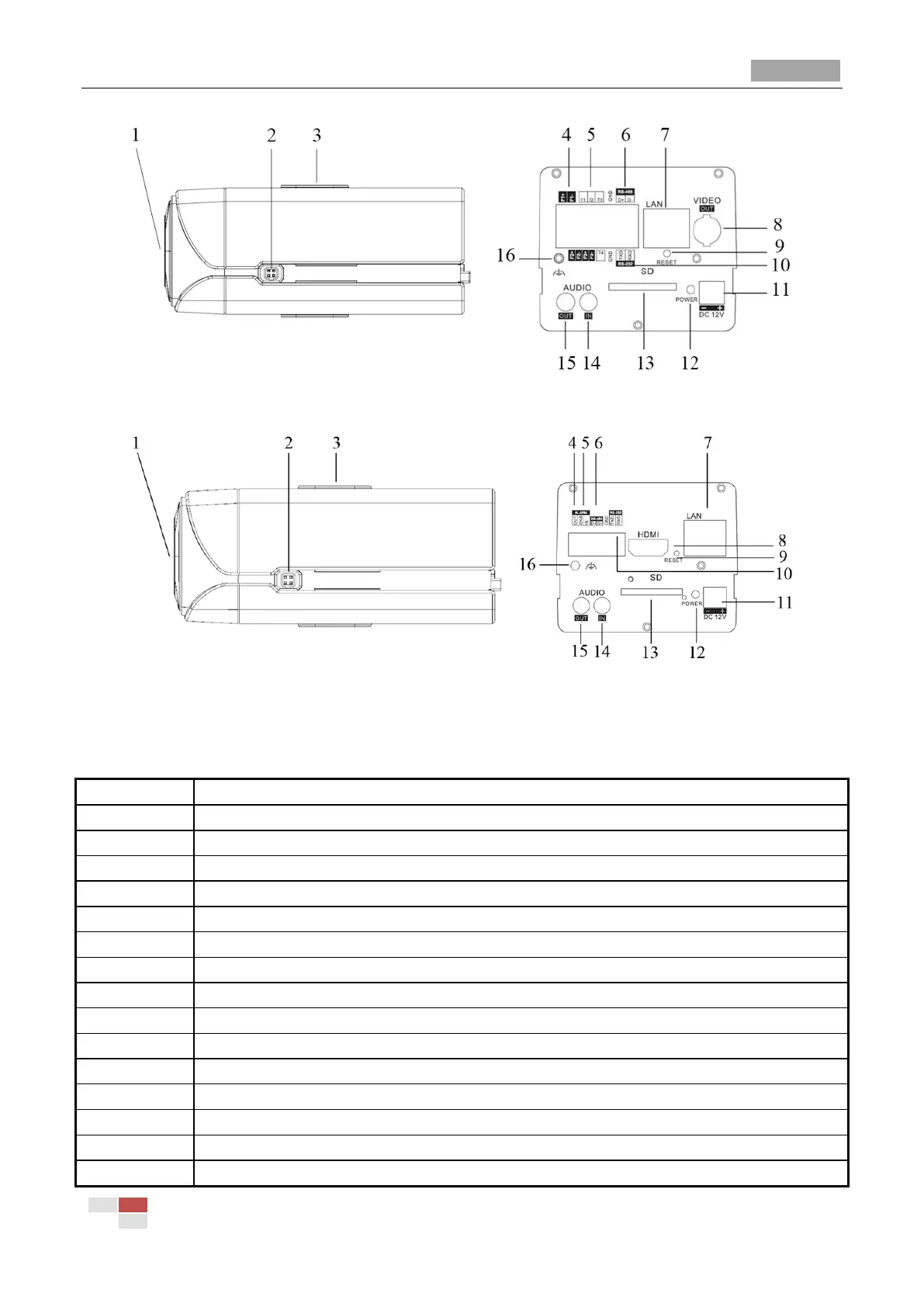

Figure 1-4 Overview
Figure 1-5 Overview
Table 1-3 Description
No.
Description
1
CS Lens mount
2
Auto-iris interface
3
Bracket mounting holes
4
F1+ F1-, F2+ F2- ,F3+ F3-: Alarm output interface
5
T1,T2,T3, T4,GND: Alarm input interface
6
D+, D-: RS-485 interface
7
10M/100M self-adaptive Ethernet interface
8
VIDEO OUT/HDMI: Video output interface
9
RESET: Reset button
10
TXD, RXD, GND: RS-232 interface
11
Power supply interface
12
POWER: Power LED indicator
13
SD: SD card slot
14
AUDIO IN: Audio input interface
15
AUDIO OUT: Audio output interface

HIKVISION DS-2CD883F-E Specifications

General

Brand	HIKVISION
Model	DS-2CD883F-E
Category	Security Camera
Language	English
