Note: You must loosen the lock screw or fixed ring before
adjustment and tighten it when you adjusted it.
2). Rotate the panning table to adjust the panning position of
the camera. The adjustable range is from 0 degree to 360
degrees.
3). Rotate the tilting table to adjust the tilting position of the
camera. The adjustable range is from 0 degree to 75
degrees.
4). Rotate the lens to adjust the azimuth angle of the image.
The adjustable range is from 0 degree to 360 degrees.

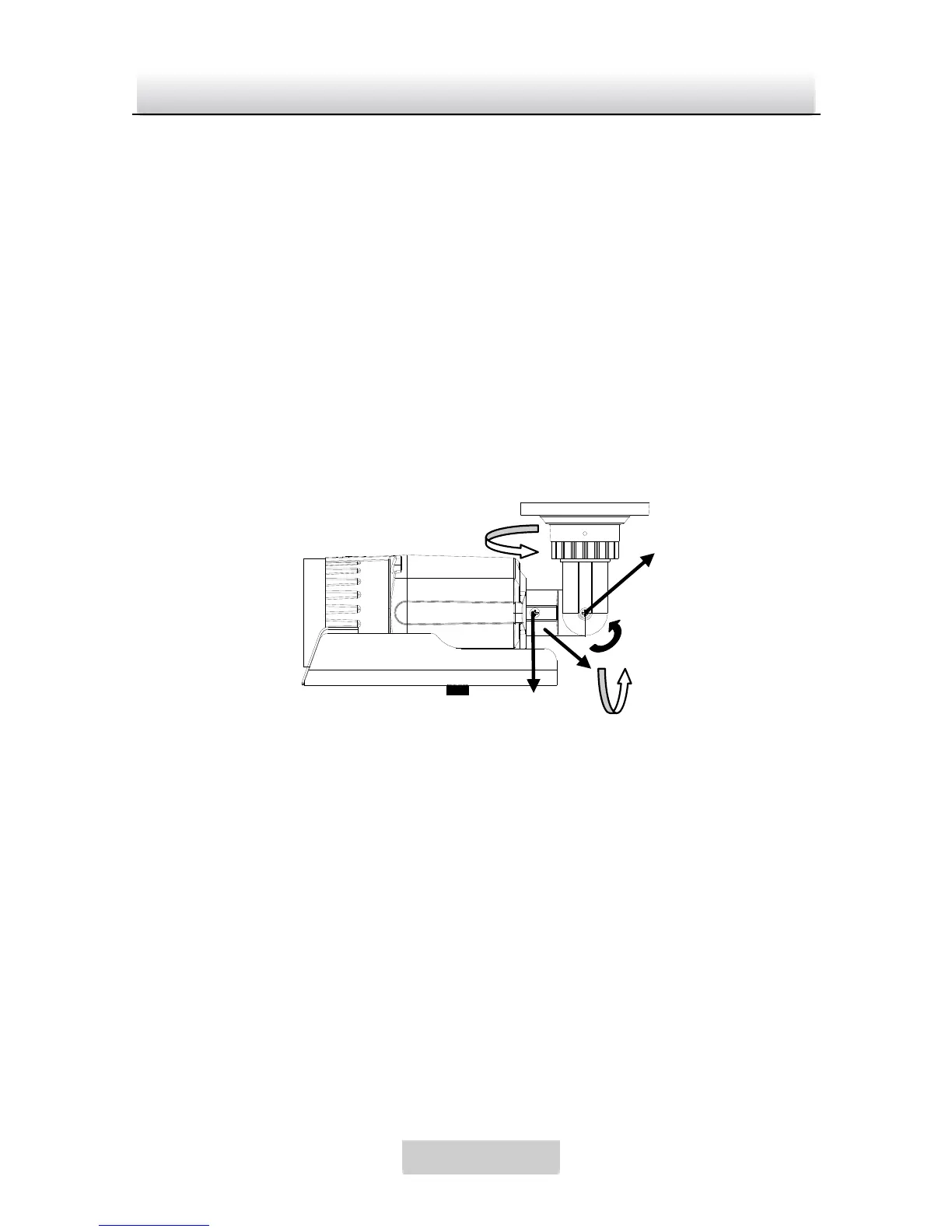

Figure 2-2 Adjust the Azimuth Angle
5. To focus and zoom, adjust the FOCUS and ZOOM screws on the
camera to get a clear image.
