5 Inch Network High-definition Speed Dome User Manual
28
Figure 4.1.4 Live Preview
As shown in Figure 4.1.4, the Playback and Log functions are operable only when the speed dome is configured with SD memory card
(above 1G).
Note: If the speed dome is configured with SD card, the SD card must be formatted before use by clicking Enter Remote
Configuration in Configure menu to enter the HDD management.

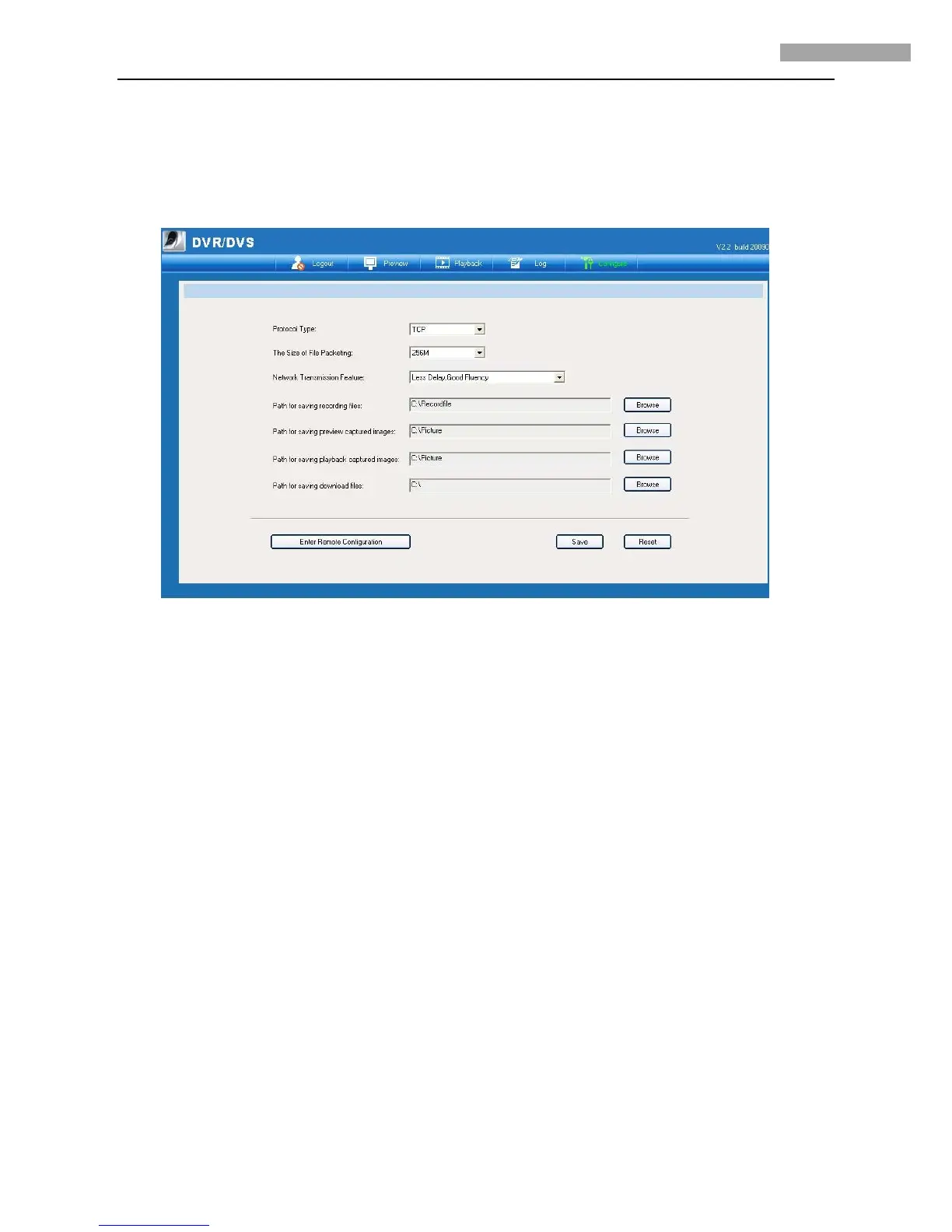

Figure 4.1.5 Configuration
To set the dome parameters through IE browser, click Configure to enter the Remote Configuration dialog box, and set the parameters
including IP address, etc., as shown in Figure 4.1.6.
Call preset 95 to access the main menu of speed dome, and use the up/down/left/right buttons to select the submenu and then click
IRIS+ button to enter the submenu to be configured.
Please refer to User Manual of iWMS-4000 (V2.0) for detailed information about Remote Configuration.
