5 Inch Network High-definition Speed Dome User Manual
38
Figure 4.2.14 3D Positioning
4.2.3 Presets
Add Preset: After having moved PTZ to the desired position, click the icon from the Preview interface, select a preset
number from the list, and finally click the Add Preset button to enter the Add Preset dialog box. Input the preset name in the text box,
and then click OK to add the preset. Refer to Figure 4.2.15 and Figure 4.2.16. The preset can also be added by right-clicking the preset
number and select Add submenu.

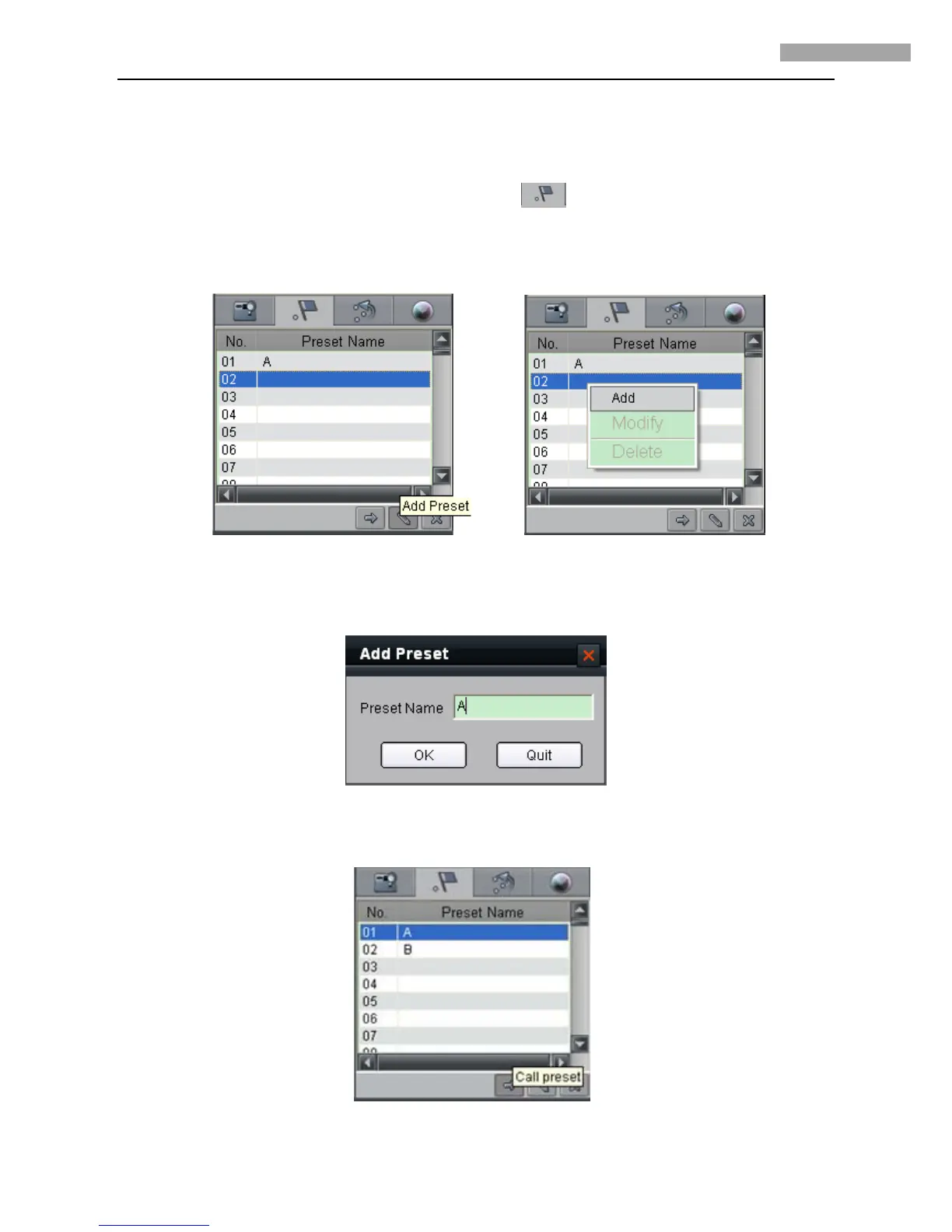

Figure 4.2.15 Add Preset Figure 4.2.16 Add Preset
Figure 4.2.17 Input Preset Name
Call Preset: Select a predefined preset from the list and click the Call preset button to call a preset. Refer to Figure 4.2.18.
