HIKVISION DS-3TXX06HP-E Series User Manual

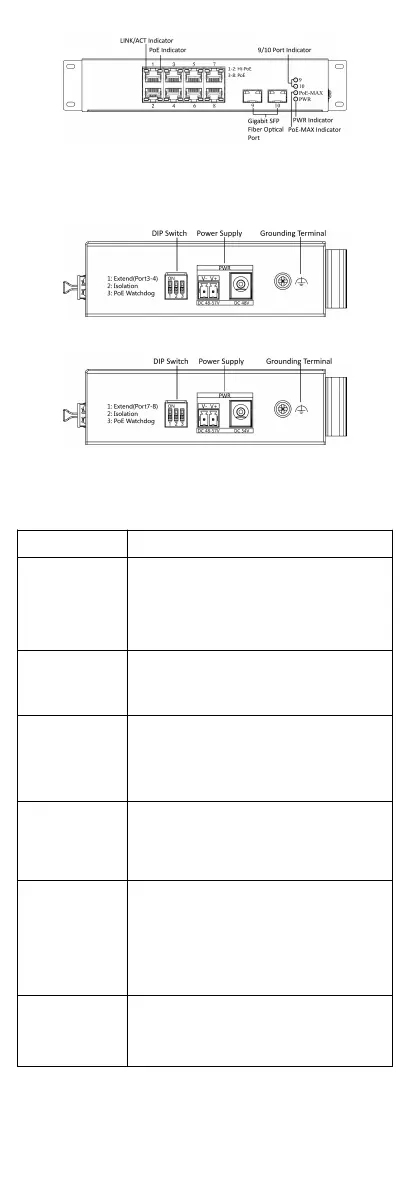

Figure 1-4 DS-3T0510HP-E
Rear Panel
Figure 1-5 DS-3TXX06HP-E Series
Figure 1-6 DS-3TXX10HP-E Series
Port/Indicator Descripon
Indicator/Port Descripon
PoE-MAX Indicator
•
Solid /Flashing: The output power of the switch
will reach the upper limit. The power supply may
be abnormal if more devices are connected.
•
Unlit: The switch provides power supply to PD
normally.
PWR Indicator
•
Solid: The switch is powered on normally.
•
Unlit: No power supply connected or power
supply is abnormal.
LINK/ACT Indicator
•
Solid: The port is connected.
•
Flashing: The port is transming data.
•
Unlit: The port is disconnected or connecon is
abnormal.
PoE Indicator
•
Solid: The switch provides power supply to PD
normally.
•
Unlit: The switch is disconnected to PD, or
provides power supply to PD abnormally.
G2/5/6/9/10 Port
Indicator
•
Solid: The gigabit SFP ber opcal port is
connected.
•
Flashing: The gigabit SFP ber opcal port is
transming data.
•
Unlit: No gigabit SFP ber opcal port connected
or connecon is abnormal.
Hi-PoE Port
Used for other Hi-PoE PTZ cameras connecon. In
the temperature from 0 to 40 °C (32 to 104 °F), the
max. power of DS-3TXX06HP series is 60 W, and the
max. power of DS-3TXX10HP series is 90 W.
2
