DS-6900UDI Series HD Video and Audio Decoder User Manual
DS-6900UDI Decoder Us er Manua l
3
Panels and Connections

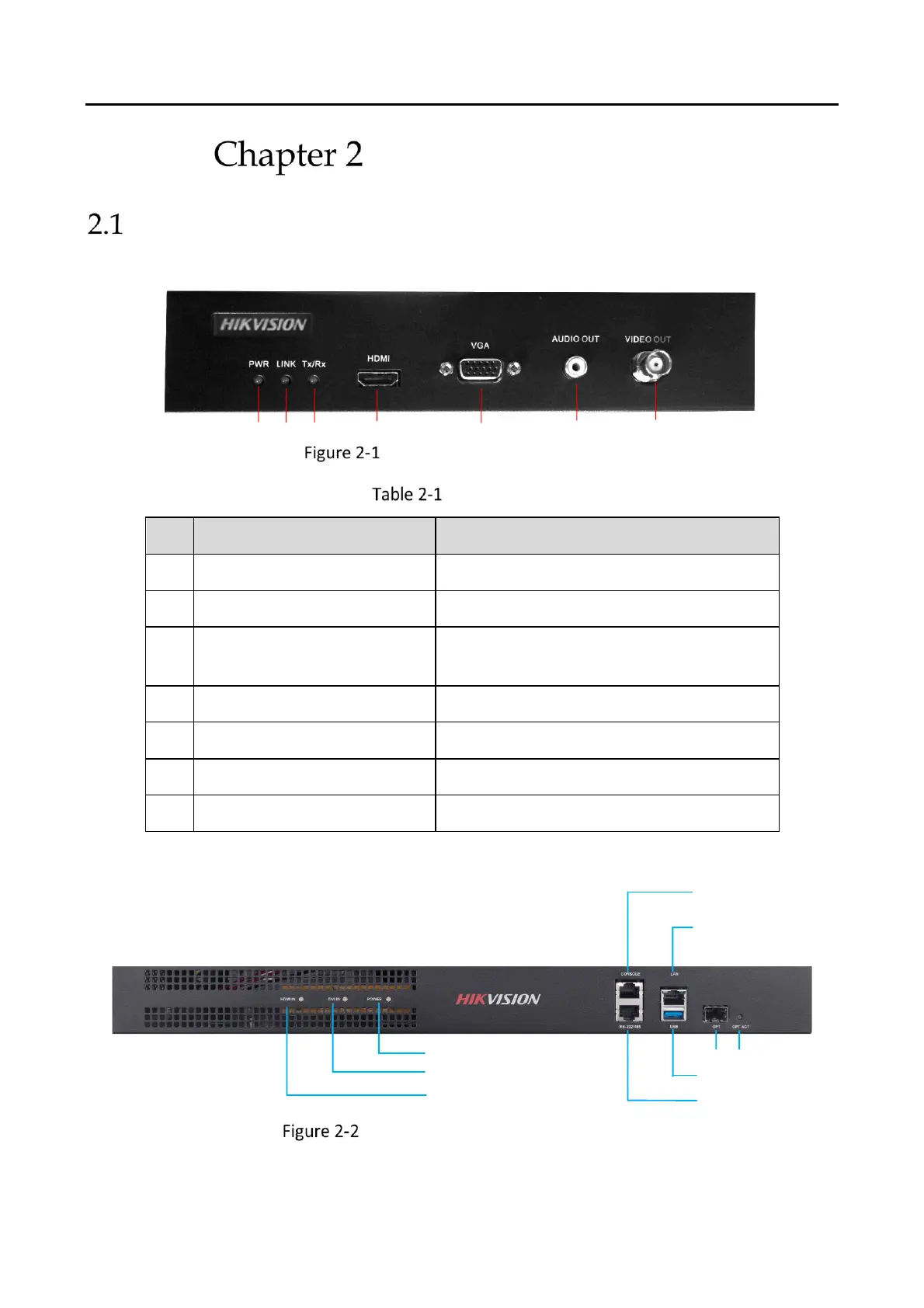

Front Panel
 Front panel of DS-6901UDI
Front Panel of DS-6901UDI
Description of DS-6901UDI Front Panel
 Front Panel of DS-6904/6908UDI
Front Panel of DS-6904/6908UDI
1 2 3 4 5 6 7
1
2
3
4
6
8
5
7
9
No.
LED Indicator & Interface
Description
1
POWER
Power indicator
2
LINK
Network connection indicator
3
Tx/Rx
Data transmitting/receiving status
indicator
4
HDMI video output
HDMI output for decoded video
5
VGA video output
VGA output of decoded video
6
Audio output
Audio output, 3.5mm connector
7
Video output
Video output, BNC connector

HIKVISION DS-6904UDI Specifications

General

PTZ control	Yes
Channels quantity	4 channels
Maximum frame rate	30 fps
Alarm input channels	8
Supported video modes	720p, 1080p
Audio formats supported	AAC
Video formats supported	H.264, H.264+, H.265, H.265+, M-JPEG, MPEG4
Maximum video resolution	3840 x 2160 pixels
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1280 x 960, 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 3840 x 2160
RS-232 ports	1
BNC output ports	2
Number of HDMI outputs	4
Ethernet LAN (RJ-45) ports	18
Power consumption (max)	70 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Cabling technology	10/100/1000BaseE-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Product color	Black

Weight and Dimensions

Depth	311 mm
Width	440 mm
Height	44.5 mm
Weight	5200 g
