DS-6900UDI Series HD Video and Audio Decoder User Manual
DS-6900UDI Decoder Us er Manua l
62
Set LED Resolution

The value of LED width and height cannot exceed the output resolution.

The supported min. value of LED width × height of HDMI output is 288 × 288 and the max.
value is 1920 × 1080.

If you set a background color for an output, the other two linked outputs are set as the
same background color. BNC1, HDMI1, and HDMI2 are linked, BNC2, HDMI3, and HDMI4
are linked etc.
Check the checkbox of Batch Configuration to set the same configuration for other outputs
with same signal source.
Click OK to save the settings.
Operating Decoding
Purpose
After the settings of the encoding device, decoding device and video wall, the video stream from
the encoding devices can be decoded and displayed on the video wall.
After enabling decoding and displaying, the video from the encoding devices can be displayed
on the video wall. And the real-time live view is shown on the physical video wall.

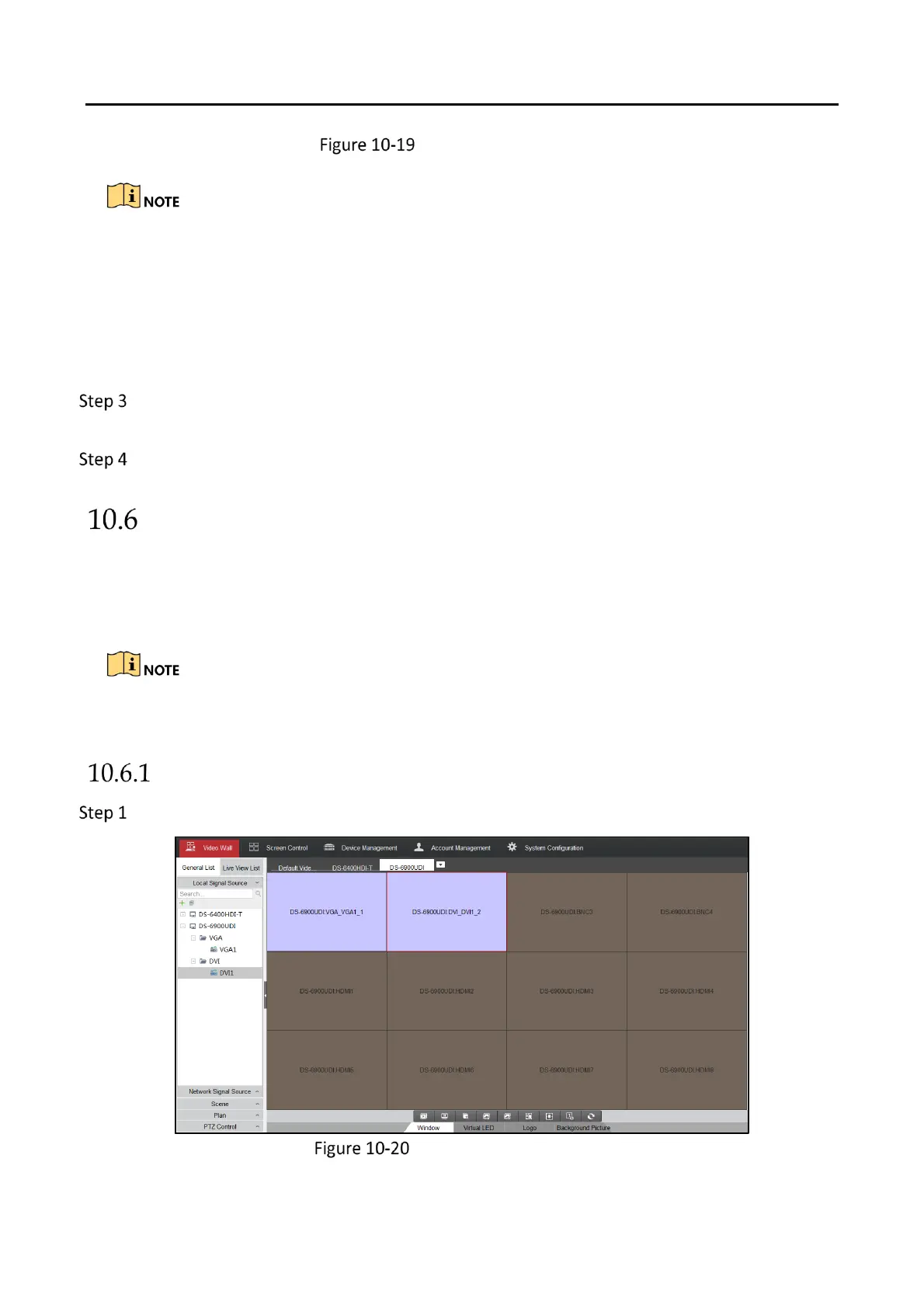

Dragging Channels to the Video Wall
Enter the Video Wall interface.
Video Wall Interface

HIKVISION DS-6904UDI Specifications

General

PTZ control	Yes
Channels quantity	4 channels
Maximum frame rate	30 fps
Alarm input channels	8
Supported video modes	720p, 1080p
Audio formats supported	AAC
Video formats supported	H.264, H.264+, H.265, H.265+, M-JPEG, MPEG4
Maximum video resolution	3840 x 2160 pixels
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1280 x 960, 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 3840 x 2160
RS-232 ports	1
BNC output ports	2
Number of HDMI outputs	4
Ethernet LAN (RJ-45) ports	18
Power consumption (max)	70 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Cabling technology	10/100/1000BaseE-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Product color	Black

Weight and Dimensions

Depth	311 mm
Width	440 mm
Height	44.5 mm
Weight	5200 g
