6. Set the linkage
acons. Refer to Congure Alarm Linkage Acon for details.
7. Click Apply.
Region Entrance Detecon
Region entrance detecon detects objects that enter a predened virtual region.
Steps
1. Go to
Conguraon → Camera → Event → Region Entrance .

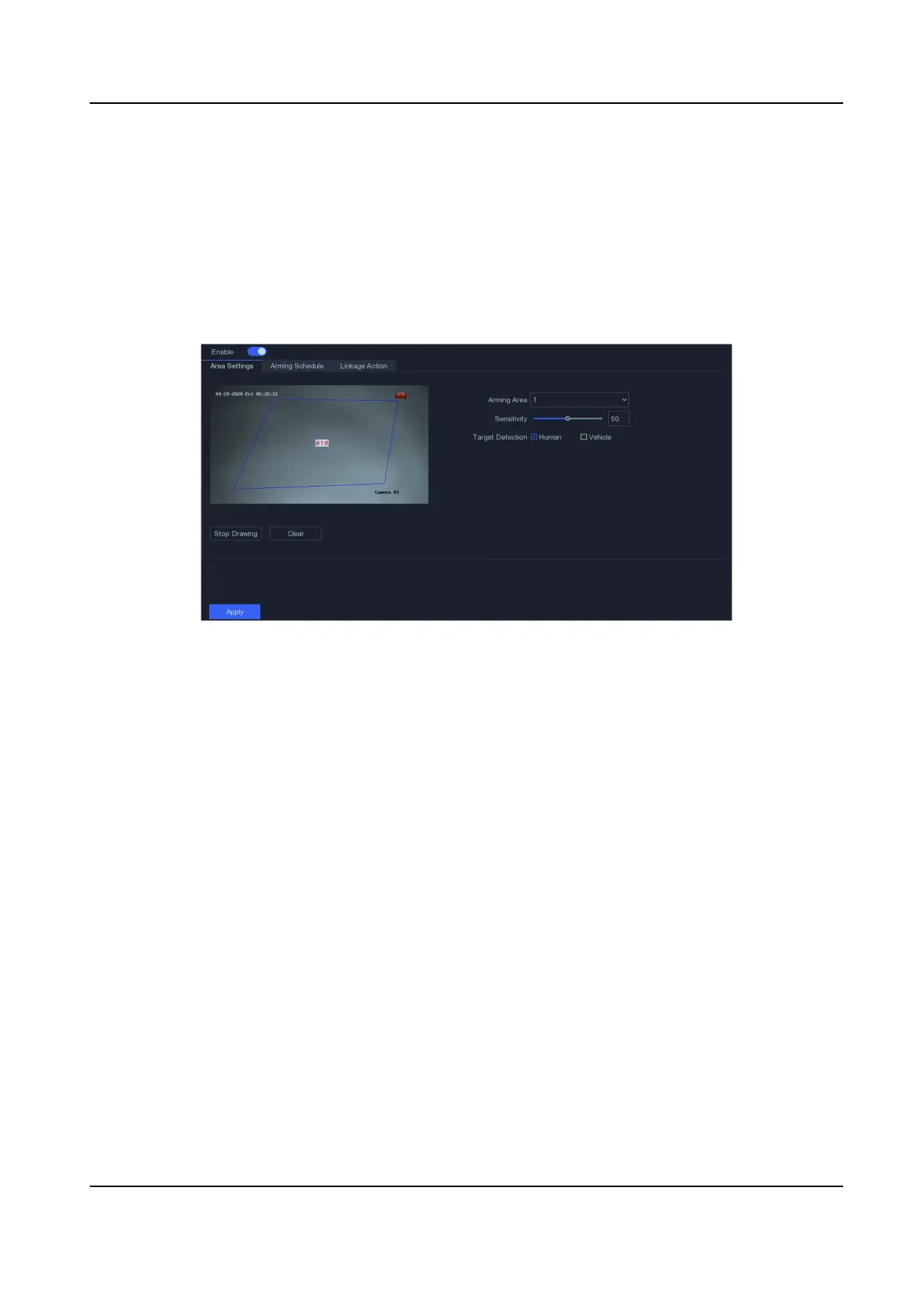

Figure 5-12 Region Entrance Detecon
2. Select a camera.
3. Turn on Enable.
4. Set
detecon rules and detecon areas.
1) Set Arming Area. Up to 4 arming areas are selectable.
2) Set
Sensivity. The higher the value is, the easier the detecon alarm can be triggered. Its
range is [1-100].
3)
Oponal: Set Target Detecon as Human or Vehicle to discard alarms which are not
triggered by human body or vehicle.
4) Click Draw Area to draw a quadrilateral
detecon region.
5. Set the arming schedule. Refer to for Congure Arming Schedule for details.
6. Set the linkage acons. Refer to Congure Alarm Linkage Acon for details.
7. Click Apply.
Region
Exing Detecon
Region exing detecon detects objects that exit from a predened virtual region.
Steps
1. Go to
Conguraon → Camera → Event → Region Exing .
Network Video Recorder User Manual
28

HIKVISION DS-7104NI-Q1 Specifications

General

Certification	FCC 15 B, ANSI C63.4-2014 CE EN50130-4, EN 61000-3-2, EN 61000-3-3
Product color	Black
Output current	1 A
Output voltage	48 V
Power consumption (typical)	10 W
Total Power over Ethernet (PoE) budget	36 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
HDD capacity	0 GB
HDD interface	SATA, SATA II, SATA III
Maximum storage capacity	6 TB
Number of HDDs installed	0
Number of HDDs supported	1
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	5
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP
Power over Ethernet (PoE) ports quantity	4
Video codecs	H.265+/H.265/ H.264+/H.264
Input bandwidth	40 Mbit/s
Output bandwidth	60 Mbit/s
Maximum resolution	1920 x 1080 pixels
Video input channels	4 channels
Supported resolutions	1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Wi-Fi	No

Weight and Dimensions

Depth	225 mm
Width	265 mm
Height	48 mm
Weight	1000 g
