User Manual of Network V
ideo Recorder
149

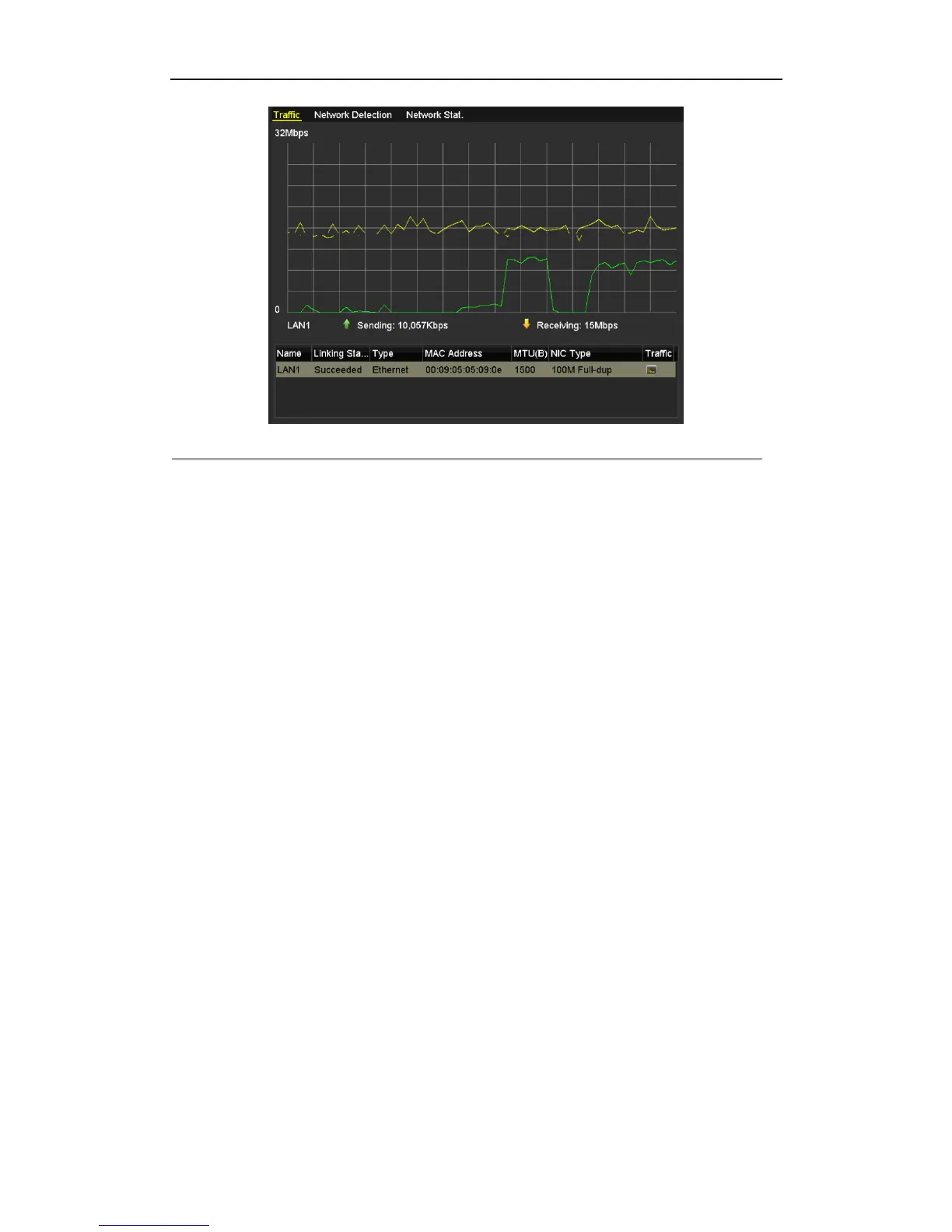

Figure 9. 29
Network Traffic Interface
2.
You can view the sending rate and receiving rate information on the interface
. The traffic data is refreshed
every 1 second.
149
151
Table of Contents
Default Chapter
1
Default Chapter
1
User Manual
1
Fcc Information
3
Regulatory Information
3
Safety Instruction
4
Product Key Features
7
Table of Contents
10
Chapter 1 Introduction
14
Front Panel
15
DS-7600NI-V and DS-7600NI-VP
15
DS-7600NI-SN Series
15
DS-7100NI Series
16
IR Remote Control Operations
17
USB Mouse Operation
20
Input Method Description
21
Rear Panel
22
Ds-7600Ni-Sn, Ds-7604Ni-Sn/N, Ds-7608 & 7616Ni-Sn/N
22
Ds-7600Ni-Sn/P
23
DS-7600NI-SE and DS-7600NI-SE/N
23
Ds-7600Ni-Se/P
24
DS-7600NI-V and DS-7600NI-VP
25
DS-7100NI-SL, DS-7100NI-SN and DS-7100NI-SL/W
26
DS-7100NI-SN/N and DS-7100NI-SN/P
26
Chapter 2 Getting Started
28
Starting up and Shutting down the NVR
29
Setting Admin Password
31
Using the Wizard for Basic Configuration
32
Login and Logout
36
User Login
36
User Logout
36
Adding and Connecting the IP Cameras
38
Activating the IP Camera
38
Adding the Online IP Cameras
39
Editing the Connected IP Cameras and Configuring Customized Protocols
43
Editing IP Cameras Connected to the Poe or the Built-In Switch Interfaces
45
Checking the Poe Information
47
Chapter 3 Live View
48
Introduction of Live View
49
Operations in Live View Mode
50
Using the Mouse in Live View
50
Quick Setting Toolbar in Live View Mode
51
Adjusting Live View Settings
54
User Logout
56
Chapter 4 PTZ Controls
57
Configuring PTZ Settings
58
Setting PTZ Presets, Patrols & Patterns
60
Customizing Presets
60
Calling Presets
60
Customizing Patrols
61
Calling Patrols
62
Customizing Patterns
63
Calling Patterns
63
Customizing Linear Scan Limit
64
Calling Linear Scan
65
One-Touch Park
65
PTZ Control Panel
67
Chapter 5 Recording Settings
68
Configuring Parameters
69
Configuring Recording Schedule
71
Configuring Motion Detection Recording
74
Configuring Alarm Triggered Recording
76
Configuring VCA Triggered Recording
78
Manual Recording
79
Configuring Holiday Recording
80
Configuring Redundant Recording
81
Configuring HDD Group for Recording
83
Files Protection
84
Chapter 6 Playback
87
Playing Back Record Files
88
Playing Back by Channel
88
Playing Back by Time
90
Playing Back by Event Search
92
Playing Back by Tag
94
Smart Playback
97
Playing Back by System Logs
99
Playing Back External File
101
Auxiliary Functions of Playback
102
Playing Back Frame by Frame
102
Digital Zoom
102
Reverse Playback of Multi-Channel
102
Chapter 7 Backup
104
Backing up Record Files
105
Quick Export
105
Backing up by Normal Video Search
106
Backing up by Event Search
110
Backing up Video Clips
112
Managing Backup Devices
114
Chapter 8 Alarm Settings
117
Setting Motion Detection Alarm
118
Setting Sensor Alarms
120
Detecting Video Loss Alarm
123
Detecting Video Tampering Alarm
124
Detecting VCA Alarm
126
Handling Exceptions Alarm
128
Setting Alarm Response Actions
129
Triggering or Clearing Alarm Output Manually
132
Chapter 9 Network Settings
133
Configuring General Settings
134
Configuring Advanced Settings
136
Configuring EZVIZ Cloud P2P
136
Configuring DDNS
137
Configuring Pppoe Settings
141
Configuring NTP Server
142
Configuring SNMP
142
Configuring Remote Alarm Host
143
Configuring Multicast
144
Configuring RTSP
144
Configuring Server and HTTP Ports
144
Configuring Email
145
Configuring NAT
147
Checking Network Traffic
149
Configuring Network Detection
151
Testing Network Delay and Packet Loss
151
Exporting Network Packet
151
Checking the Network Status
152
Checking Network Statistics
153
Chapter 10 HDD Management
155
Initializing Hdds
156
Managing Network HDD
158
Managing HDD Group
161
Setting HDD Groups
161
Setting HDD Property
162
Configuring Quota Mode
164
Checking HDD Status
166
HDD Detection
167
Configuring HDD Error Alarms
169
Chapter 11 Camera Settings
170
Configuring OSD Settings
171
Configuring Privacy Mask
172
Configuring Video Parameters
173
Chapter 12 NVR Management and Maintenance
174
Viewing System Information
175
Viewing Device Information
175
Searching & Export Log Files
176
Importing/Exporting IP Camera Info
180
Importing/Exporting Configuration Files
181
Upgrading System
182
Upgrading by Local Backup Device
182
Upgrading by FTP
182
Restoring Default Settings
184
Chapter 13 Others
185
Configuring RS-232 Serial Port
186
Configuring General Settings
187
Configuring DST Settings
188
Configuring more Settings for Device Parameters
189
Managing User Accounts
190
Adding a User
190
Deleting a User
192
Editing a User
193
Appendix
195
Glossary
196
Troubleshooting
197
Summary of Changes
203
List of Compatible IP Cameras
204
List of Hikvision IP Cameras
204
List of Third-Party IP Cameras
211
