HIKVISION DS-7104NI-SL/W

User Manual of Network Video Recorder
22
DS-7600NI-SN/P

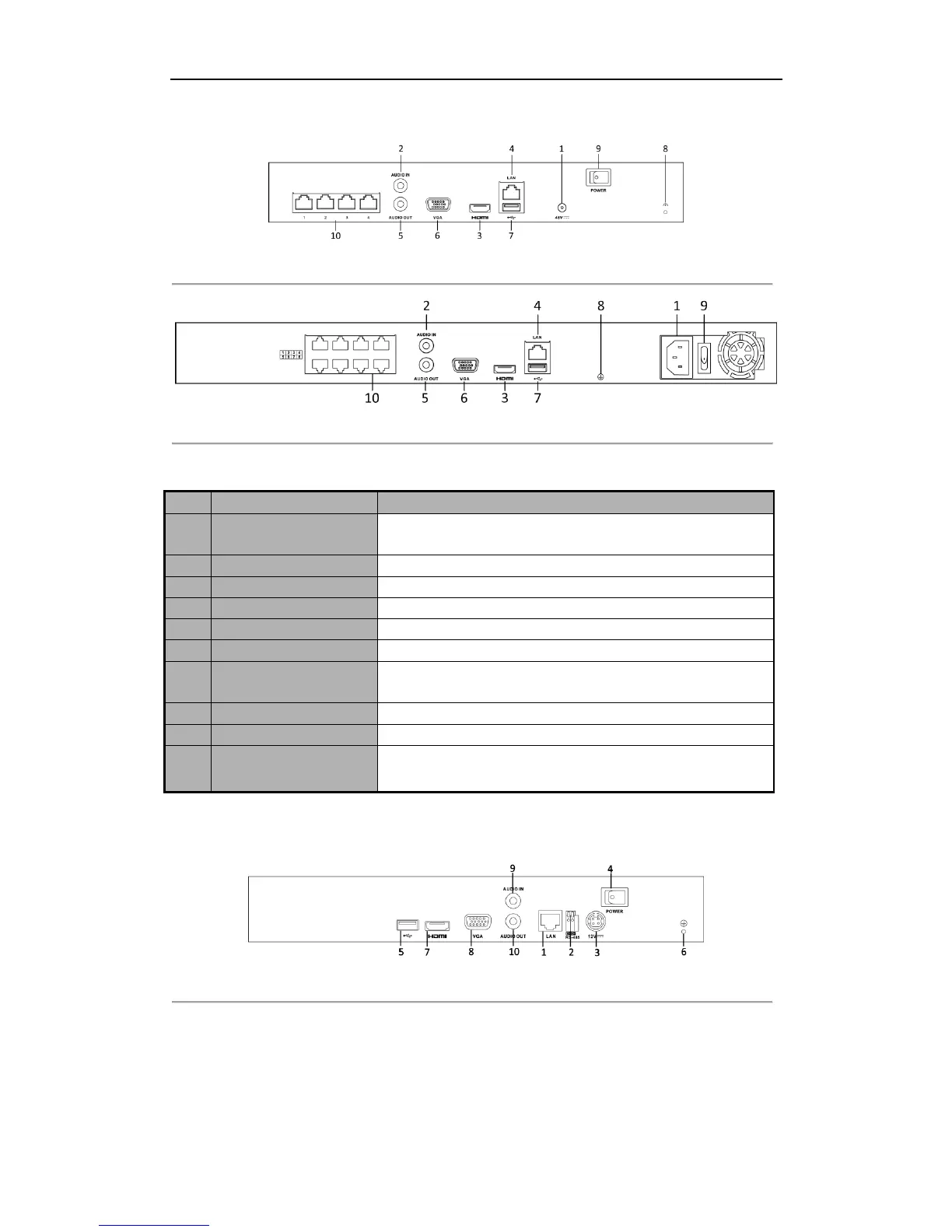

Figure 1. 9 DS-7604NI-SN/P
Figure 1. 10 DS-7608 & 7616NI-SN/P
Table 1. 8 Description of Rear Panel Interfaces
DS-7600NI-SE and DS-7600NI-SE/N
Figure 1. 11 DS-7604&7608&7616NI-SE
No.
Item
Description
1
Power Supply
DC 48V power supply for DS-7604NI-SN/P and 100~240V AC for
DS-7608&7608NI-SN/P.
2
Audio In
RCA connector for audio input.
3
HDMI
TM
Interface
HDMI
TM
video output connector.
4
LAN Network Interface
1 10 /100 /1000 Mbps self-adaptive Ethernet interface
5
Audio Out
RCA connector for audio output.
6
VGA Interface
DB9 connector for VGA output. Display local video output and menu.
7
USB Interface
Universal Serial Bus (USB) ports for additional devices such as USB
mouse and USB Hard Disk Drive (HDD).
8
Ground
Ground (needs to be connected when NVR starts up).
9
Power Switch
Switch for turning on/off the device.
10
Network Interfaces with
PoE function
Network interfaces for the cameras and to provide power over Ethernet.
