User Manual of Network Video Recorder
25
DS-7100NI-SL, DS-7100NI-SN and DS-7100NI-SL/W

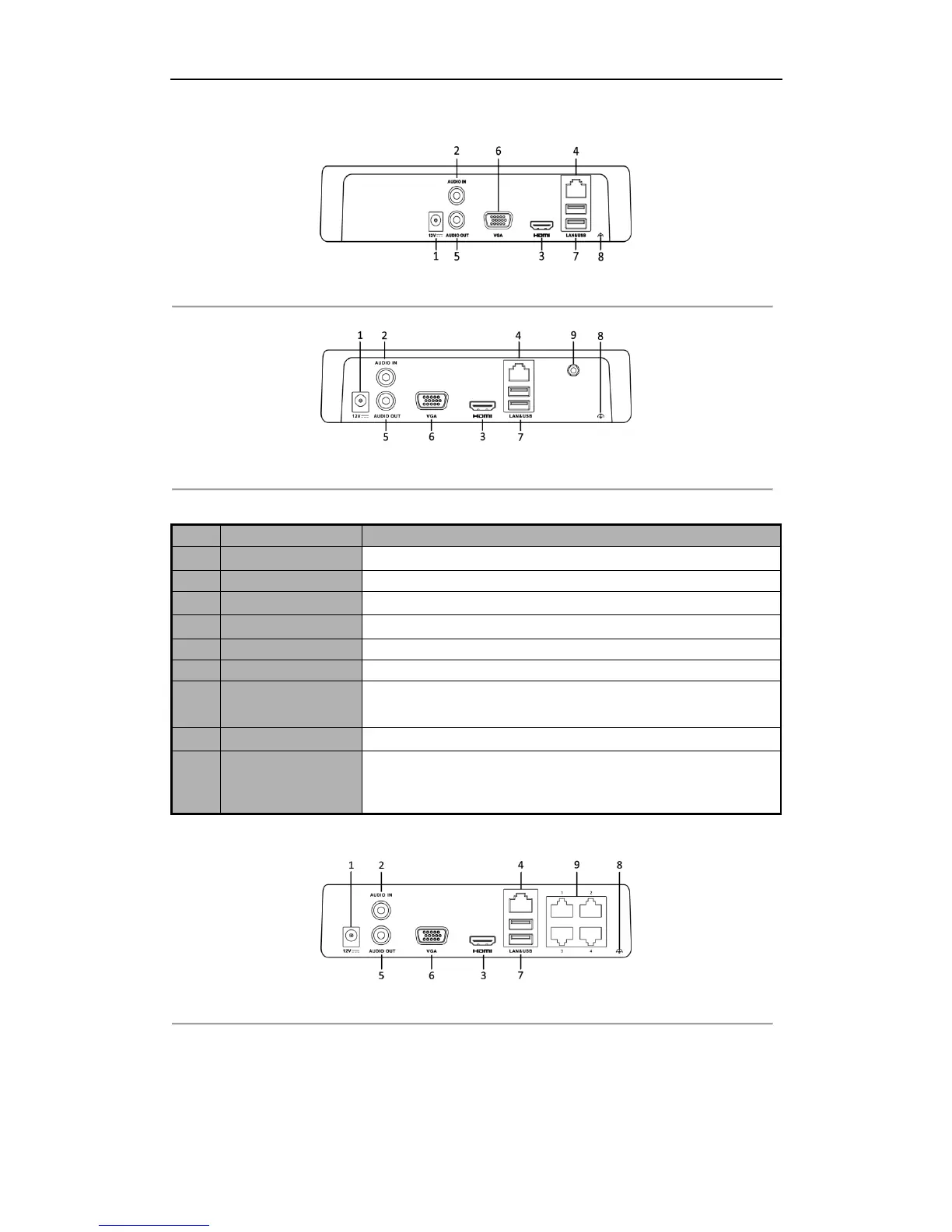

Figure 1. 16 DS-7100NI-SL and DS-7100NI-SN
Figure 1. 17 DS-7100NI-SL/W
Table 1. 12 Description of Rear Panel Interfaces
No.
Item
Description
1
Power Supply
12VDC power supply.
2
Audio In
RCA connector for two-way audio input.
3
HDMI Interface
HDMI video output connector.
4
Network Interface
Connector for LAN (Local Area Network).
5
Audio Out
RCA connector for audio output.
6
VGA Output
DB9 connector for VGA output. Display local video output and menu.
7
USB Interface
Universal Serial Bus (USB) ports for additional devices such as USB mouse
and USB Hard Disk Drive (HDD).
8
Ground
Ground (needs to be connected when NVR starts up).
9
Antenna Interface
(for DS-7100NI-SL/W
only)
Needs to be connected with antenna if you want to configure and get
connection via WLAN.
DS-7100NI-SN/N and DS-7100NI-SN/P
Figure 1. 18 DS-7104NI-SN/N, DS-7104NI-SN/P
