HIKVISION DS-7104NI-SL/W User Manual

User Manual of Network Video Recorder
26

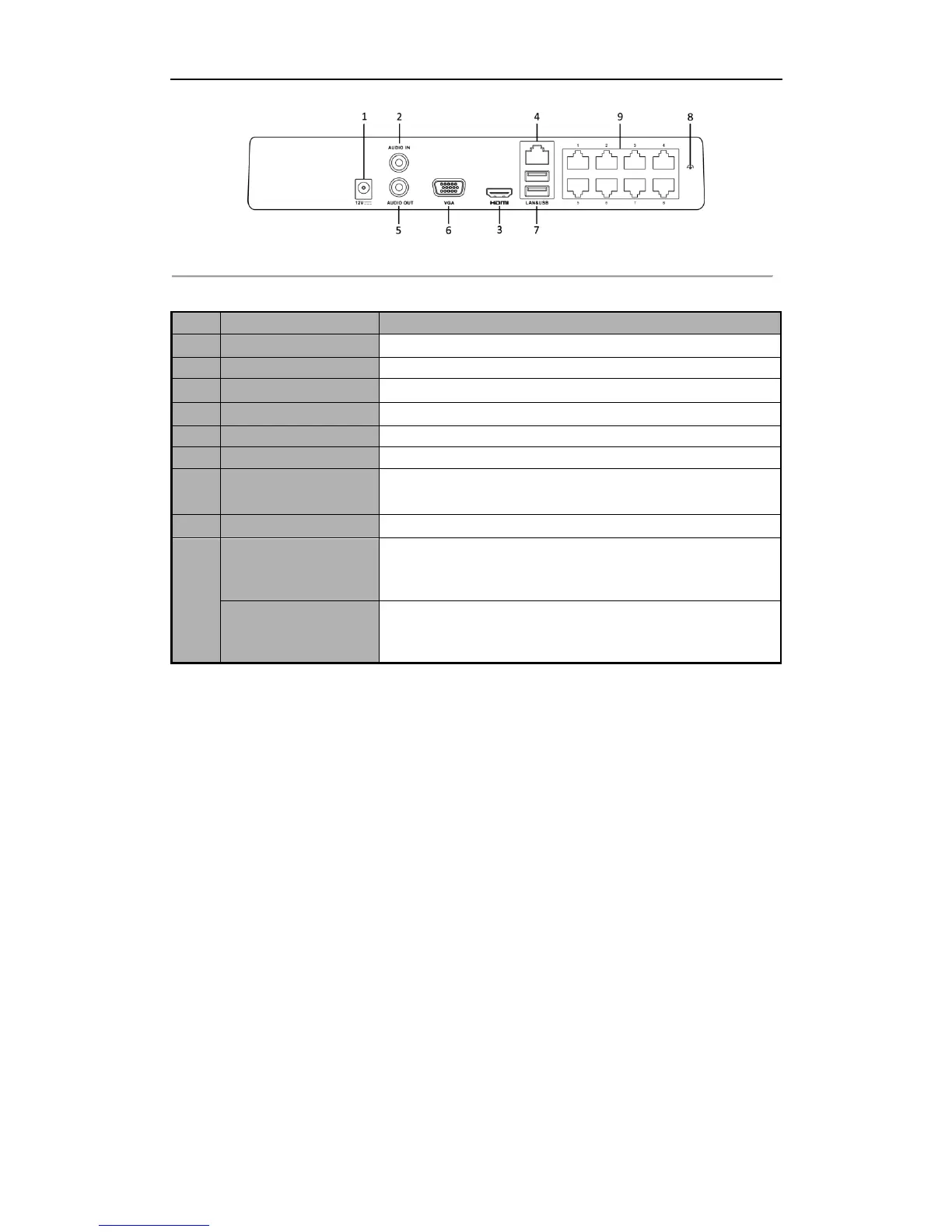

Figure 1. 19 DS-7108 & 7116NI-SN/N, DS-7108 & 7116NI-SN/P
Table 1. 13 Description of Rear Panel Interfaces
No.
Item
Description
1
Power Supply
12VDC power supply.
2
Audio In
RCA connector for two-way audio input.
3
HDMI Interface
HDMI video output connector.
4
Network Interface
Connector for LAN (Local Area Network).
5
Audio Out
RCA connector for audio output.
6
VGA Output
DB9 connector for VGA output. Display local video output and menu.
7
USB Interface
Universal Serial Bus (USB) ports for additional devices such as USB
mouse and USB Hard Disk Drive (HDD).
8
Ground
Ground (needs to be connected when NVR starts up).
9
Network Interfaces with
switch function
(for DS-7100NI-SN/N)
Network interface for the cameras.
Network Interfaces with
PoE function (for
DS-7100NI-SN/P )
Network interface for the cameras and to provide power over Ethernet.

HIKVISION DS-7104NI-SL/W Specifications

General

Brand	HIKVISION
Model	DS-7104NI-SL/W
Category	Network Hardware
Language	English
