HIKVISION DS-7104NI-SL/W

User Manual of Network Video Recorder
15
No.
Name
Description
Tx/Rx
Tx/Rx indictor blinks yellow when network connection is
functioning properly.
2
USB Interface
Universal Serial Bus (USB) ports for additional devices such as
USB mouse and USB Hard Disk Drive (HDD).
DS-7100NI Series

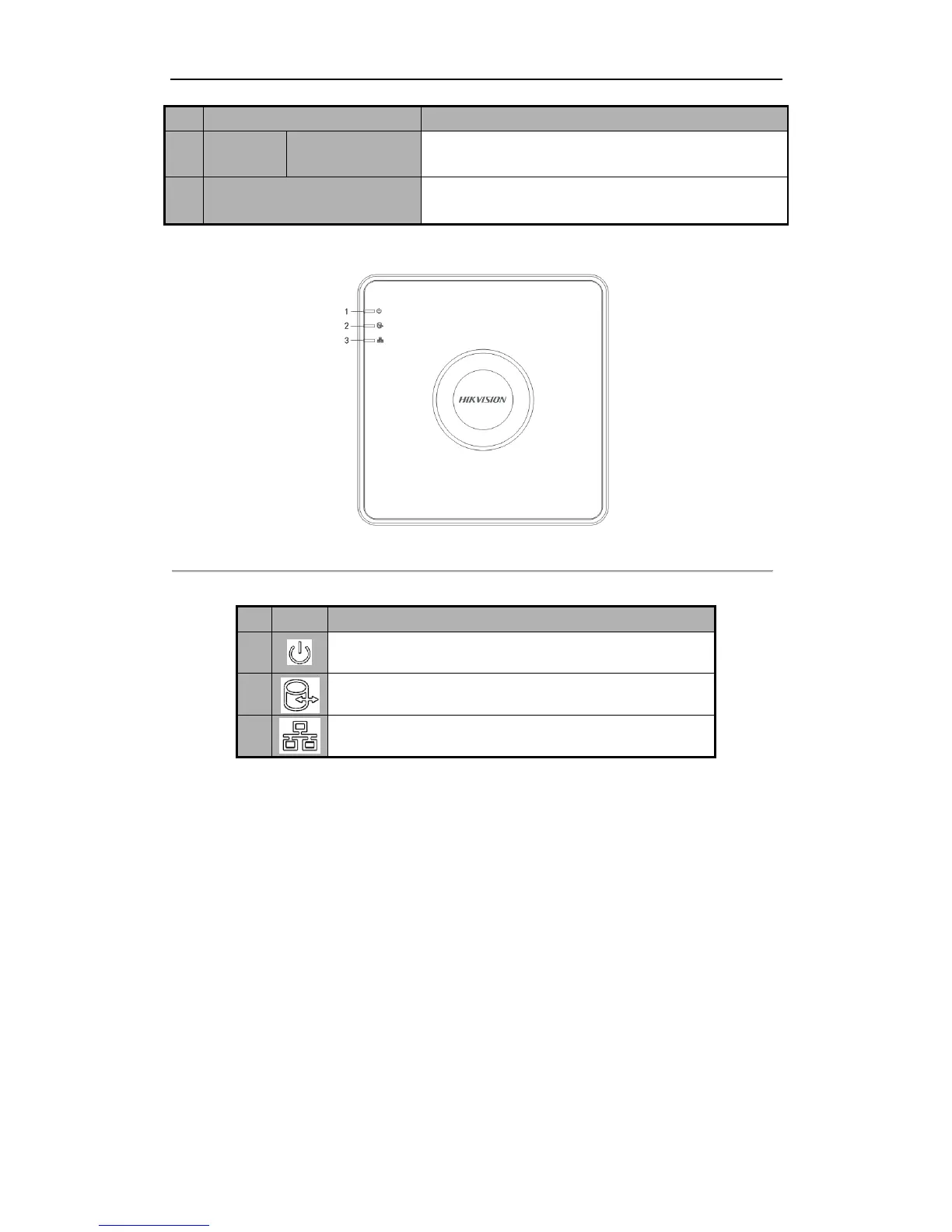

Figure 1. 3 DS-7100NI Series
Table 1. 3 Description of Control Panel Buttons
No.
Icon
Description
1
Indicator turns red when DVR is powered up.
2
Indicator lights in red when data is being read from or written to
HDD.
3
Indicator blinks blue when network connection is functioning
properly.
