HIKVISION DS-7104NI-SL/W

User Manual of Network Video Recorder
21

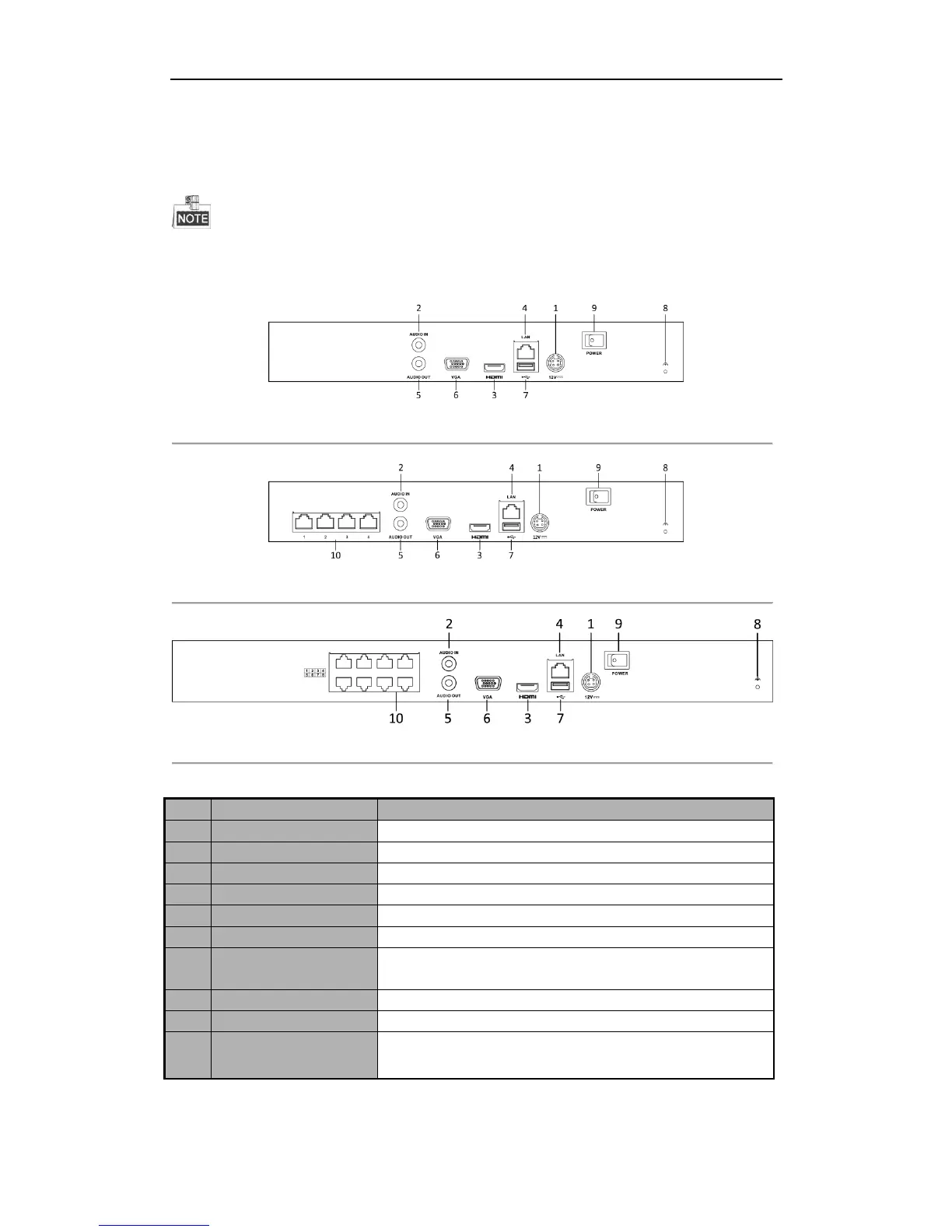

1.5 Rear Panel
The rear panel vaires according to different models.
DS-7600NI-SN, DS-7604NI-SN/N, DS-7608 & 7616NI-SN/N
Figure 1. 6 DS-7600NI-SN
Figure 1. 7 DS-7604NI-SN/N
Figure 1. 8 DS-7608 & 7616NI-SN/N
Table 1. 7 Description of Rear Panel Interfaces
No.
Item
Description
1
Power Supply
12V DC power supply.
2
Audio In
RCA connector for audio input.
3
HDMI
TM
Interface
HDMI
TM
video output connector.
4
LAN Network Interface
1 10 /100 /1000 Mbps self-adaptive Ethernet interface
5
Audio Out
RCA connector for audio output.
6
VGA Interface
DB9 connector for VGA output. Display local video output and menu.
7
USB Interface
Universal Serial Bus (USB) ports for additional devices such as USB
mouse and USB Hard Disk Drive (HDD).
8
Ground
Ground (needs to be connected when NVR starts up).
9
Power Switch
Switch for turning on/off the device.
10
Network Interfaces with
built-in switch function
Built-in switch network interfaces for the cameras. (Supported by
DS-7600NI-SN/N).
