User Manual of Network V
ideo Recorder
167

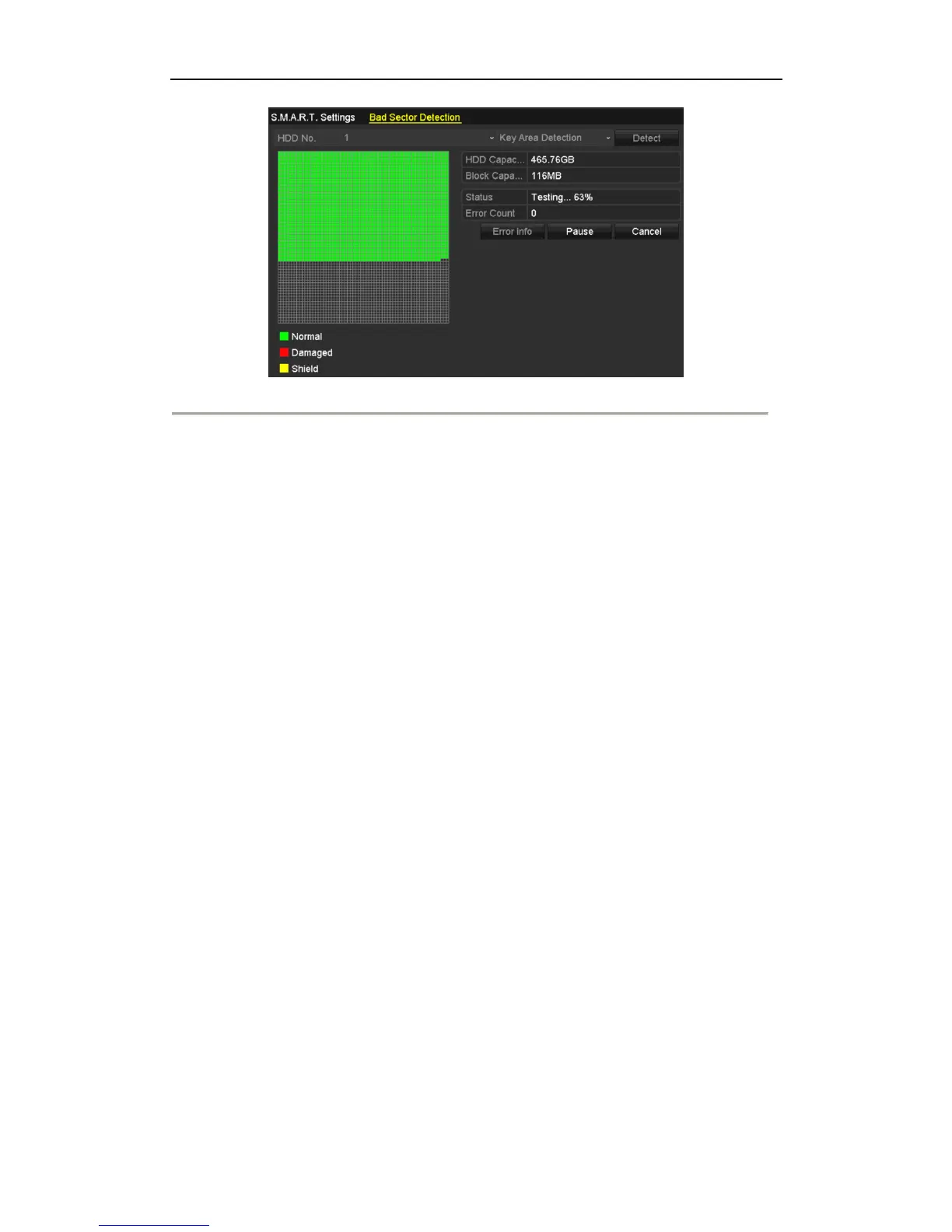

Figure 10. 22
Bad Sector Detection
And you can click
Erro
r info
button to see the detailed damage information.
And you can also pause/resume or cancel the detection.
167
