User Manual of Network V
ideo Recorder
34

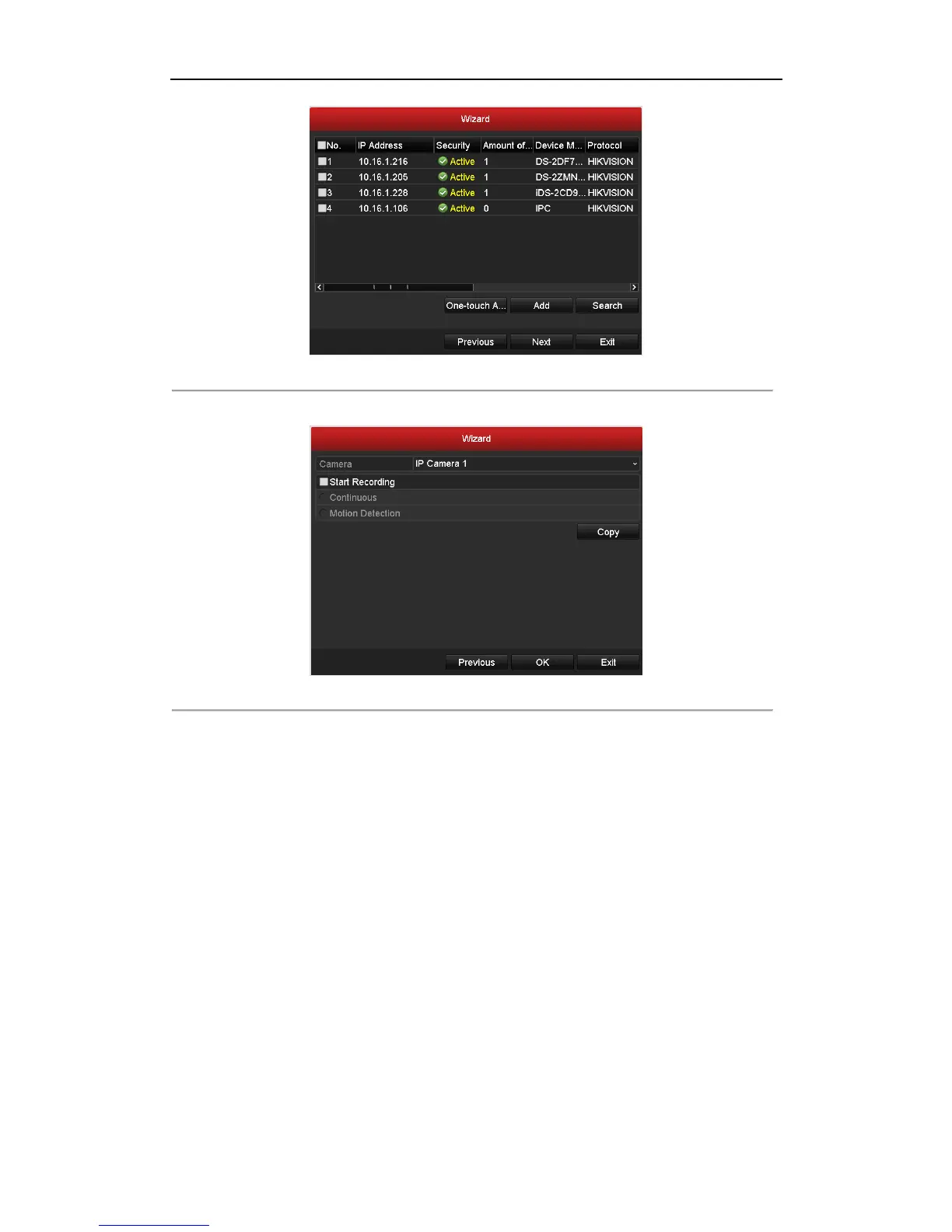

Figure 2. 11
IP Camera Management
10.
Click
Nex
t
button. Configure the rec
ordin
g for the searched IP
Cameras.
Figure 2. 12
Record Settings
11.
Click
OK
to complete the startup Setup Wizard.
