HIKVISION DS-7108HWI-SH User Manual

User Manual of Digital Video Recorder
12
1.1 Front Panel
DS-7100-SL and DS-7100-SH

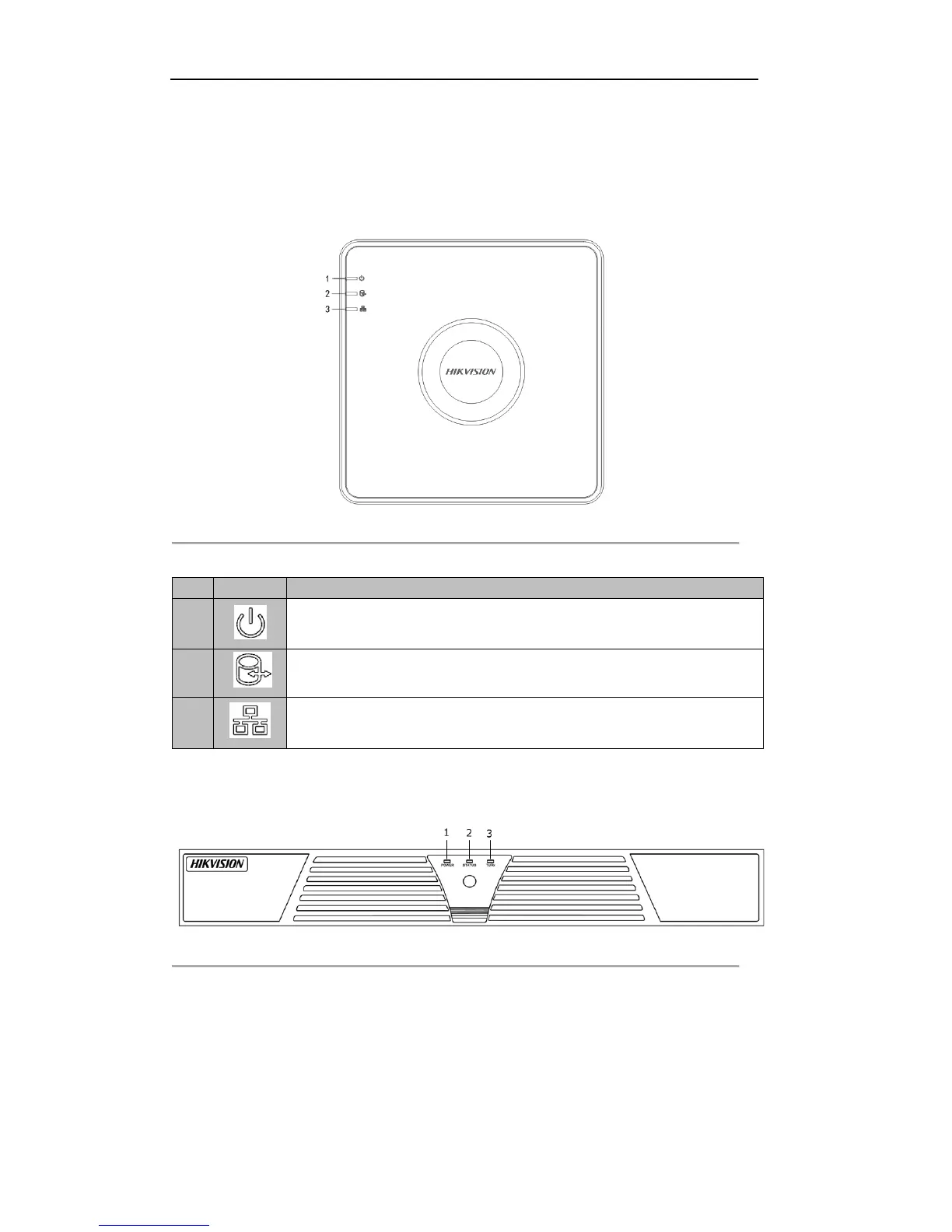

The front panel of DS-7100HWI/HVI-SL and DS-7100HWI/HVI-SH series DVR is shown in Figure 1.1:
Figure 1. 1 Front Panel of DS-7100HWI/HVI-SL and DS-7100HWI/HVI-SH
Table 3.1 Description of Indicators
No.
Icon
Description
1
Indicator turns red when DVR is powered up.
2
Indicator lights in red when data is being read from or written to HDD.
3
Indicator blinks blue when network connection is functioning properly.
DS-7200HI
The front panel of DS-7200HI series DVR is shown in Figure 1.2:
Figure 1. 2 Front Panel of DS-7200HI

HIKVISION DS-7108HWI-SH Specifications

General

Video Input	8 channels
Video Compression	H.264
Audio Output	1 channel
Operating Temperature	-10°C to +55°C
Video Output	1 HDMI, 1 VGA
Network Interface	1 RJ45 10M/100M adaptive Ethernet interface
Power Supply	12 VDC
Audio Compression	G.711
Audio Input	1 channel
Hard Drive	1 SATA interface
USB Interface	2 USB 2.0 interfaces
Operating Humidity	10% to 90% (non-condensing)
