HIKVISION DS-7108NI-Q1/M User Manual

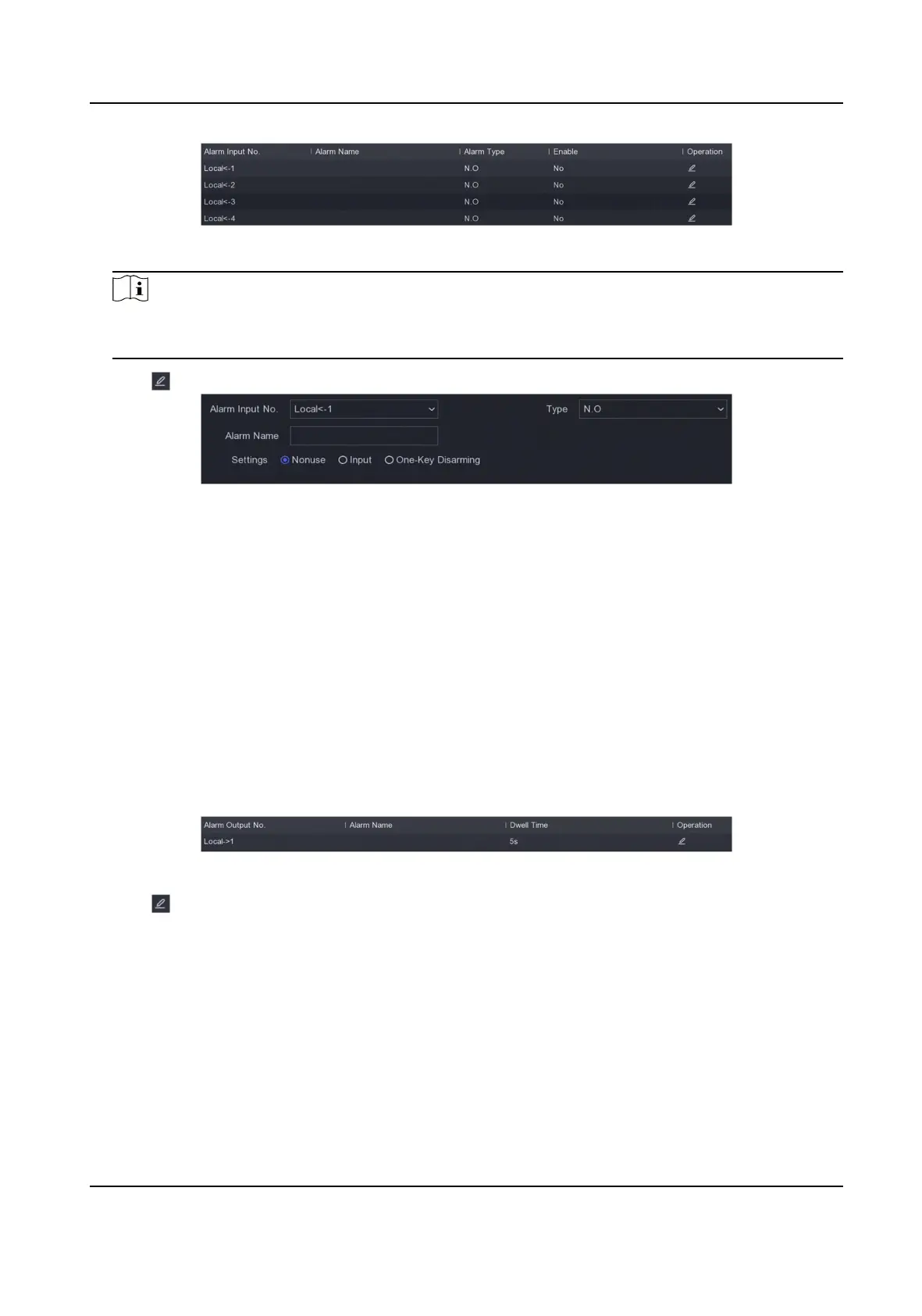

Figure 6-17 Alarm Input
Note
Local alarm input: Local alarm input is triggered by the external device that connected to the
video recorder's terminal block.
2. Click of a desired alarm input.
Figure 6-18 Edit Alarm Input
3. Customize Alarm Name.
4. Set alarm type as N.O (normally open) or N.C (normally closed).
5. Set
Sengs as Input to enable the funcon.
6. Set the arming schedule. Refer to Congure Arming Schedule for details.
7. Set the linkage
acons. Refer to Congure Alarm Linkage Acon for details.
8. Click Apply.
Alarm Output
Trigger an alarm output when an alarm is triggered.
Steps
1. Go to Conguraon → Event → Normal Event → Alarm Output .
Figure 6-19 Alarm Output
2. Click of a desired alarm output.
3. Customize Alarm Name.
4. Select Dwell Time.
Network Video Recorder User Manual
56

HIKVISION DS-7108NI-Q1/M Specifications

General

DC voltage	12 V
Power supply type	DC
Power consumption (typical)	10 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Video input channels	8 channels
USB 2.0 ports quantity	2
VGA (D-Sub) output ports	1
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Maximum HDD capacity	6000 GB
Video compression formats	H.264, H.265

Weight and Dimensions

Depth	225 mm
Width	260 mm
Height	48 mm
Weight	1000 g
