HIKVISION DS-7116HQHI-F1/N User Manual

Digital Video Recorder User Manual
46

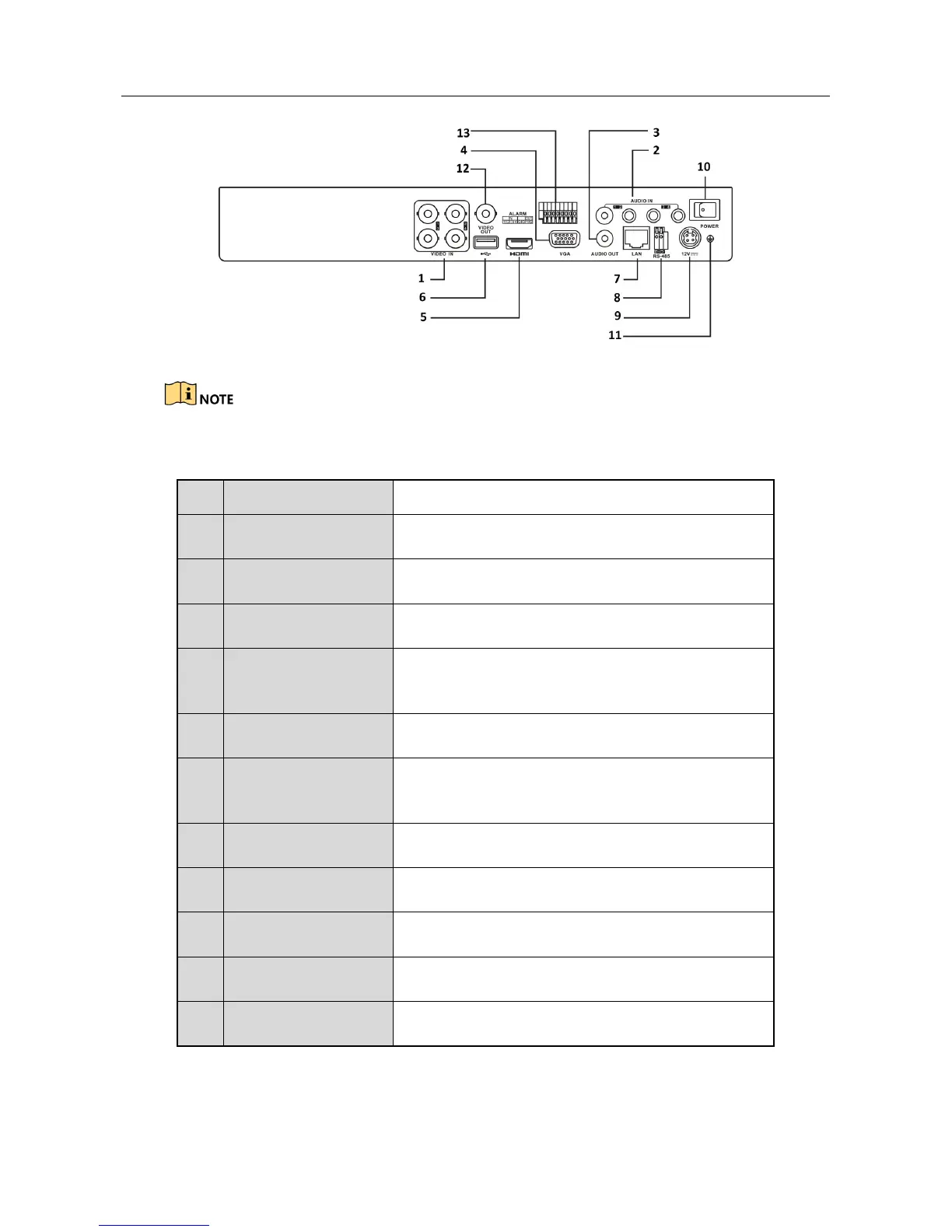

Figure 1-16 Rear Panel of DS-7200HUHI and 7600HUHI-F/N
The rear panels of DS-7208HUHI provide 8 video input interfaces. The rear panel of DS-7216HUHI
provides 16 video input interfaces.
Table 1-13 Description of Rear Panel
No. Item Description
1 VIDEO IN BNC interface for Turbo HD and analog video input.
2 AUDIO IN RCA connector
3 AUDIO OUT RCA connector.
4
VGA DB15 connector for VGA output. Display local
video output and menu.
5 HDMI HDMI video output connector.
6
USB Port Universal Serial Bus (USB) port for additional
devices.
7 Network Interface Connector for network
8 RS-485 Interface Connector for RS-485 devices.
9 Power Supply 12VDC power supply.
10 Power Switch Switch for turning on/off the device.
11 GND Ground

HIKVISION DS-7116HQHI-F1/N Specifications

General

Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Power consumption (typical)	20 W
Voltage	12 V
Product color	White
Rack capacity	1U
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+
Video input channels	16 channels
USB 2.0 ports quantity	2
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	1200 g
Dimensions (WxDxH)	285 x 210 x 45 mm
