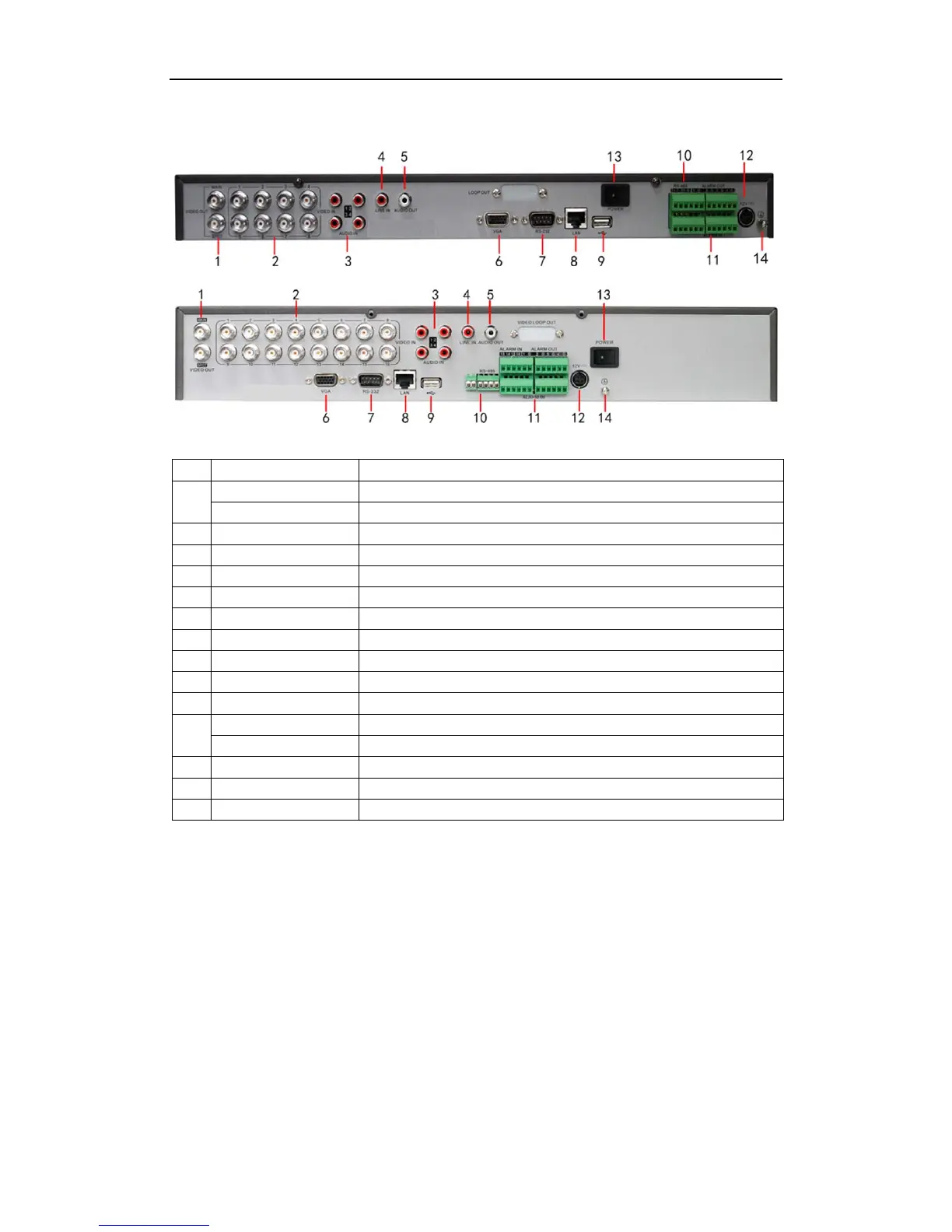

DS-7208HVI-ST, DS-7216HVI-ST:
No. Item Description
1 MAIN VIDEO OUT BNC connectors for main video out
SPOT VIDEO OUT BNC connectors for spot video out
2 VIDEO IN BNC connectors for analog video input
3 AUDIO IN RCA connectors for analog audio input
4 LINE IN RCA connector for audio input
5 AUDIO OUT RCA connector for audio output
6 VGA DB15 connector for VGA output. Display local video output and menu
7 RS-232 Interface DB9 connector for RS-232 devices.
8 LAN Connector for LAN (Local Area Network)
9 USB Connector for USB devices
10 RS-485 Interface Connector for RS-485 devices. T+, T- pin connects to PTZ
11 ALARM IN Connector for alarm input
ALARM OUT Connector for alarm output
12 12V 12VDC power supply
13 POWER Switch for turn on/off the device
14 GND Ground(needs to be connected when DVR starts up)
