HIKVISION DS-7200-ST Series Quick Operation Guide

DS-7200-ST Series DVR Quick Operation Guide
11

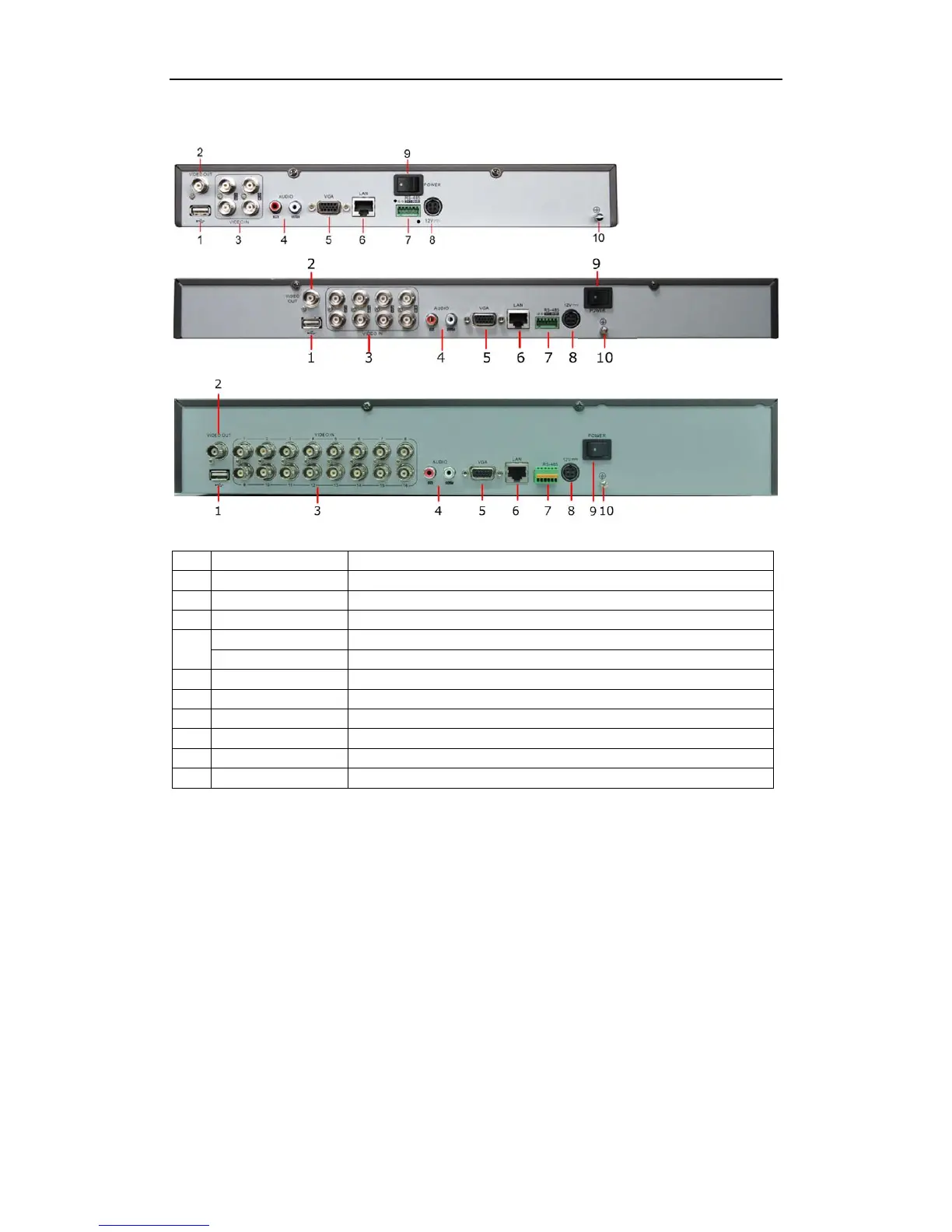

DS-7204HVI-ST/SE, DS-7208HVI-ST/SE, DS-7216HVI-ST/SE:
No. Item Description
1 USB Connector for USB devices
2 VIDEO OUT BNC connectors for video output
3 VIDEO IN BNC connectors for analog video input
4 AUDIO IN RCA connectors for analog audio input
AUDIO OUT RCA connector for audio output
5 VGA DB15 connector for VGA output. Display local video output and menu
6 LAN Connector for LAN (Local Area Network)
7 RS-485 Interface Connector for RS-485 devices. T+, T- pin connects to PTZ
8 12V 12VDC power supply
9 POWER Switch for turn on/off the device
10 GND Ground(needs to be connected when DVR starts up)
