HIKVISION DS-7208HGHI-K1 User Manual

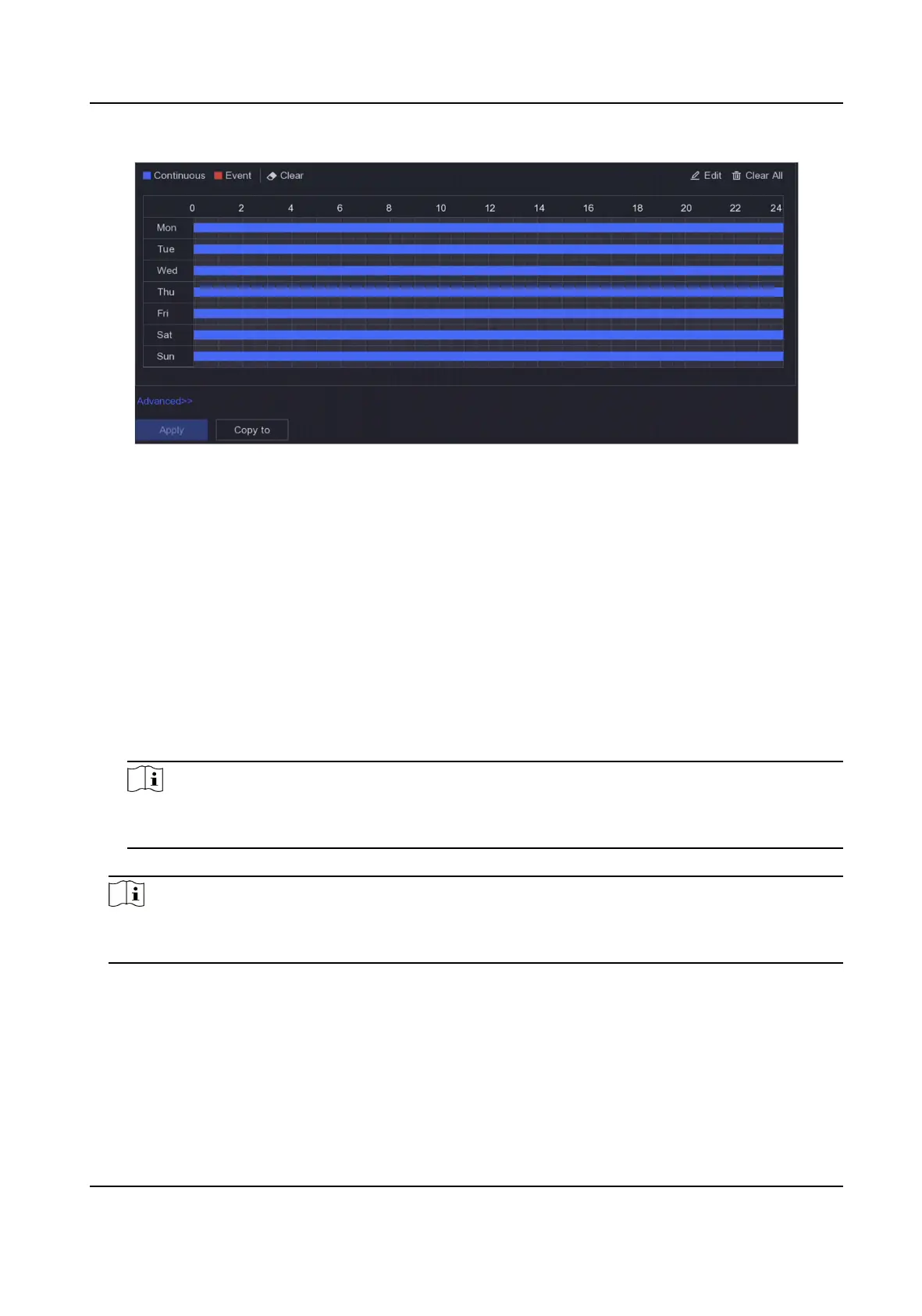

Figure 6-27 Recording Schedule
Connuous
Connuous recording.
Event
Recording triggered by all event triggered alarms.
2.
Select a camera in Camera No.
3.
Turn on Enable.
4.
Congure the recording schedule.
1) Click Edit.
2) Select a day to
congure in Weekday.
3) To set an all-day recording schedule, check All Day and select schedule Type.
4) To set other schedules, uncheck All Day and set Start/End
me and schedule Type.
Note
Up to 8 periods can be congured for each day. And the me periods cannot be overlapped
with each other.
5) Click OK to save the sengs and go back to upper level menu.
Note
You can also select schedule type as Connuous or Event, and drag the cursor on the desired
period to draw a colored bar.
5.
Click Advanced to set advanced parameters.
Record Audio
Audio will be record to the video le.
Pre-Record
Digital Video Recorder User Manual
71

HIKVISION DS-7208HGHI-K1 Specifications

General

DC voltage	12 V
Power consumption (typical)	17 W
Ethernet LAN	Yes
Number of users	64 user(s)
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
BNC input ports	8
Video input channels	8 channels
USB 2.0 ports quantity	2
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Audio system	2-way
Product color	Black
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+, H.265, H.265 Pro, H.265 Pro+
Playback resolutions supported	1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768
HDD interface	SATA, SATA II, SATA III
Maximum HDD capacity	4000 GB

Weight and Dimensions

Depth	222 mm
Width	260 mm
Height	45 mm
Weight	1000 g
