HIKVISION DS-7208HWI-SH User Manual

Quick Operation Guide of DS-7200-SH/SV/SL and DS-7300/8100-SH Series DVR
2

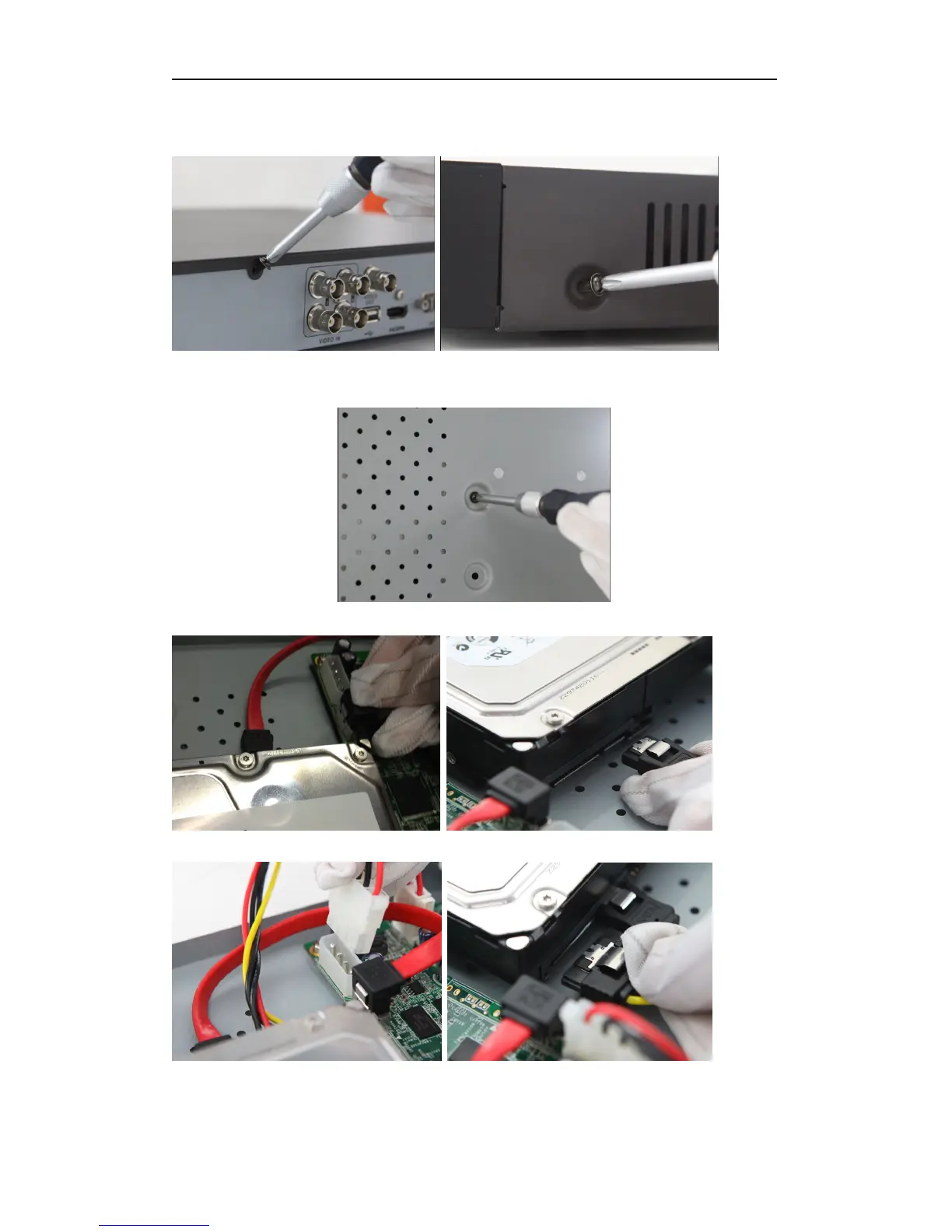

Steps (for DS-7200-SH/SV/SL and DS-7300-SH):
1. Remove the cover from the DVR by unfastening the screws on the back and side.
2. Install the HDD in the HDD rack using the provided screws. Fasten the screws on the
bottom to fix the HDD.
3. Connect the HDD to the motherboard of the DVR with the included data cable.
4. Connect the power cable to the HDD.
5. Re-install the cover of the DVR and fasten screws.

HIKVISION DS-7208HWI-SH Specifications

General

Product color	Black
USB connectivity	Yes
Channels quantity	8 channels
Video capturing speed	30 fps
Total storage capacity	8000 GB
Video compression formats	H.264
Analog signal format system	NTSC, PAL
Playback resolutions supported	1920x1080, 1280x1024, 1280x720, 1024x768
Display resolution	960 x 576 pixels
BNC input ports	8
BNC output ports	1
USB 2.0 ports quantity	2
Ethernet interface type	Fast Ethernet
Supported network protocols	NTP, SMTP, NFS, UPnP, iSCSI
HDD interface	Serial ATA
Maximum HDD capacity	4000 GB
Power requirements	12 VDC
Power consumption (typical)	15 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	445 x 290 x 45 mm
