Quick Operation Guide of DS-7200-SH/SV/SL and DS-7300/8100-SH Series DVR
8

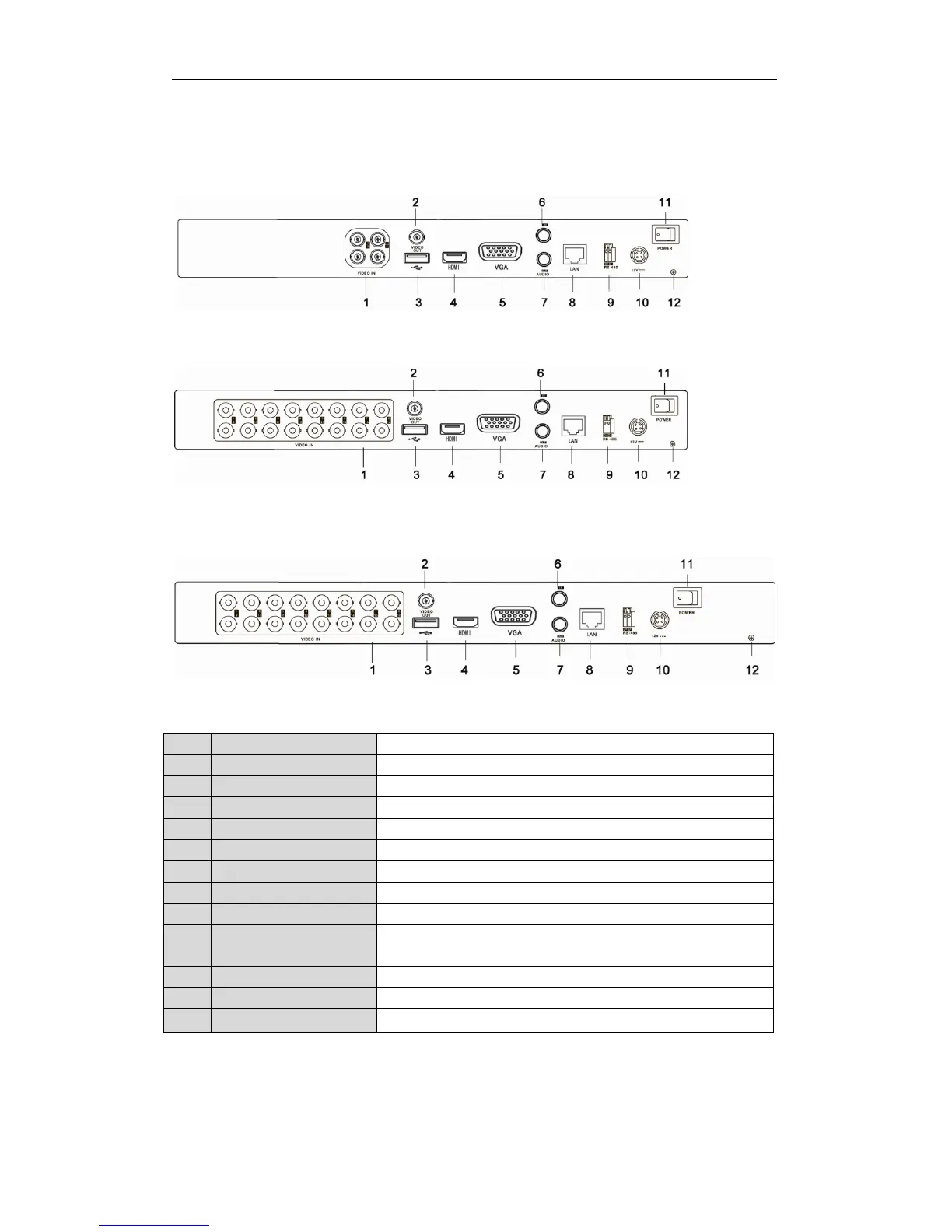

Rear Panel
DS-7204HVI/HFI/HWI-SH, DS-7204HVI-SV and DS-7204HWI-SV:
DS-7216HVI-SH, DS-7216HVI-SV and DS-7216HWI-SL:
Note: The rear panel of DS-7208HVI-SH/DS-7208HVI-SV/DS-7208HWI-SL provides 8 video input interfaces.
DS-7216HFI-SH and DS-7216HWI-SH:
Note: The rear panel of DS-7208HFI-SH/DS-7208HWI-SH provides 8 video input interfaces.
Table 4 Description of Rear Panel
No. Item Description
1 VIDEO IN BNC connector for analog video input.
2 VIDEO OUT
BNC connector for video output.
3 USB Interface
Connects USB mouse or USB flash memory devices.
4 HDMI HDMI video output.
5 VGA DB15 connector for VGA output. Display local video output and menu.
6 AUDIO IN RCA connector for audio input.
7 AUDIO OUT RCA connector for audio output.
8 LAN Interface RJ45 10M / 100M Ethernet interface.
9 RS-485 Interface Connector for RS-485 devices. Connect the D+ and D- terminals to R+
and R- terminals of PTZ receiver respectively.
10 12V 12VDC power supply.
11 POWER Switch for turning on/off the device.
12
GND Ground(needs to be connected when DVR starts up)

HIKVISION DS-7208HWI-SH Specifications

General

Product color	Black
USB connectivity	Yes
Channels quantity	8 channels
Video capturing speed	30 fps
Total storage capacity	8000 GB
Video compression formats	H.264
Analog signal format system	NTSC, PAL
Playback resolutions supported	1920x1080, 1280x1024, 1280x720, 1024x768
Display resolution	960 x 576 pixels
BNC input ports	8
BNC output ports	1
USB 2.0 ports quantity	2
Ethernet interface type	Fast Ethernet
Supported network protocols	NTP, SMTP, NFS, UPnP, iSCSI
HDD interface	Serial ATA
Maximum HDD capacity	4000 GB
Power requirements	12 VDC
Power consumption (typical)	15 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	445 x 290 x 45 mm
