HIKVISION DS-7216HQHI-K2 User Manual

Digital Video Recorder User Manual
101

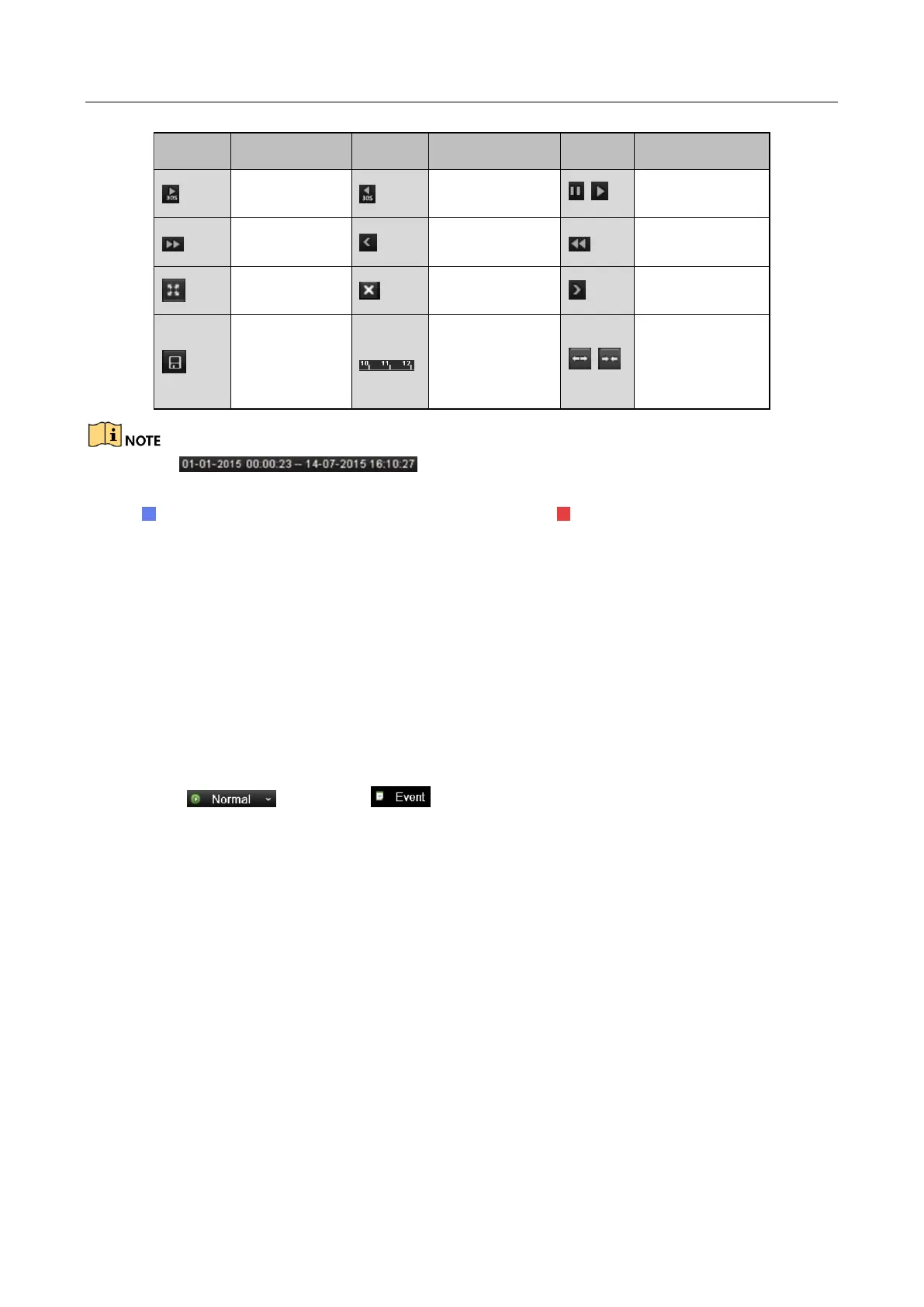

Button
Operation
Button
Operation
Button
Operation
30s forward
30s reverse
/
Pause/Play
Fast forward
Previous day
Slow forward
Full Screen
Exit
Next day
Save the clips
Process bar
/
Scaling
up/down the
time line

The indicates the start time and end time of the record
files.

represents normal recording (manual or schedule); represents event recording
(motion, alarm, motion | alarm, motion & alarm).

Playback progress bar: use the mouse to click any point of the progress bar to locate special
frames.
6.1.3 Playing Back by Event Search
Purpose
Play back record files on one or several channels searched out by restricting event type (motion
detection, alarm input or VCA). Channel switch is supported.
Step 1 Go to Menu > Playback.
Step 2 Click and select to enter the Event Playback interface.
Step 3 Select Alarm Input, Motion, VCA as the event type, and specify the start time and end time
for search.

HIKVISION DS-7216HQHI-K2 Specifications

General

Ethernet LAN	Yes
Number of users	128 user(s)
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Product color	Black
Channels quantity	16 channels
Maximum frame rate	30 fps
Video capturing speed	25 fps
Audio formats supported	G.711
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
BNC input ports	16
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Number of HDDs supported	2

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	380 x 320 x 48 mm
