Digital Video Recorder User Manual
186
At least 2 hard disks must be added on your DVR when you want to set a HDD to Redundancy, and
there is one HDD with R/W property.
13.4 Configuring Quota Mode
Purpose
Each camera can be configured with allocated quota for the storage of recorded files.
Steps
Step 1 Go to Menu > HDD > Advanced > Storage Mode.
Step 2 Set the Mode to Quota, as shown below.
The DVR must be rebooted to enable the changes to take effect.

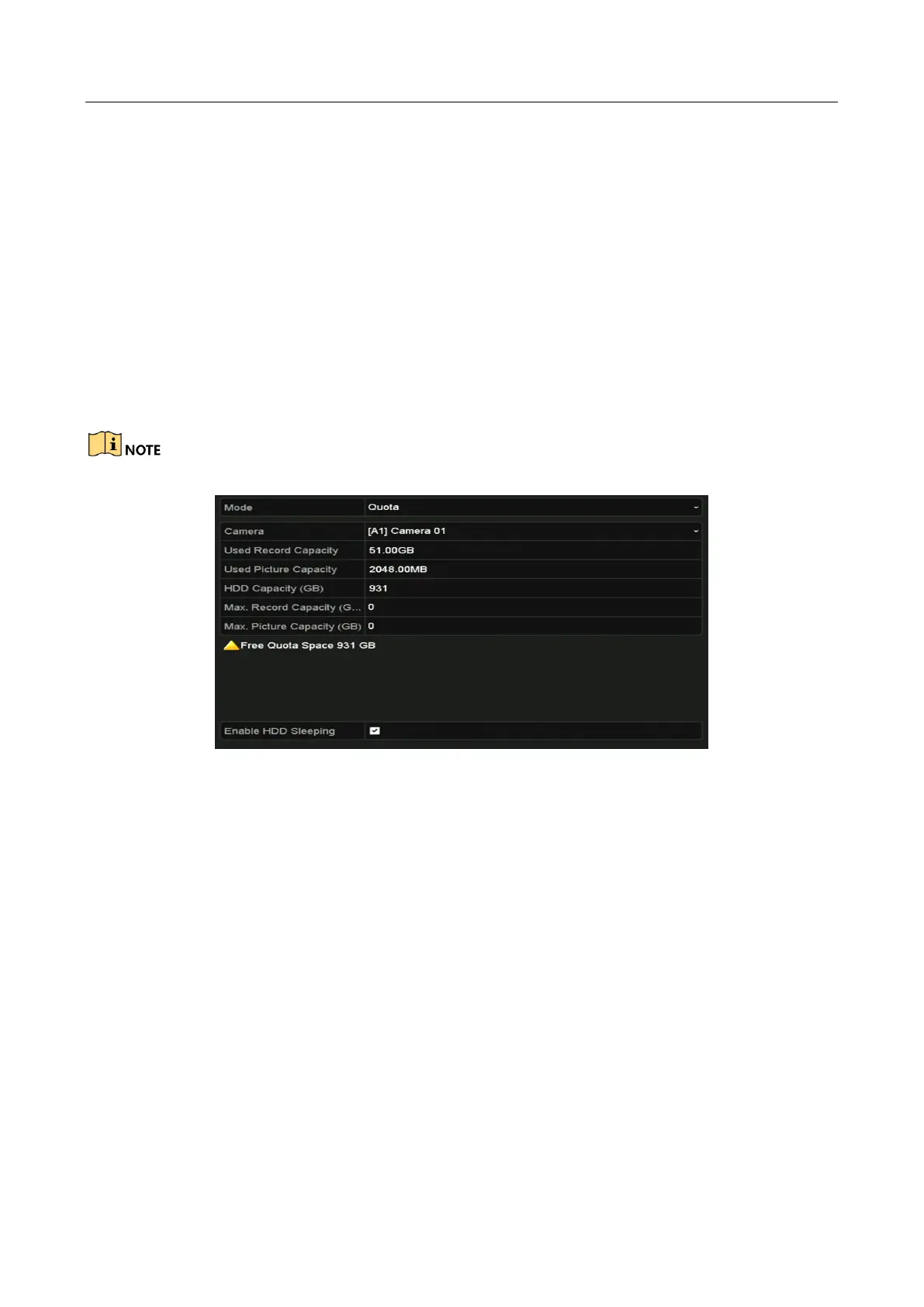

Figure 13-16 Storage Mode Settings Interface
Step 3 Select a camera for which you want to configure quota.
Step 4 Enter the storage capacity in the text field of Max. Record Capacity (GB).
Step 5 You can copy the quota settings of the current camera to other cameras if required. Click
the Copy button to enter the Copy Camera interface, as shown below.

HIKVISION DS-7216HQHI-K2 Specifications

General

Ethernet LAN	Yes
Number of users	128 user(s)
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Product color	Black
Channels quantity	16 channels
Maximum frame rate	30 fps
Video capturing speed	25 fps
Audio formats supported	G.711
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
BNC input ports	16
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Number of HDDs supported	2

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	380 x 320 x 48 mm
