HIKVISION DS-7216HQHI-K2 User Manual

Digital Video Recorder User Manual
35

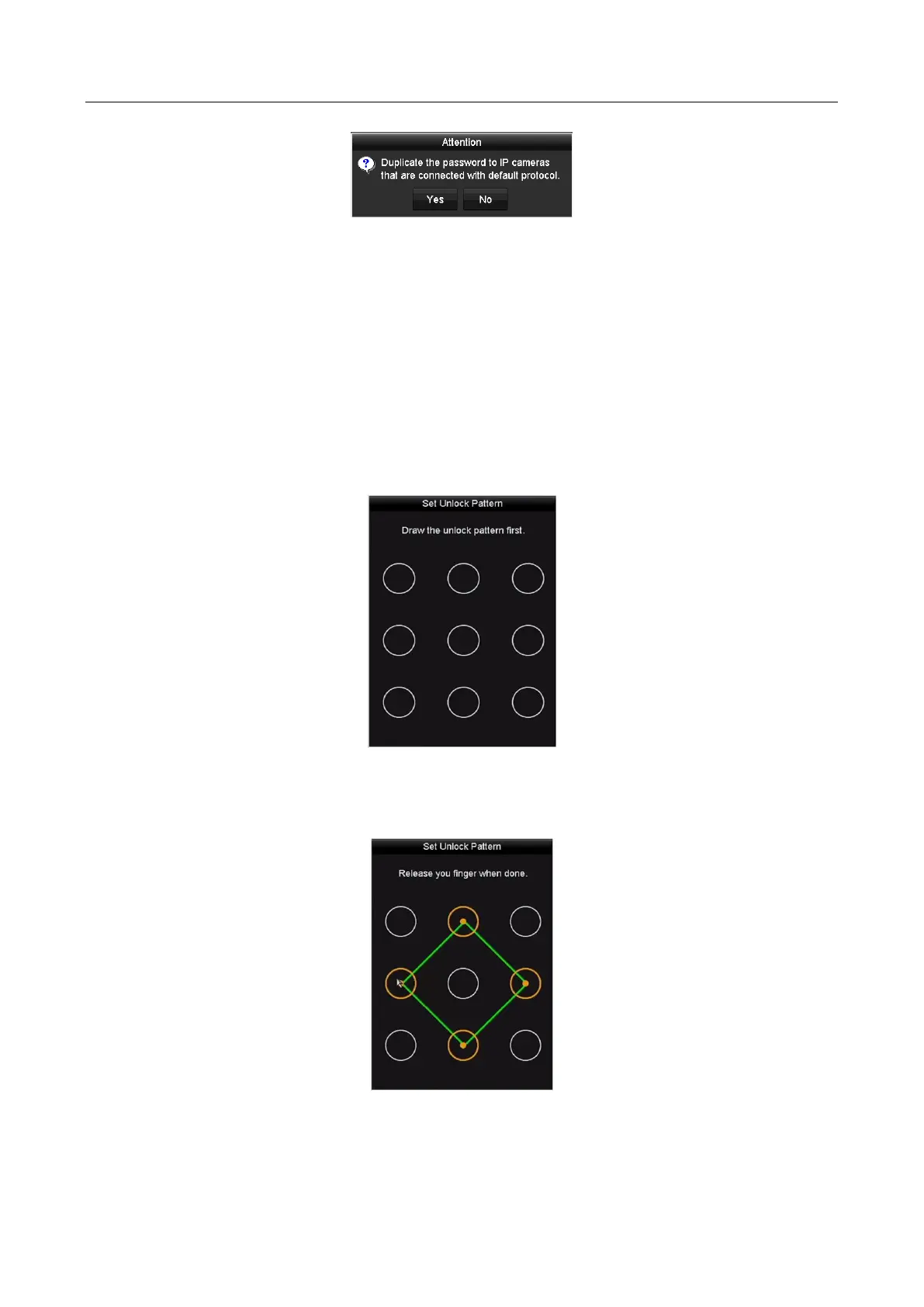

Figure 2-7 Duplicate the Password
2.3 Using the Unlock Pattern for Login
Purpose
For the admin, you can configure the unlock pattern for device login.
2.3.1 Configuring the Unlock Pattern
After the device is activated, you can enter the following interface to configure the device unlock
pattern.
Figure 2-8 Set Unlock Pattern
Step 1 Use the mouse to draw a pattern among the 9 dots on the screen. Release the mouse
when the pattern is done.
Figure 2-9 Draw the Pattern

HIKVISION DS-7216HQHI-K2 Specifications

General

Ethernet LAN	Yes
Number of users	128 user(s)
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Product color	Black
Channels quantity	16 channels
Maximum frame rate	30 fps
Video capturing speed	25 fps
Audio formats supported	G.711
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
BNC input ports	16
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Number of HDDs supported	2

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	380 x 320 x 48 mm
