HIKVISION DS-7216HQHI-K2 User Manual

Digital Video Recorder User Manual
160

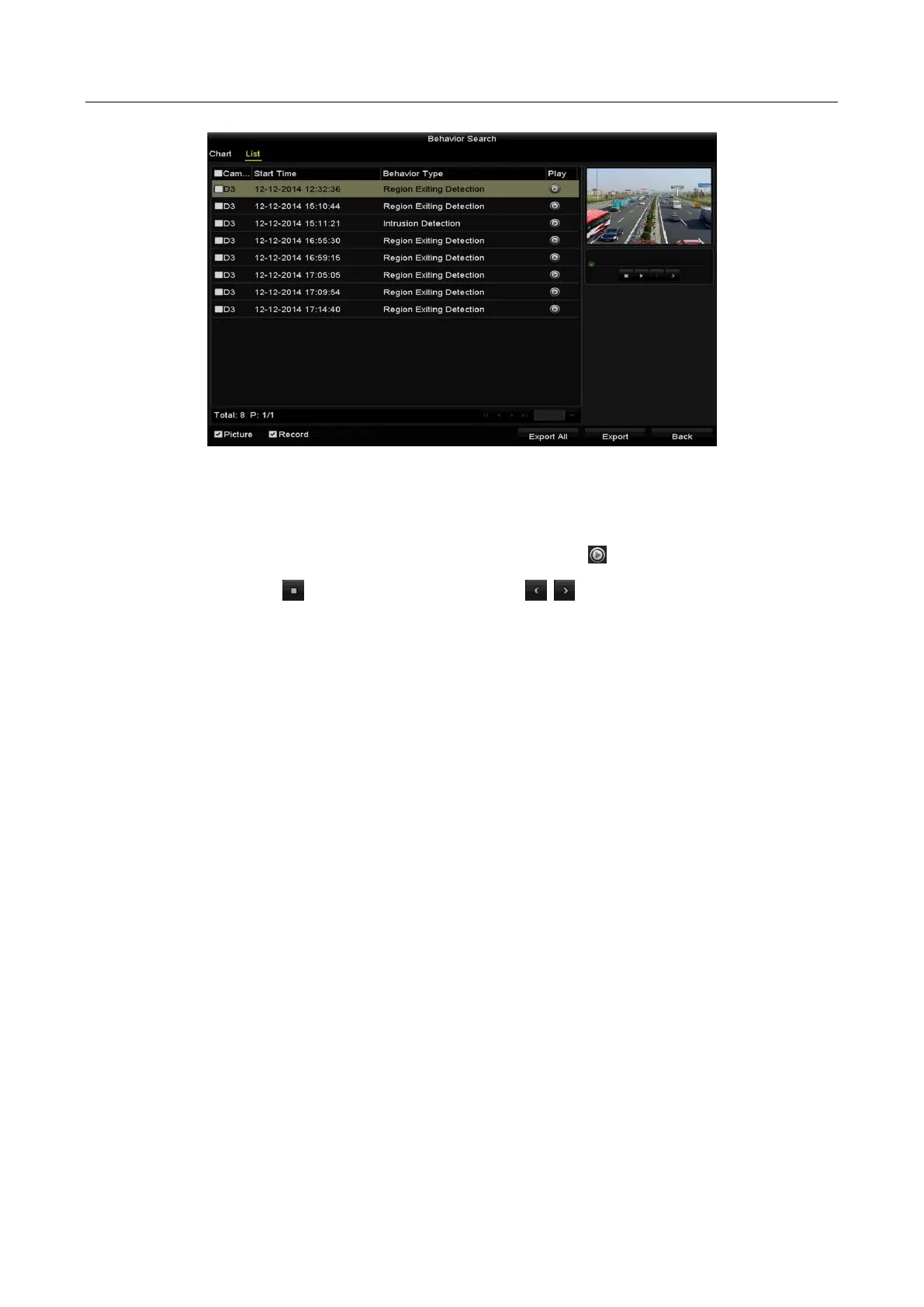

Figure 11-5 Behavior Search Results
Step 6 Play the behavior analysis picture related video file.
You can double click on a picture from the list to play its related video file in the view
window on the top right, or select a picture item and click to play it.
You can also click to stop the playing, or click / to play the previous/next file.
Step 7 If you want to export the captured pictures to local storage device, connect the storage
device to the device and click Export All to enter the Export interface.
Click Export to export all pictures to the storage device.
11.3 Plate Search
Purpose
You can search and view the matched captured vehicle plate picture and related information
according to the plate searching conditions including the start time/end time, country and plate
No.
Step 1 Go to Menu > VCA Search > Plate Search.
Step 2 Select the camera (s) for the plate search.
Step 3 Specify the start time and end time for searching the matched plate pictures.

HIKVISION DS-7216HQHI-K2 Specifications

General

Ethernet LAN	Yes
Number of users	128 user(s)
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Product color	Black
Channels quantity	16 channels
Maximum frame rate	30 fps
Video capturing speed	25 fps
Audio formats supported	G.711
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
BNC input ports	16
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Number of HDDs supported	2

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	380 x 320 x 48 mm
