HIKVISION DS-7216HQHI-K2 User Manual

Digital Video Recorder User Manual
81

The DVR supports continuous, alarm, motion, motion | alarm, motion & alarm, and event
triggered recording types.

In this chapter, we take the record schedule procedure as an example, and the same
procedure can be applied to configure schedule for recording.
Purpose
Set the record schedule, and then the camera will automatically start/stop recording according to
the configured schedule.
Step 1 Go to Menu > Record > Schedule.

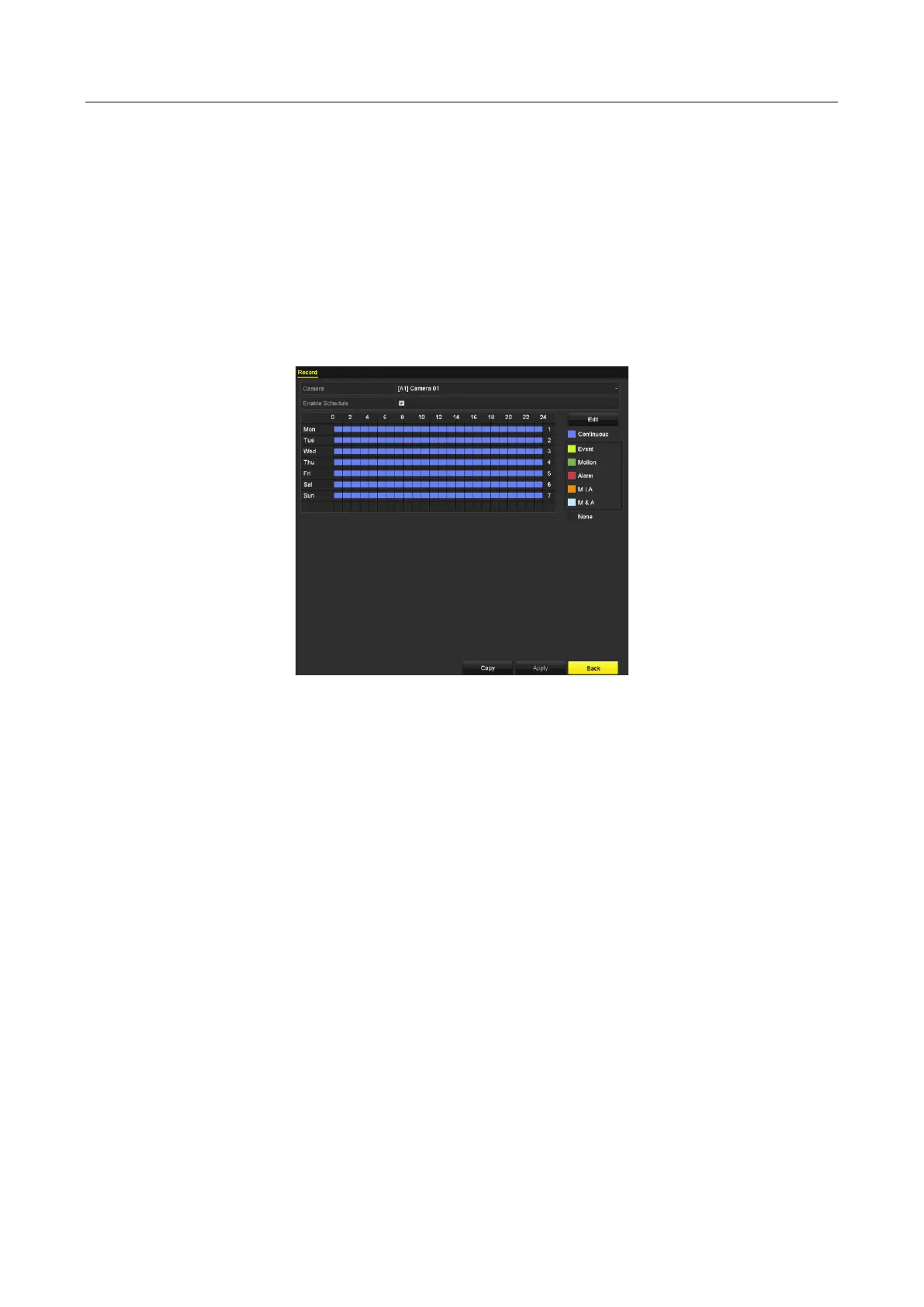

Figure 5-7 Record Schedule
Different recording types are marked in different color icons.
Continuous: scheduled recording.
Event: recording triggered by all event triggered alarm.
Motion: recording triggered by motion detection.
Alarm: recording triggered by alarm.
M/A: recording triggered by either motion detection or alarm.
M&A: recording triggered by motion detection and alarm.
Step 2 Choose the camera you want to configure in the Camera drop-down list.
Step 3 Check the checkbox of Enable Schedule.
Step 4 Configure the record schedule.
Edit the schedule
1) Click Edit.

HIKVISION DS-7216HQHI-K2 Specifications

General

Ethernet LAN	Yes
Number of users	128 user(s)
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Product color	Black
Channels quantity	16 channels
Maximum frame rate	30 fps
Video capturing speed	25 fps
Audio formats supported	G.711
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
BNC input ports	16
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Number of HDDs supported	2

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	380 x 320 x 48 mm
