HIKVISION DS-7600NI-K1/W Series User Manual

Network Video Recorder User Manual
74
4) Click Edit button or click on the color icon under the edit button and draw the schedule
line on the panel.
● Edit the schedule
The all-day continuous recording is configured for the device by factory default.
I. In the message box, you can choose the day to which you want to set schedule.

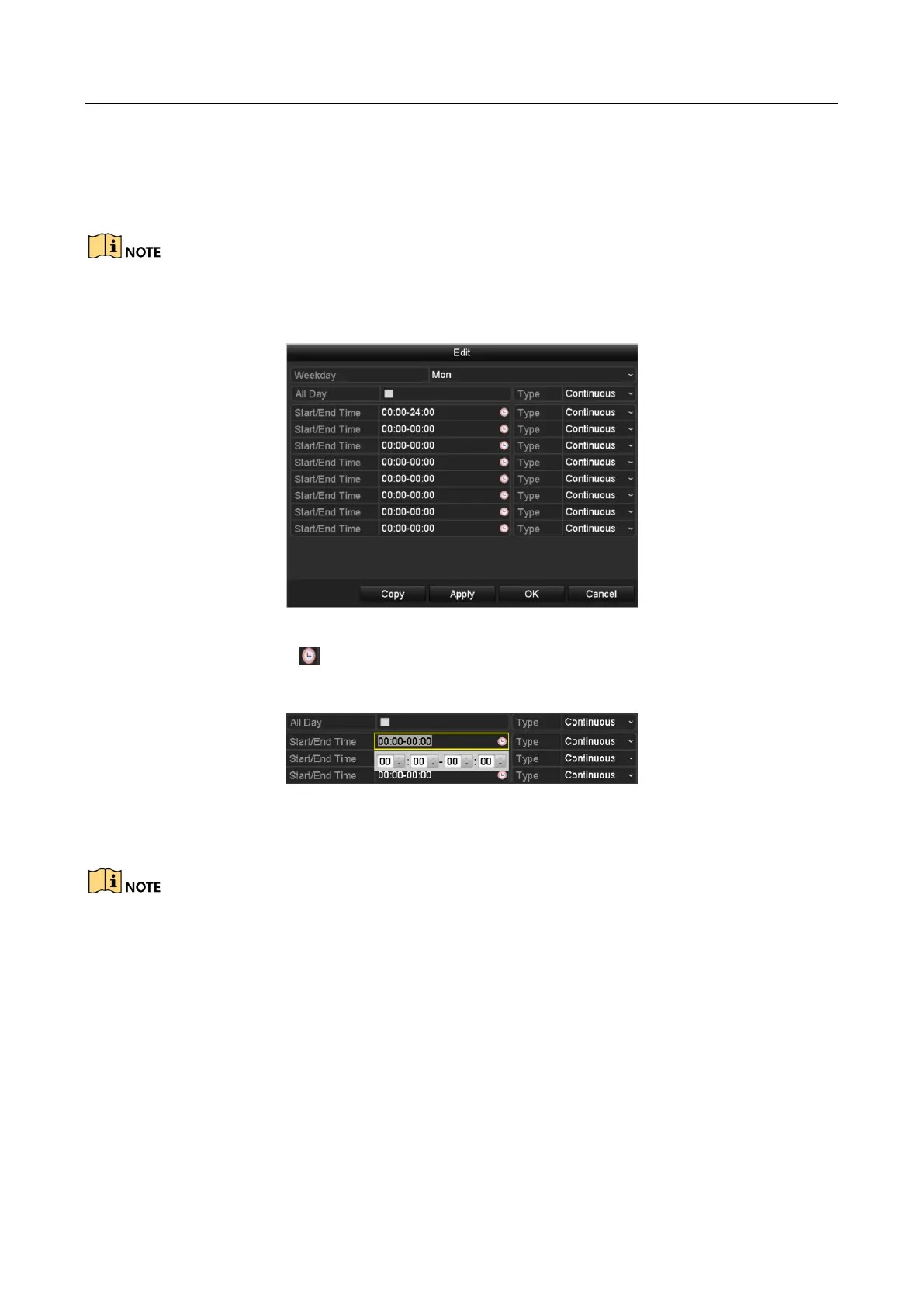

Figure 5-6 Recording Schedule Interface
You can click the button to set the accurate time of the schedule.
II. To schedule an all-day recording, check the checkbox after the All Day item.
Figure 5-7 Edit Schedule
III. To arrange other schedule, set the Start/End time for each period.
Up to 8 periods can be configured for each day. And the time periods can’t be overlapped each
other.
IV. Select the record type in the dropdown list.
