HIKVISION DS-7600NI Series User Manual

User Manual of DS-7600NI Series NVR
153
10.7 Configuring HDD Error Alarms
Purpose:
You can configure the HDD error alarms when the HDD status is Uninitialized or Abnormal.
Steps:
1. Enter the Exception interface.
Menu > Configuration > Exceptions
2. Select the Exception Type to HDD Error from the dropdown list.
3. Click the checkbox(s) below to select the HDD error alarm type (s), as shown in Figure 10. 22.
Note: The alarm type can be selected to: Audio Warning, Notify Surveillance Center, Send Email and
Trigger Alarm Output. Please refer to Chapter Setting Alarm Response Actions.

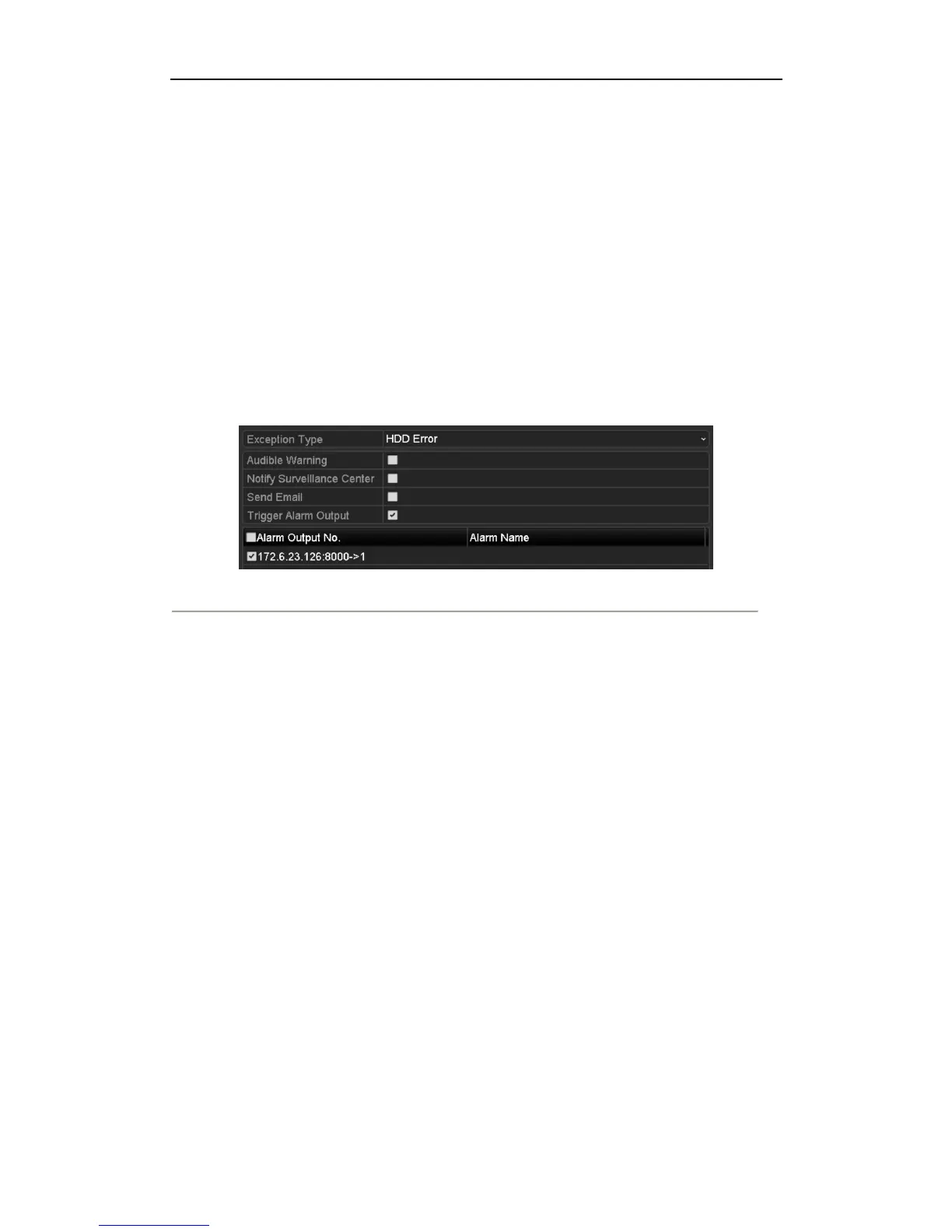

Figure 10. 22 Configure HDD Error Alarm
4. When the Trigger Alarm Output is selected, you can also select the alarm output to be triggered from the list
below.
5. Click the Apply button to save the settings

HIKVISION DS-7600NI Series Specifications

General

Brand	HIKVISION
Model	DS-7600NI Series
Category	Network Hardware
Language	English
