HIKVISION DS-7600NI Series

User Manual of DS-7600NI Series NVR
21

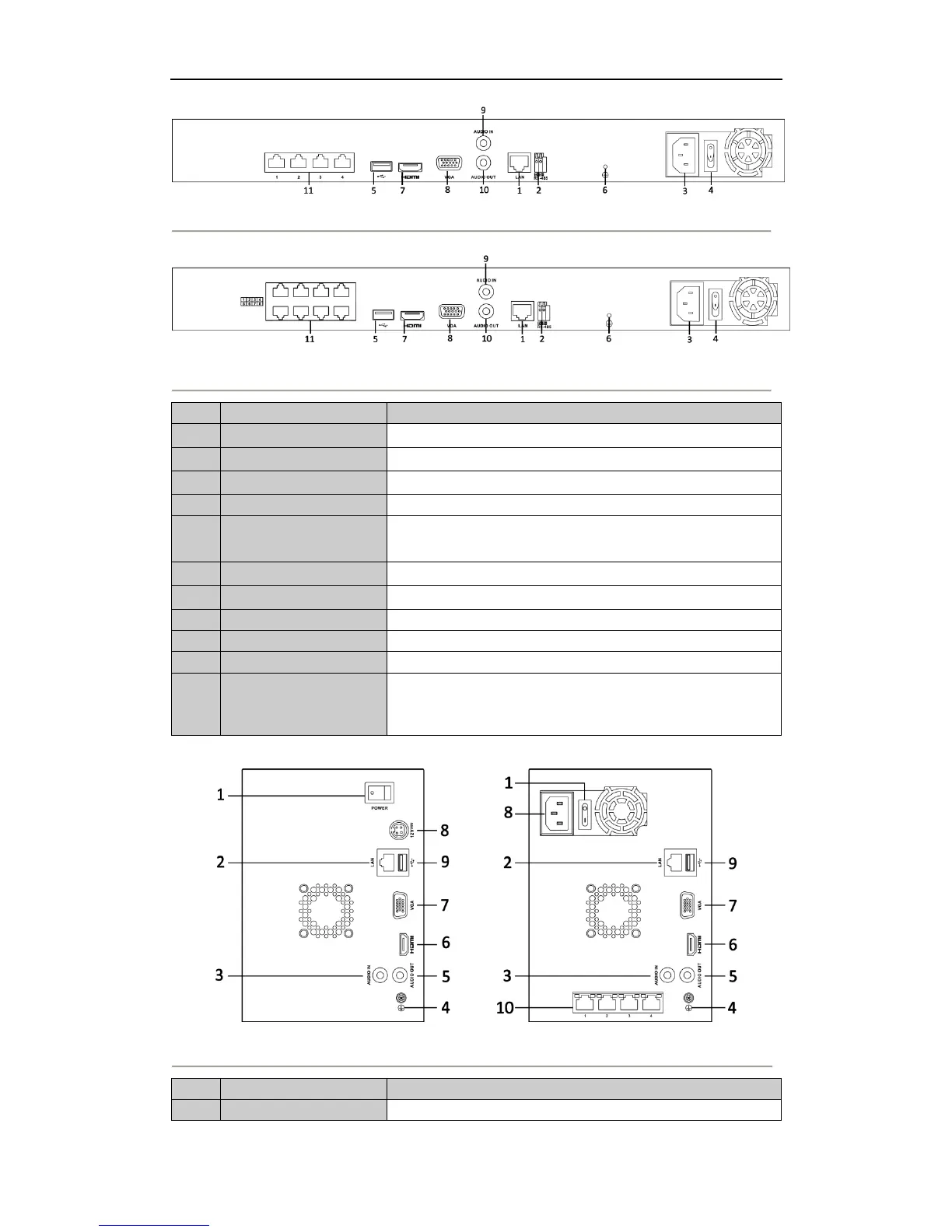

Figure 1. 8 DS-7604&7608NI-SE/P
Figure 1. 9 DS-7616NI-SE/P
No.
Item
Description
1
LAN Network Interface
Connector for LAN (Local Area Network).
2
RS-485 Interface
Connects to RS-485 devices.
3
Power Supply
100~240VAC power supply
4
Power Switch
Switch for turning on/off the device.
5
USB Interface
Universal Serial Bus (USB) ports for additional devices such as USB
mouse and USB Hard Disk Drive (HDD).
6
GND
Ground (needs to be connected when NVR starts up).
7
HDMI Interface
HDMI video output connector.
8
VGA Output
DB9 connector for VGA output. Display local video output and menu.
9
Audio In
RCA connector for voice talk input
10
Audio Out
RCA connector for audio output
11
Network interfaces with
PoE function
(for DS-7600NI-SE/P)
Network interface for the cameras and to provide power over Ethernet.
Figure 1.8 DS-7600NI-V Figure 1.9 DS-7600NI-VP
No.
Item
Description
1
Power Switch
Switch for turning on/off the device.
