HIKVISION DS-7604 User Manual

14
7
VGA
DB15 connector for VGA output. Display local video output and menu
8
RS-485 Interface
Connector for RS-485 devices. T+, T- pin connects to PTZ
ALARM IN
Connector for alarm input (up to 4 alarm inputs)
ALARM OUT
Connector for alarm output (1 alarm output)
9
POWER
Switch for turn on/off the device
10
12V
12VDC power supply
11
GND
Ground(needs to be connected when DVR startup)

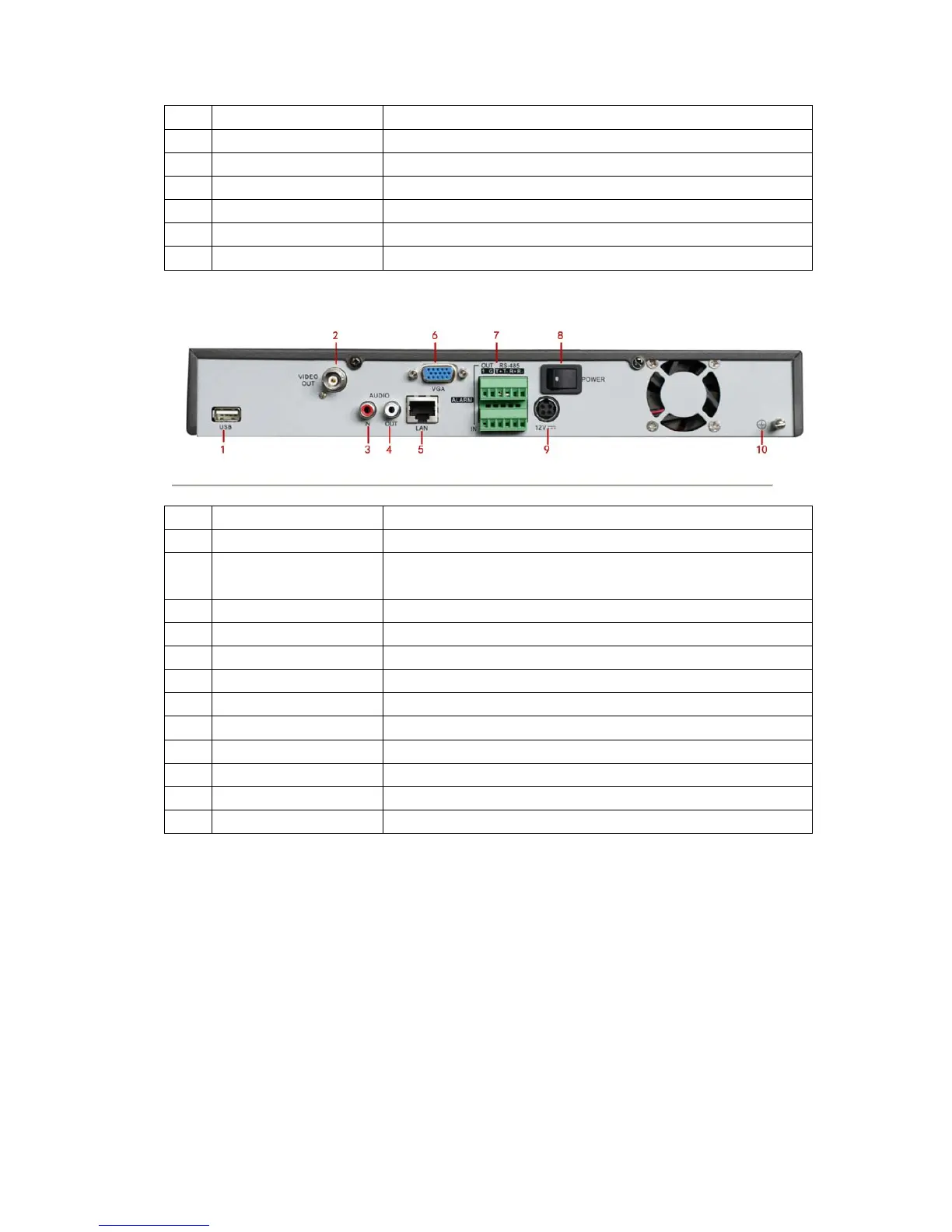

Figure10. Rear Panel of DS-7604NI-S
No.
Item
Description
1
USB Interface
Connector for USB devices
2
VIDEO OUT
BNC connector for video output. If VGA output has been connected, then the
VIDEO OUT port provides no output
3
AUDIO IN
RCA connectors for analog audio input
4
AUDIO OUT
RCA connector for audio output
5
LAN
Connector for LAN (Local Area Network)
6
VGA
DB15 connector for VGA output. Display local video output and menu
7
RS-485 Interface
Connector for RS-485 devices. T+, T- pin connects to PTZ
ALARM IN
Connector for alarm input (up to 4 channels)
ALARM OUT
Connector for alarm output (1 channel)
8
POWER
Switch for turn on/off the device
9
12V
12VDC power supply
10
GND
Ground (needs to be connected when DVR startup)
www.cctvireland.ie
shop@cctvireland.ie

HIKVISION DS-7604 Specifications

General

Synchronous Playback	4-ch
Working Temperature	-10 °C to +55 °C (14 °F to 131 °F)
Operating Humidity	10% to 90%
Video Compression	H.264+, H.264
HDMI Output	1
VGA Output	1
Audio Output	1
Hard Disk	1 SATA interface
Network Interface	RJ45 10M/100M self-adaptive Ethernet interface
Network Protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SMTP, UPnP
USB Interface	2 x USB 2.0
Power Supply	12 VDC
Video Input	4-ch
