HIKVISION DS-7604 User Manual

88

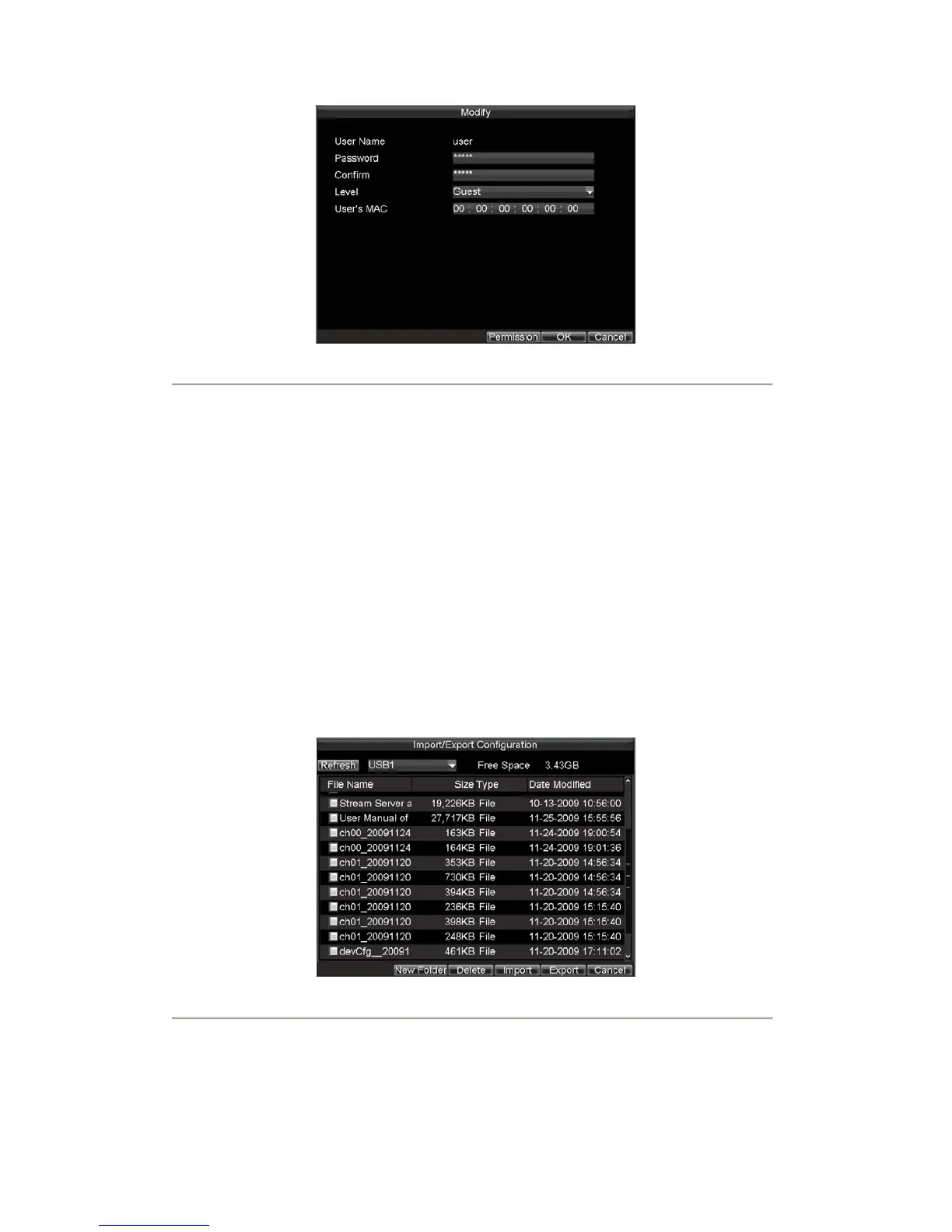

Figure9. Modify User Menu
4. Edit user information.
5. To modify user permissions, click on the privileges button. Permissions settings are defined in
the Adding a New User section described above.
6. Click the OK button to exit menu.
Manage System
Importing & Exporting Configuration
Configuration information from your DVR can be exported to a USB device and imported into another DVR. This
will allow you to efficiently setup the same configuration on numerous DVRs.
To import or export DVR configuration:
1. Click Menu > Maintenance > Configuration to enter the Import/Export Configuration menu,
shown in Figure 10.
Figure10. Import/Export Configuration Menu
2. Click Export to export a configuration file to USB device. USB device must be connected at this
point to the DVR.
3. To import a configuration file, select the file from the USB device and click the Import button.
After the import process is completed, you must reboot the DVR.
4. Click Cancel to exit the current menu.
www.cctvireland.ie
shop@cctvireland.ie

HIKVISION DS-7604 Specifications

General

Synchronous Playback	4-ch
Working Temperature	-10 °C to +55 °C (14 °F to 131 °F)
Operating Humidity	10% to 90%
Video Compression	H.264+, H.264
HDMI Output	1
VGA Output	1
Audio Output	1
Hard Disk	1 SATA interface
Network Interface	RJ45 10M/100M self-adaptive Ethernet interface
Network Protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SMTP, UPnP
USB Interface	2 x USB 2.0
Power Supply	12 VDC
Video Input	4-ch
