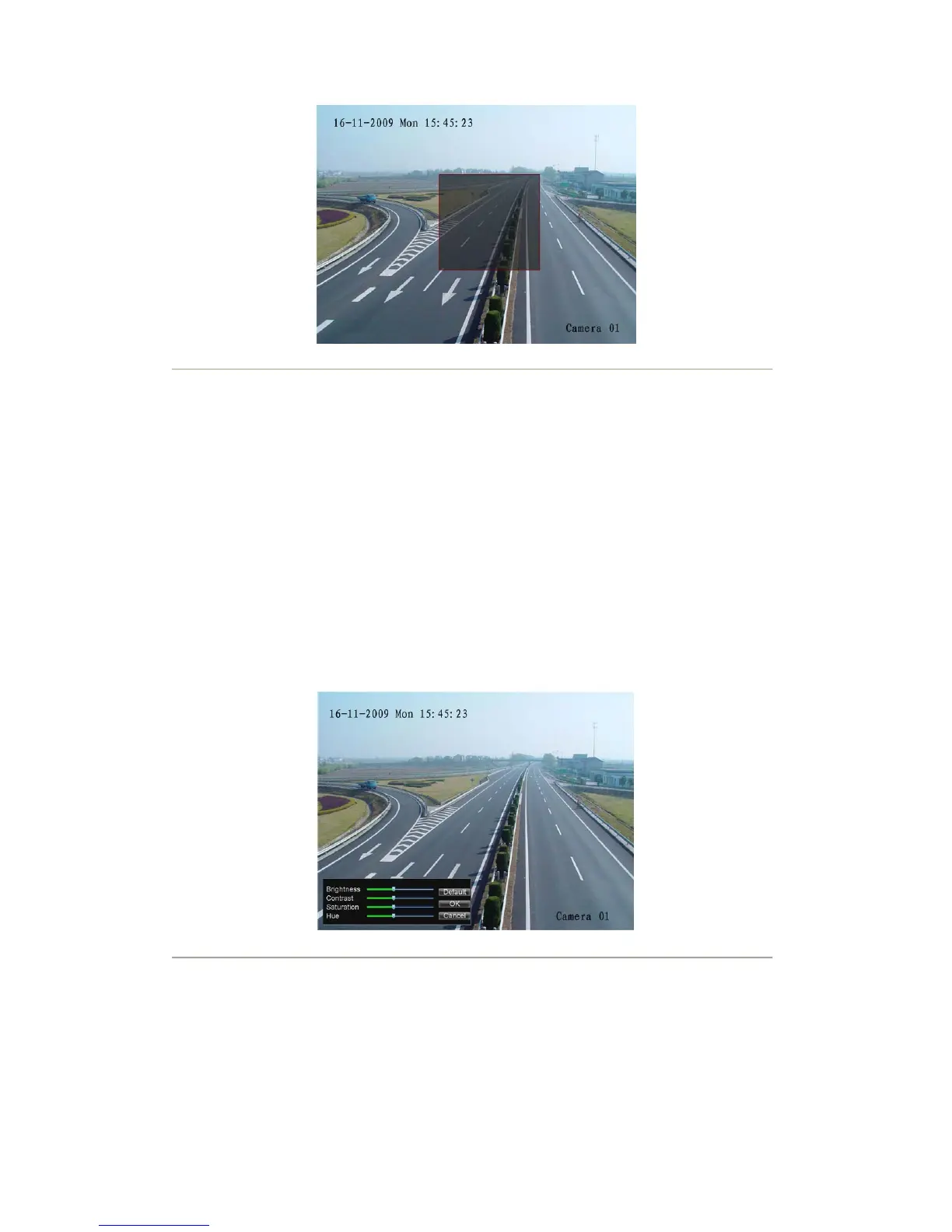

Figure8. Setting Mask Area
6. Select OK to save settings and exit the Mask Area Settings interface.
Adjust Display Settings
Display settings such as the brightness, contrast, saturation and hue can also be adjusted in the Camera
Management menu.
To adjust display settings:
1. Click Menu > Settings > Camera to enter the Camera Settings menu, shown in Figure 1.
2. Select channel to adjust display settings under Channel No., and click the Set button.
Note: DS-7604NI-S/M, DS-7604NI-S and DS-7608NI-S models provide no analog camera
connection; please select IP cameras for configuration.
Select the Advanced tab to enter the Advanced Camera Settings menu, shown in Figure 9.
3. Click the Set button next to the Color Settings label.
4. Adjust the display settings, as shown in Figure 10. Brightness, contrast, saturation and hue can be
adjusted. The adjustments of display settings will affect the live images and the recorded images.
Figure 9. Display Settings
www.cctvireland.ie
shop@cctvireland.ie

HIKVISION DS-7604 Specifications

General

Synchronous Playback	4-ch
Working Temperature	-10 °C to +55 °C (14 °F to 131 °F)
Operating Humidity	10% to 90%
Video Compression	H.264+, H.264
HDMI Output	1
VGA Output	1
Audio Output	1
Hard Disk	1 SATA interface
Network Interface	RJ45 10M/100M self-adaptive Ethernet interface
Network Protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SMTP, UPnP
USB Interface	2 x USB 2.0
Power Supply	12 VDC
Video Input	4-ch
