HIKVISION DS-7604 User Manual

37
1. Enter the Video Search menu by clicking Menu > Video Search.
2. Set the search parameters by selecting cameras to search, video/file type and the start/end time (as
shown in Figure 3).
Note: DS-7604NI-S/M, DS-7604NI-S and DS-7608NI-S models provide no analog camera
connection.

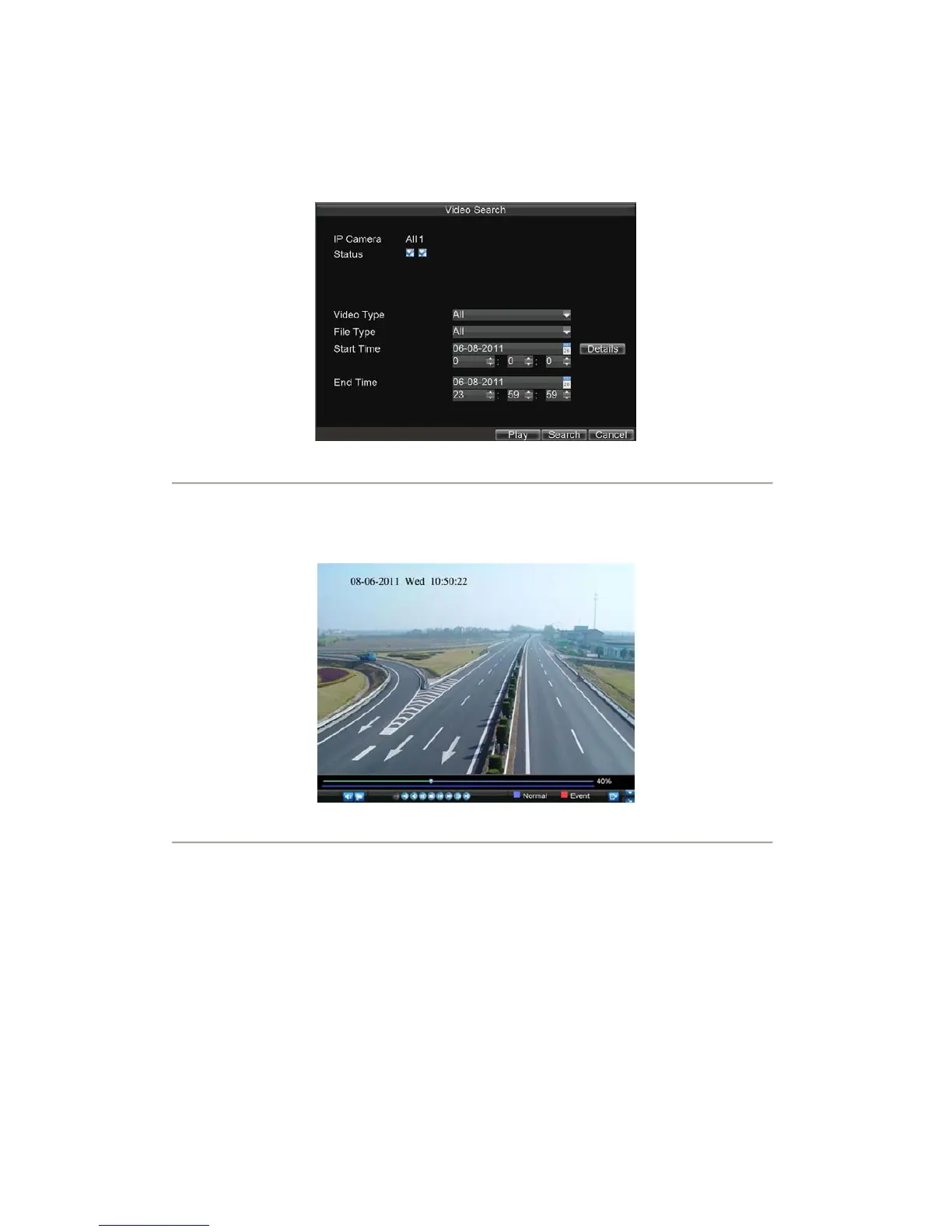

Figure3. Video Search Menu
3. Click the Play button on the front panel to start playback of all the files found, or click the Search
button to access the list of search results. After search results are presented, select the file you
want to play back and press Play button.
4. Record files will automatically be played back in the Playback interface, shown in Figure 4.
Figure4. Playback Interface
Playback by Event Search
To play back files by a video event search:
1. Enter into the Video Search menu by clicking Menu > Event Search
2. Set the search parameters by selecting event type to search, Alarm Input/ Motion Detection and the
start/end time (as shown in Figure 5).
www.cctvireland.ie
shop@cctvireland.ie

HIKVISION DS-7604 Specifications

General

Synchronous Playback	4-ch
Working Temperature	-10 °C to +55 °C (14 °F to 131 °F)
Operating Humidity	10% to 90%
Video Compression	H.264+, H.264
HDMI Output	1
VGA Output	1
Audio Output	1
Hard Disk	1 SATA interface
Network Interface	RJ45 10M/100M self-adaptive Ethernet interface
Network Protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SMTP, UPnP
USB Interface	2 x USB 2.0
Power Supply	12 VDC
Video Input	4-ch
