HIKVISION DS-7604 User Manual

53
7. Select the Schedule tab. Set the schedule when you want video loss detection to be enabled.
Schedule can be set for all week or any day of the week with up to 8 time periods per day.
8. Click Apply to finish the settings.
9. Repeat above steps to configure settings for other channels.
Detecting Video Tampering
The video tampering (i.e. moving camera to a different position) can also be detected and set to trigger an action
on your DVR. To set up video tempering detection:
1. Click Menu > Settings >Camera Management menu, shown in Figure 15.

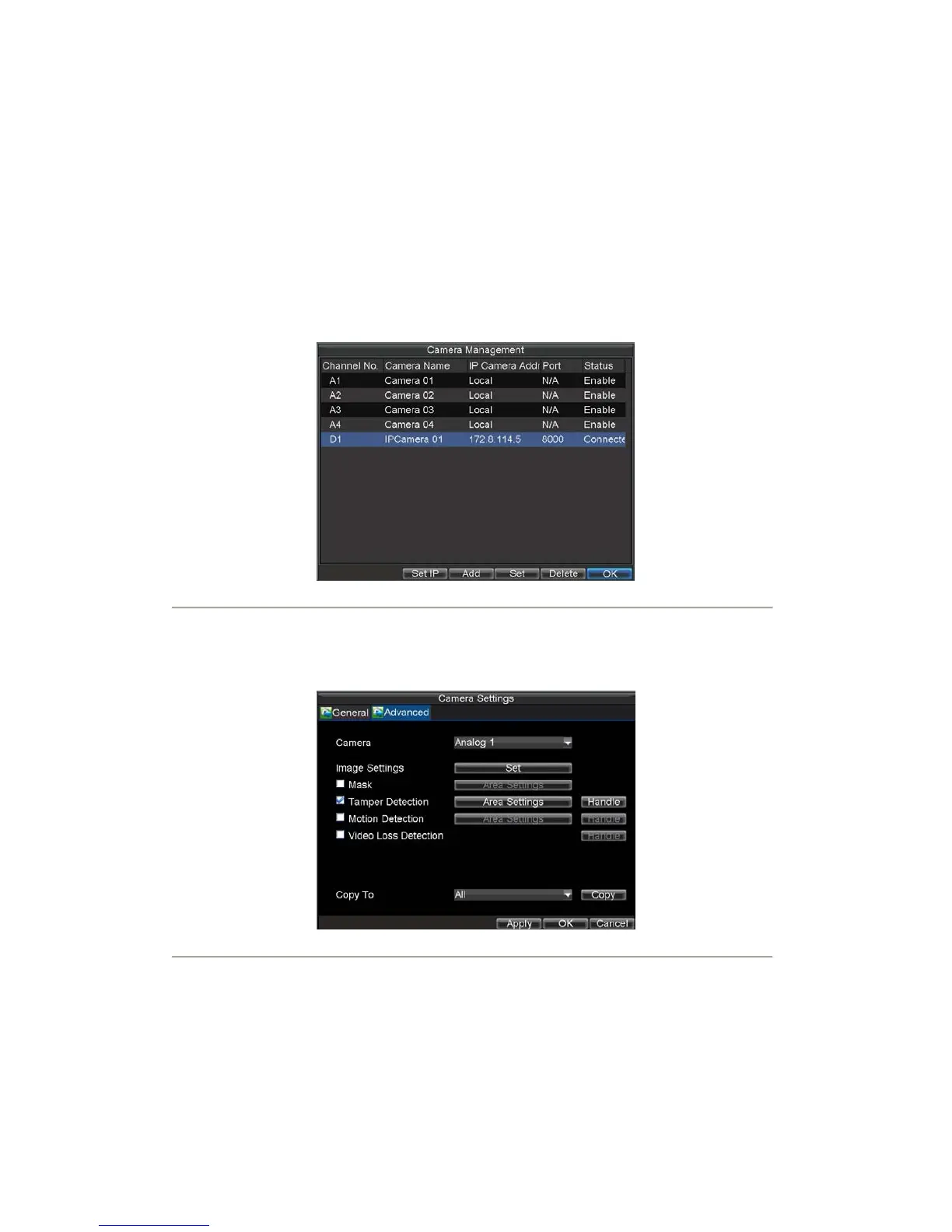

Figure15. Camera Management Menu
2. Select camera under Channel No. to configure tamper detection and click the Set button.
3. Select the Advanced tab.
4. Check the Tamper Detection checkbox, as shown in Figure 16.
Figure16. Camera Settings Menu
5. Click the Area Settings button to enter the area settings menu.
6. Set tampering area, as shown in Figure 17. Only one tampering area can be set, with the full
screen being the maximum area.
www.cctvireland.ie
shop@cctvireland.ie

HIKVISION DS-7604 Specifications

General

Synchronous Playback	4-ch
Working Temperature	-10 °C to +55 °C (14 °F to 131 °F)
Operating Humidity	10% to 90%
Video Compression	H.264+, H.264
HDMI Output	1
VGA Output	1
Audio Output	1
Hard Disk	1 SATA interface
Network Interface	RJ45 10M/100M self-adaptive Ethernet interface
Network Protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SMTP, UPnP
USB Interface	2 x USB 2.0
Power Supply	12 VDC
Video Input	4-ch
