HIKVISION DS-7604 User Manual

19
input password whenever you enter the menu, you can disable password.
8. Enter the correct date and time under System Time. Click the Apply button to save the setting.
9. Select the DST Settings tab to enable DST, and More Settings to change device name and number,
shown in Figure5.

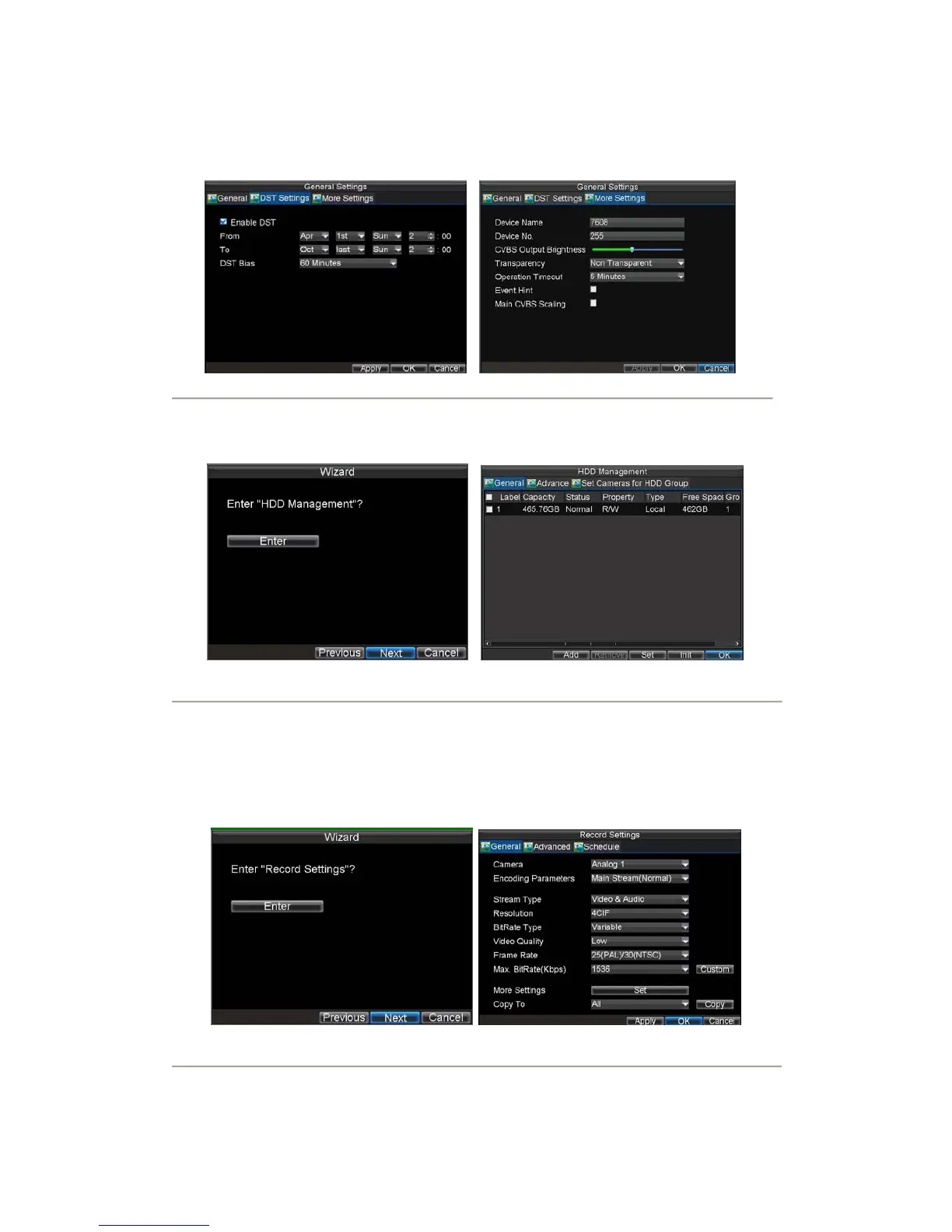

Figure5. General Settings-DST & More Settings
10. Click OK to return to the Setup Wizard window.
11. Click Next button to enter the HDD Management dialog box, shown in Figure 6.
Figure6. HDD Management
12. To access HDD management interface, click the Enter button.
13. If a new HDD has been recently installed, select the HDD from the list to initialize it. Initializing
the HDD will format and remove all data from it.
14. After the HDD has been initialized, click the OK button which will take you back to the Setup
Wizard window.
15. Click Next button to enter the Record Settings dialogue box, as shown in Figure 7.
Figure7. Record Settings
16. To access Record Settings interface, click the Enter button.
17. Select the Schedule tab, shown in Figure 8.
www.cctvireland.ie
shop@cctvireland.ie

HIKVISION DS-7604 Specifications

General

Synchronous Playback	4-ch
Working Temperature	-10 °C to +55 °C (14 °F to 131 °F)
Operating Humidity	10% to 90%
Video Compression	H.264+, H.264
HDMI Output	1
VGA Output	1
Audio Output	1
Hard Disk	1 SATA interface
Network Interface	RJ45 10M/100M self-adaptive Ethernet interface
Network Protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SMTP, UPnP
USB Interface	2 x USB 2.0
Power Supply	12 VDC
Video Input	4-ch
