User Manual of Network Video Recorder
109
8.1 Setting Motion Detection Alarm
Steps:
1. Enter Motion Detection interface of Camera Management and choose a camera you want to set up motion
detection.
Menu > Camera > Motion
2. Set up detection area and sensitivity.
Tick Enable Motion Detection, and use the mouse to draw detection area(s) and drag the sensitivity bar to
set sensitivity.
By default, the motion detection is enabled and configured in full screen.
Click button and set alarm response actions.

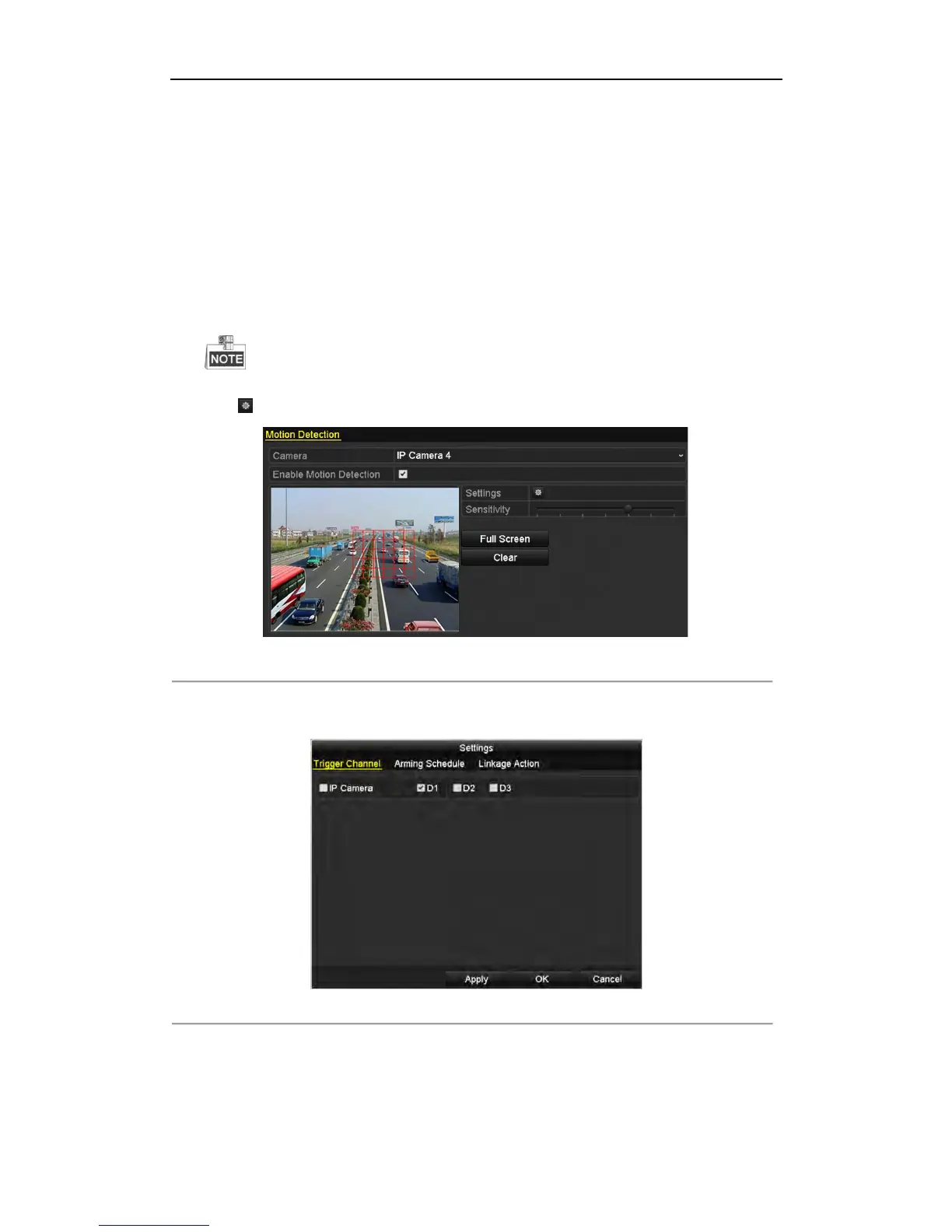

Figure 8. 1 Motion Detection Setup Interface
3. Click Trigger Channel tab and select one or more channels which will start to record or become full-screen
monitoring when motion alarm is triggered, and click Apply to save the settings.
Figure 8. 2 Set Trigger Camera of Motion Detection
4. Set up arming schedule of the channel.
1) Select Arming Schedule tab to set the arming schedule of handling actions for the motion detection.
2) Choose one day of a week and up to eight time periods can be set within each day.
3) Click Apply to save the settings
