User Manual of Network Video Recorder
177
12.6 HDD Detection
Purpose:
The device provides the HDD detection function such as the adopting of the S.M.A.R.T. and the Bad Sector
Detection technique. The S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) is a monitoring
system for HDD to detect and report on various indicators of reliability in the hopes of anticipating failures.
S.M.A.R.T. Settings
Steps:
1. Enter the S.M.A.R.T Settings interface.
Menu > Maintenance >HDD Detect
2. Select the HDD to view its S.M.A.R.T information list, as shown in Figure 12. 21.

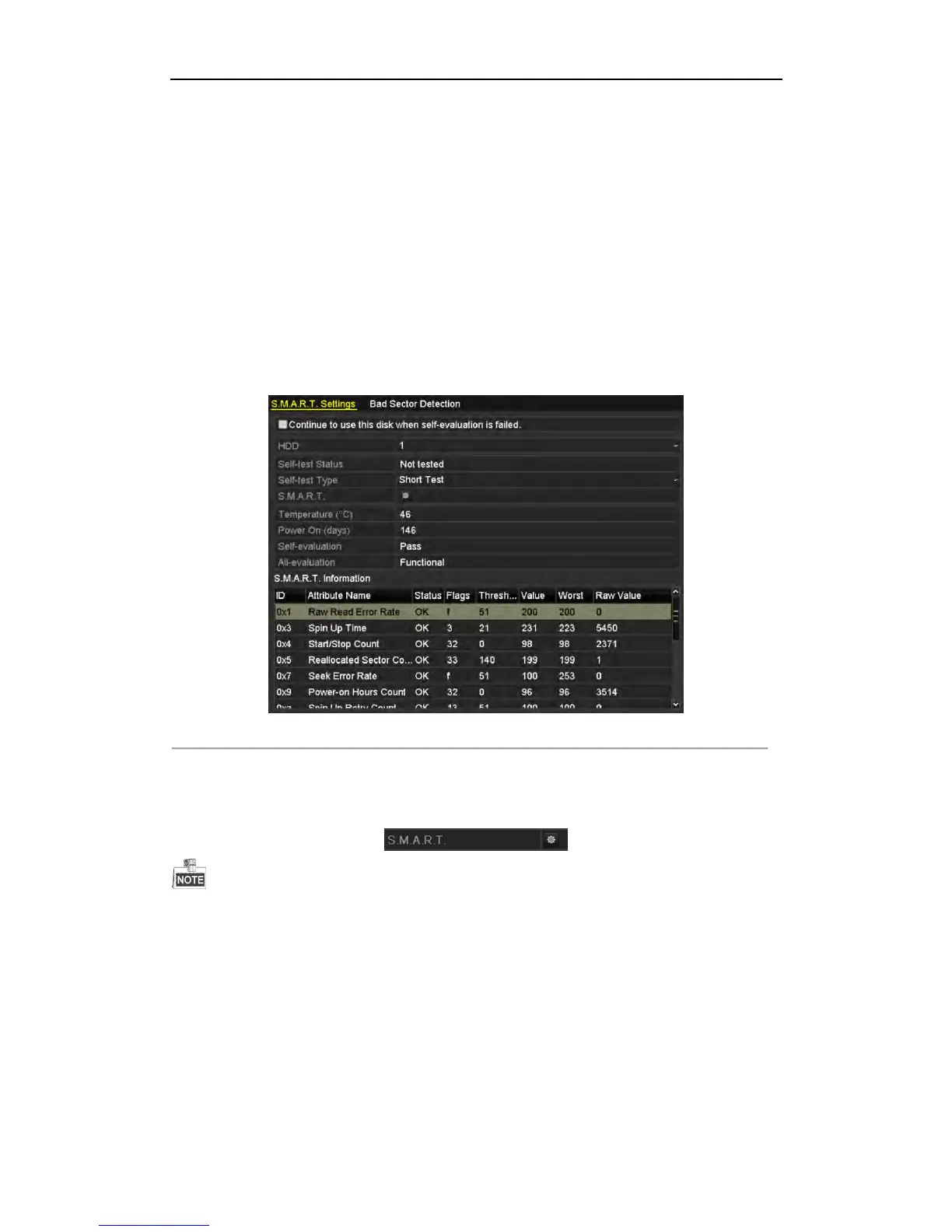

Figure 12. 21 S.M.A.R.T Settings Interface
The related information of the S.M.A.R.T. is shown on the interface.
You can choose the self-test types as Short Test, Expanded Test or the Conveyance Test.
Click the start button to start the S.M.A.R.T. HDD self-evaluation.
If you want to use the HDD even when the S.M.A.R.T. checking is failed, you can check the checkbox of the
Continue to use the disk when self-evaluation is failed item.
Bad Sector Detection
Steps:
1. Click the Bad Sector Detection tab.
2. Select the HDD No. in the dropdown list you want to configure, and choose All Detection or Key Area
Detection as the detection type.
3. Click the Detect button to start the detection.

Table of Contents

Other manuals for HIKVISION DS-7604NI-E1

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7604NI-E1 and is the answer not in the manual?

HIKVISION DS-7604NI-E1 Specifications

General IconGeneral
Maximum frame rate60 fps
Maximum resolution1920 x 1080 pixels
Video input channels4 channels
Supported resolutions1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
Video formats supportedH.264+
HDMI outputYes
Card reader integratedNo
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports1
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Product colorBlack
Rack capacity1U
Output voltage12 V
Power consumption (typical)10 W
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
HDD capacity- GB
HDD interfaceSerial ATA
Maximum storage capacity4 TB
Number of HDDs installed0
Weight and Dimensions IconWeight and Dimensions
Depth230 mm
Width315 mm
Height45 mm
Weight1000 g
