User Manual of Network Video Recorder
91
Button
Operation
Button
Operation
Button
Operation
Save the clips
Process bar
/
Scaling up/down the
time line

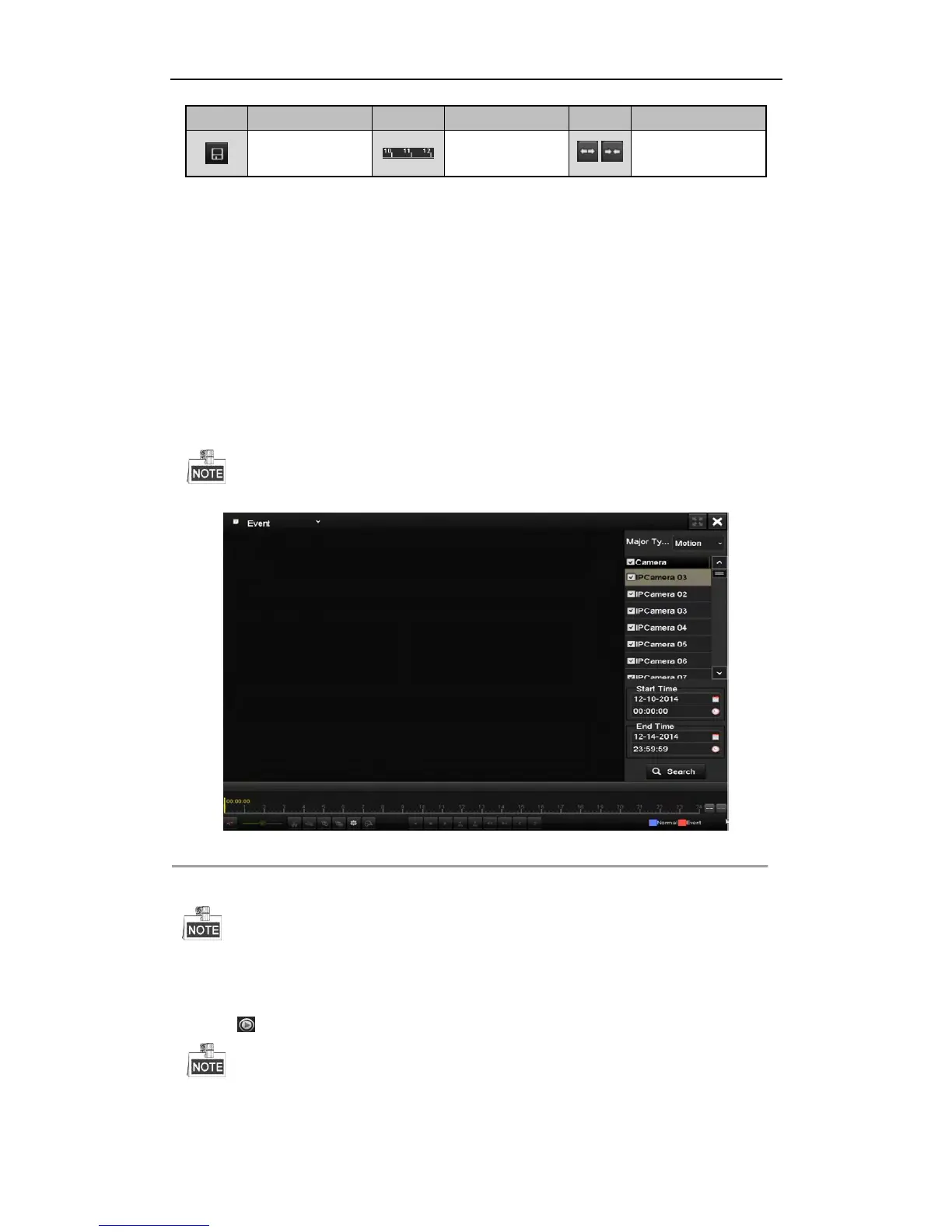

6.1.3 Playing Back by Event Search
Purpose:
Play back record files on one or several channels searched out by event type (e.g., alarm input, motion detection
and VCA).
Steps:
1. Enter the Playback interface.
Menu > Playback
2. Select the Event in the drop-down list on the top-left side.
3. Select Alarm Input, Motion or VCA as the event type.
Here we take playback by VCA as the example.
Figure 6. 6 Motion Search Interface
4. Select the minor type of VCA from the drop-down list.
For configuring the VCA recording, please refer to Chapter 5.5 Configuring VCA Event Recording.
5. Select the camera (s) for searching, and set the Start time and End time.
6. Click Search button to get the search result information. You may refer to the right-side bar for the result.
7. Click button to play back the file.
Pre-play and post-play can be configured.
8. Playback interface.
